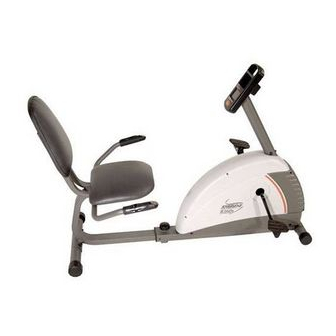

Stamina Magnetic Resistance Recumbent Bike 15-4760 Owner's Manual

Stamina products, inc 15-4760 magnetic resistance recumbent bike owner's bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

CAUTION:
Weight on this product should not exceed 250 lbs.
2007, 10
This Product is Produced Exclusively by
2040 N. Alliance, Springfield, MO 65803
Customer Service Number
1 (800) 375-7520
www.staminaproducts.com
Owner's
Manual
WARNING
Exercise can present a health
risk. Consult a physician
before beginning any exercise
program with this equipment.
If you feel faint or dizzy,
immediately discontinue use
of this equipment. Serious
bodily injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur if
all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
tightened prior to each use.
Follow all safety instructions in
this manual.
When calling for parts or
service, please specify the
following number.
15-4760
STAMINA PRODUCTS
MADE IN CHINA
Product May Vary Slightly
From Pictured.
2007 Stamina Products, Inc.
