STA-RITE SR-4000 Owner's Manual

Chemical feed system
Hide thumbs

Advertisement

Quick Links

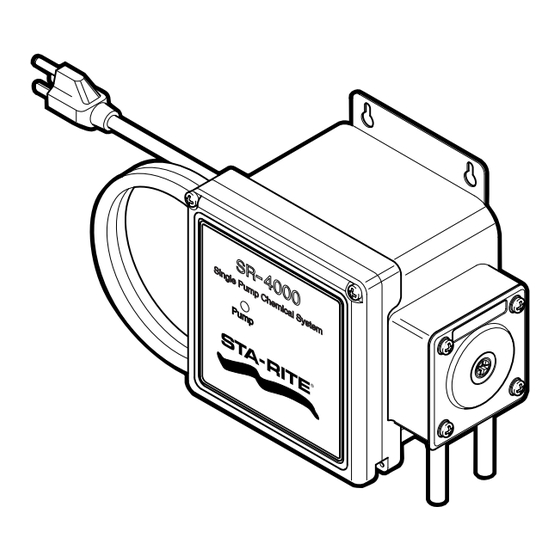

SR-4000
Single Pump Chemical System
With Interval Timer
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
North America: 800-752-0183, FAX 800-582-2217
International: 262-728-5551, FAX: 262-728-4461, TELEX: ITT 4970245
www.sta-ritepool.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2003, Sta-Rite Industries, Inc.
Chemical Feed System
O
W
N
E
R '
3965 0501
INSTALLATION, OPERATION & PARTS
S
M
A
N
Dual Pump Chemical System
Printed in U.S.A.
U
A
L
SR-6000
With Interval Timer
This manual should be furnished to
the end user of this system; its use will
reduce service calls and chance of
injury and will lengthen system life.
S386 (Rev. 1/2/03)

Advertisement

loading

  Related Manuals for STA-RITE SR-4000

No related manuals

  Summary of Contents for STA-RITE SR-4000

  • Page 1 North America: 800-752-0183, FAX 800-582-2217 International: 262-728-5551, FAX: 262-728-4461, TELEX: ITT 4970245 www.sta-ritepool.com Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA © 2003, Sta-Rite Industries, Inc. R ’ 3965 0501 INSTALLATION, OPERATION & PARTS Printed in U.S.A.
  • Page 2: Table Of Contents

    The SR-4000 is a single pump system. The SR-6000 is a dual pump system, with a separate control board for each pump.
  • Page 3: Application

    Injecting into pressurized lines up to 30 PSI is possible without special considerations. The SR-4000 and SR-6000 can also be set on a continuous setting and cycled by an automatic controller. Risk of chemical burns and explosion.
  • Page 4: Pca Control Layout

    The controls described in this manual refer to the compo- nents on the Printed Circuit Assembly (PCA). The PCA is mounted on the inside of the door of the SR-4000/ SR-6000. To determine the location of these controls on the PCA, please refer to Figure 4.
  • Page 5: Control Description

    Determine the injections per day required and the duration time of each injection by using the chart on Page 4. EXAMPLE 1: 6 doses per day at 25 seconds each will de- liver 15 ounces per day. EXAMPLE 2: 8 doses per day at 60 seconds each will de- liver 48 ounces per day.
  • Page 6 Calibration may be required to determine actual flow with each installation. Calibration The SR-4000/SR-6000 have a nominal flow rate of 6 fluid ounces per minute per pump (@60 RPM). When pumping into an open or non-pressurized location, the actual pump flow can be measured at the output point by pumping ac- tual product into a container of a known volume.
  • Page 7: Maintenance

    Pump Speed Adjustment The pump speed potentiometer allows for speed adjust- ment. The pump is factory set with the knob turned as far as it will go clockwise ( ) for maximum speed (60 RPM). Adjust the interval and duration settings, rather than the pump speed setting, to meet daily requirements.
  • Page 8: Repair Parts

    SR-4000 EXPLODED VIEWS 39 8 0 0 SR-6000...
  • Page 9 Repair Parts List Description Pump Assembly, Model 300 10-32 x 1-1/4 SS Pan Head Screw 10-32 x 1-5/8 SS Pan Head Screw Pump Cover, Smoke, TW Rotor Assembly Pump Housing, Grey Mounting Bracket Kit Enclosure (SR4000) Enclosure (SR6000) Motor Mount Hardware Kit Ptube, PT, 3.0cc, w/coupler Ptube, PT, 1.5cc* Ptube, PT, 2.0cc*...
  • Page 12: Warranty

    The SR-4000 and SR-6000 Chemical Dispensing Systems manufactured by Sta-Rite are warranted to be free of defects in material and workmanship for two (2) years from date of installation. The pump tubes are an ex- ception and do not have any warranty coverage. Please see Page 7 for pump tube maintenance.

This manual is also suitable for:

Sr-6000
