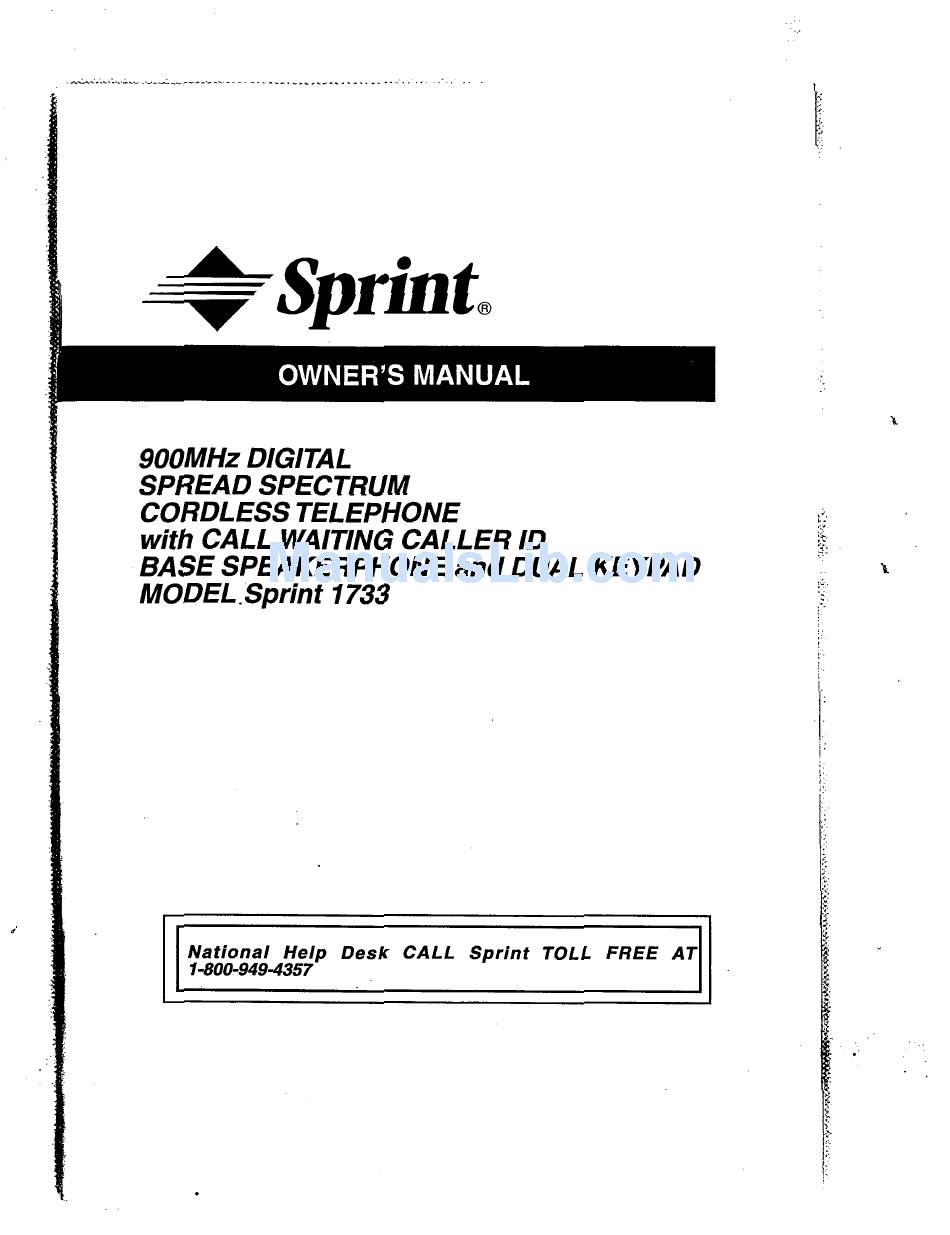

9OOMHz DIGITAL
SPREAD SPECTRUM
CORDLESS TELEPHONE
with CALL WAITING CALLER ID
BASE SPEAKERPHONE and DUAL KEYPAD
MODEL.Sprint 1733
I I
National Help Desk CALL Sprint TOLL FREE AT
1-800-949-4357
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPRINT 1733 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sprint SPRINT 1733

Summary of Contents for Sprint SPRINT 1733

  • Page 1 9OOMHz DIGITAL SPREAD SPECTRUM CORDLESS TELEPHONE with CALL WAITING CALLER ID BASE SPEAKERPHONE and DUAL KEYPAD MODEL.Sprint 1733 National Help Desk CALL Sprint TOLL FREE AT 1-800-949-4357...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SPECIAL FEATURES PARTS.CHECKLIST FCC AND IC REGULATIONS IMPORTANT SAFETY INSTRUCTIONS INSTALLING THE BATTERY PACK TO CHARGE THE BATTERY PACK A WORD ABOUT RECHARGEABLE BATTERIES REPLACING THE HANDSET BATTERY PACK SPARE BATTERY CHARGERJPOWER BACK UP FUNCTION GETTING STARTED WALL MOUNTING HANDSET UNIT LAYOUT BASE UNIT LAYOUT...
  • Page 3 TABLE OF CONTENTS P H O N E BOOK E D I T I N G P H O N E B O O K R E C O R D S A D D I N G N E W P H O N E B O O K R E C O R D S RINGER TONE / VOLUME KEY BEEP ON / OFF SET TIME...
  • Page 4 Congratulations! You have pur- chased one of the most sophisticated cordless telephones on the market! The Sprint 1733 has been designed to offer a new standard in cordless telephone technology. Unlike most other cordless phones, the Sprint 1733 digitizes your voice...

  • Page 5: Introduction

    8-level Volume control on Hand- set. Programmable Ringer Tones &d Volume. Headset Compatible, for use with 2.5mm headsets. This manual is designed to familiar- ize you with the Sprint 1733. We strongly recommend you read the manual before using your phone. between...

  • Page 6: Parts.checklist

    INTRODUCTION PARTS CHECKLIST 4.Wall mount accessory 1 .Baseunit, Handset, Bekclipand ACadaptor To purchase replacement battery 2.0ne-Line Telephone Cord packs, call Sprint National Help Desk 3.Battery Pack (x2) Base Unit Belt Clip Telephone Cord Wall mount accessory Battery Pack AC Adapter...
  • Page 7 This equipment complies with Parts 15 and 68 of the Federal Communi- cations Commission (FCC) rules for the United States. It also complies with regulations RSS210 and CS-03 of In- dustry and Science Canada. Opera- tion is subject to the following two con- ditions: (1) this device may not cause interference, and (2) this device must accept any interference, including in-...
  • Page 8 FCC Part 68 The FCC requires that you connect your cordless telephone to the nation- wide telephone network through a modular telephone jack (USOC RJllC, RJ11W or RJl4). Your telephone company may dis- continue your service if your equip- ment causes harm to the telephone network.
  • Page 9 Your Sprint 1733 is designed to operate at the maximum power allowe4 by the FCC and IC. This means your Handset and Base Unit can communi-...
  • Page 10 When using your telephone equip- ment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to per- sons, including the following: 1 .Read and understand all instruc- tions. 2.Follow all warnings and instruc- tions marked on the product.
  • Page 11 C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operat- ing instructions. Adjust only those controls that are covered by the operating instructions, because improper adjustment of other con- trols may result in damage and will often require extensive work by an authorized technician to restore...

  • Page 12: To Charge The Battery Pack

    The Handset of your Sprint 1733 cordless telephone is powered by a rechargeable battery pack. It charges automatically whenever the Handset is in the Base Unit. You should charge the battery pack for 16 hours when you first receive your phone. You'll know...

  • Page 13: Replacing The Handset Battery Pack

    Sprint 1733 for up to 4 hours. The Spare Battery pack can also be used to replace a drained Handset battery to ensure uninterrupted use.
  • Page 14 (8ntenna side) of the Base. The Base ringer have 3 settings, High, Low and Off. TONUPULSE SELECTION Your Sprint 1733 is preset for Tone dialing. If you have rotary (pulse) service, program the Handset accordingly. See SET TONWPULSE for details.
  • Page 15 USING THE WALL MOUNT ADAPTOR 1. Position the wall mount bracket on the Base Unit. Line up the tabs on the wall mount adaptor with the holes on the bottom of the Base Unit Snap the wall mount bracket firmly in place.

  • Page 16: Handset Unit Layout

    HANDSET LAYOUT HEADSET JACK SOFT KEYS DIALING KEYS- RETURN CALL 3-WAY CAL REPEAT DIAL 1-789-342-3455 El PAUL JOHN SMITH DEC15 12:15P B I Z ,...
  • Page 17 PHONE CORD JACK AC POWER JACK SPARE BATTERY CHARGER COMPARTMENT RETURN CALL KEY 3-WAY CALL KEY REPEAT DIAL KEY MESSAGE INDICATOR SPARE BATT. LED CHARGE LED IN USE LED POWER LED FLASH KEY MEMORY KEY DIALING KEYS REDIAL KEY HOLD KEY VOLUME UPIDOWN KEY MUTE KEYILED SPEAKERPHONE KEY...

  • Page 18: Set-Up

    Here is a brief guide to the features and functions of your Sprint 1733 cordless telephone: SET-UP Plug AC adaptor into a standard electrical outlet. Set Dial Mode setting in MEMU to PULSE or TONE, The unit is factory set to TONE.

  • Page 19: Answering Calls

    FROM THE BASE Press SPEAKERPHONE, then wait for dial tone. Dial the desired phone number. your call, press SPEAKERPHONE again. ANSWERING CALLS FROM THE HANDSET: Press any key except OFF, Volume, INTERCOM keys and 3 PPU keys. Press OFF to end your call. FROM THE BASE: Press SPEAKERPHONE.

  • Page 20: H O L

    Press the TALK soft key or the PHONE key to return to your call. If an extension phone is activated while the Sprint 1733 has a call on HOLD, the Sprint 1733 will release the call and turn itself OFF.

  • Page 21: Quick Reference Guide

    3 phone numbers dialed. Use the soft keys to highlight the desired phone number. Press PHONE. The Sprint 1733 will access dial tone, and dial the number. PAGEIHANDSET LOCATOR To page the Handset from the Base Unit, press INTER.COM. The...

  • Page 22: From The Base

    QUICK REFERENCE , A J the handset microphone. But you can still hear the speaking from the Base. You can return the intercom conversation with the Base by press the TALK softkey. Press the OFF key to end the intercom mode. FROM THE HANDSET (when HANDSET ON or OFF HOOK) You can use the intercom when...

  • Page 23: Conference

    CONFERENCE Your Sprint 1733 allows you to establish a 3 party conference between the Handset, Base and the incoming call: Use either the Base or the Handset to make a call. 2) If you are using the Base to make the call, the Handset can join the conference by pressing PHONE.

  • Page 24: Flash

    (01 -25). You will then hear the dialing seauence. FLASH You can use your Sprint 1733 with services such as Call Waiting. Simply press the PHONE key to flash the line on the Handset, OR press FLASH on the Base.

  • Page 25: Rdl(Redia1)

    The Sprint 1733 has an advanced design which uses a menu system and soft keys to access all of the built-in features. Example of the idle mode display: NEW: The number of Caller ID records not previously viewed TOTAL: The total number of stored Caller ID records (50 max.)

  • Page 26: Mem(Memory)

    MEM (Memory) From the idle mode display,press MEM, the screen will now display: Enter the 2-digit location code rep- resenting the Phone Book directory record you wish to access. The screen will display the contents of that record. If the contents of the selected record are empty, the screen will display: and then ask for another 2-digit loca- tion code.
  • Page 27 And the third screen is: 7. AutoAns (Auto Answer) OnlOff 8. Set ToneIPulse 9. Del (delete) MSG Icon The following sections will detail how to access and operate the nine MENU functions. Note: You do not have to use the soft keys to select menu options.

  • Page 28: S A V

    Once you have chosen CALLER ID #I), (Menu selection the screen will display: If an N in a shaded box appears in the upper right hand corner of the Caller ID screen, this indicates that it is a new (not previously viewed) record.

  • Page 29: Del (Delete)

    DlAL or PHONE; Enter the desired number key, 1 through 4. The Sprint 1733 will access dial tone, and dial the selected sequence. DEL (Delete) Press DEL while reviewing a Caller ID record.

  • Page 30: Caller I D - C A L L Waiting I

    CALLER ID CALL WAITING Your Sprint 1733 is capable of dis- playing the name and/or number of the party calling before you answer the phone (Caller ID). It is also capable of displaying Caller ID information in con- junction with a Call Waiting alert signal (Call Waiting ID).

  • Page 31: Editing Phone Book Records

    The names and phone numbers of 25 frequently called parties can be stored in the Sprint 1733 Phone Book directory. You will find instructions for programming names and numbers into the directory in the section, ADDING NEW PHONE BOOK RECORDS.
  • Page 32 The XX location displayed is its origi- nal location. If you want to save the phone number in a different location, press CLR, and then enterthe two-digit location number. Press SAVE to confirm your location selection. The screen will display: If you are saving an edited record in its original directory location, you will see the following message after press-...
  • Page 33 Number Key Characters (in order) & ' , a b c 2 d e f 3 g h i 4 j k 1 5 m n o 6 p q r s 7 t u v w x y z 9 Press to advance the cursor to the next space.
  • Page 34 If you select Ringer Volume OFF, the idle mode screen will display "F". As you use your Sprint 1733 handset, you will hear a quiet beep with each key press. You can turn this feature off, if you choose KEY BEEP to be OFF.
  • Page 35 Once you have selected SET TIME (Menu selection #5), the Handset will display: If you prefer a 24-hour clock (some- times called Military Time), press 24H. Enter the current time by pressing the appropriate numbers on the keypad. A single digit hour must start with For a 12-hour clock, choose AM or PM.
  • Page 36 Auto Answer), then SAVE. The screen will display Setting Updated, and re- turn to the idle mode display. Your Sprint 1733 is preset for tone dialing.To change the dialing mode setting, choose SET TONEIPULSE (Menu selection #8), the screen will...

  • Page 37: Operation

    Sprint National Help Desk at Once you have a compatible 2.5mm Headset, locate the Headset Jack on the Sprint 1733 Handset. Connect the plug on the Headset cord to the jack on the cordless Handset. The plug should fit securely. Do not force the connec- tion.
  • Page 38 Base Unit to make sure it has power. MESSAGE WAITING INDICATOR (for use with Voicemail) Your Sprint 1733 is capable of de- tecting a visual Message Waiting signal, generated by many phone service providers. If you subscribe to Voicemail service from your local...

  • Page 39: Dial

    This i s an optional service; you are not required to subscribe to it. CUSTOM PAY-PER-USE (PPU) FEATURES Your Sprint 1733 gives you easy access to 5 popular custom features, offered by many telephone compa- nies: 1 . Return Call 2.

  • Page 40: Check Ac Power Indication

    Handset in the event of a power failure, for approximately 4 hours.During power back-up mode, the Handset will display: If your Sprint 1733 displays this message, and AC power is present, check the electrical outlet and the AC adapter, ensuring that it is firmly connected to the outlet and the Base Unit.
  • Page 41 TAKING CARE OF YOUR TELEPHONE. Your cordless Sprint 1733 telephone contains sophisticated electronic parts, so it must be treated with care. AVOID ROUGH TREATMENT Place the Handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.
  • Page 42 If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, call Sprint National Help Desk at 1- 800-949-4357. THE PHONE DOESN'T WORK AT ALL. Make sure the Power Cord is plugged in.
  • Page 43 Sprint warrants, to the original purchaser only, the material and workmanship of this product for ONE YEAR from the date of purchase. Sprint will repair or replace, at our option, this product without charge should it fail due to a defect in material or workmanship within that time period.
  • Page 44 FREQUENCY CONTROL Crystal Controlled Dual PLL Synthe- sizer TRANSMIT FREQUENCY Handset: 904.20 MHz to 925.80 MHz ( All 20 channels within this range) Base Unit: 904.20 MHz to 925.80 MHz (All 20 channels within this range) RECEIVE FREQUENCY Handset: 904.20 MHz to 925.80 ( All 20 channels within this range)
