Summary of Contents for Spracht Voice Center CP-2012
-

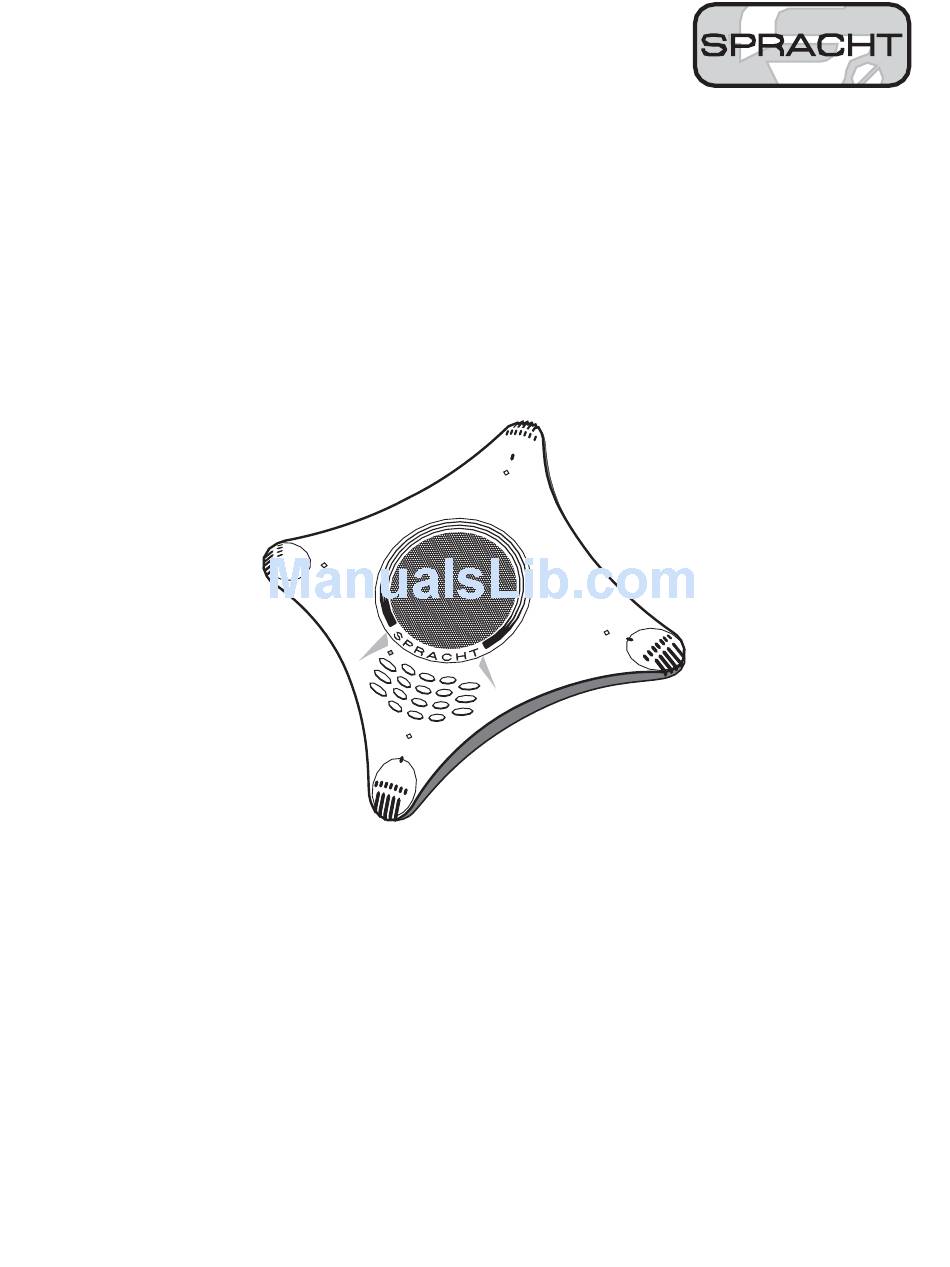

Page 1: Conference Phone
Voice Center ™ Conference Phone Model CP-2012 User's Manual... -
Page 2: Table Of Contents
Specifications........14 Spracht Limited Warranty Policy ......15... -
Page 3: Package Contents
Introduction Thank you for choosing the Voice Center Conference Phone, a high performance audio conferencing system. Its features include: • Full duplex communication – the Voice Center’s digital speech processing enables simultaneous two-way communication. This eliminates clipped sentences and awkward one-way conversations, allowing smooth and natural discussion. -
Page 4: Analog Or Digital Telephone System
3. Analog or Digital Telephone System? Caution: if the Voice Center is connected to a digital telephone system using the Analog Telephone System Interface, it will not operate correctly, and may cause damage to the AT-103 Analog Interface and cause it to overheat. It is therefore important to use the correct interface for your telephone system. -
Page 5: Analog Telephone System
Analog Telephone System Setup with Analog Telephone System If you are connecting the Voice Center Conference Phone to an analog telephone system, follow the instructions below. In North America, use the AT-103 Analog Telephone System Interface supplied with the conference phone; in Europe, use the AT-104 European Telephone System Interface (available in the EK-102 international adapter kit). -
Page 6: Selection Of Tone Or Pulse Dialing
Wall Mounting of Analog Interface (Optional) • Install the two mounting screws supplied with the Analog Interface in the wall. Leave approximately 3/16 in. (0.5 cm) between screw head and wall. • Place the Analog Interface over the mounting screws and slide it down to fix it in position. -
Page 7: Keypad Functions With Analog Telephone System
Analog Systems Keypad Functions with Analog Phone System ON/OFF Pressing the ON/OFF key turns the Conference Phone on to obtain a dial tone, or turns it off to terminate a call. When the Conference Phone is on, green LEDs illuminate by all active micro- phones. -
Page 8: Operation With Analog Telephone System
Conference Phone Operation with Analog Phone System Answering a call When the Conference Phone rings, press the ON/OFF key to answer the call. The green LED illuminates to indicate the Conference Phone is on. Adjusting the speaker volume While a call is in progress use the ▼ (decrease volume) and ▲ (increase volume) keys to adjust the speaker volume. -
Page 9: Digital Telephone System
Digital Telephone System Setup of Conference Phone with Digital Phone System Note: The DT-104 Digital Telephone System Interface is required for use of the Voice Center Conference Phone with a digital phone system. Follow the steps below to set up the system. Throughout the instructions, the Voice Center Conference Phone is referred to as “Conference Phone”... - Page 10 4. Use Digital Interface’s 4-position switch to adjust audio level by making a test call. • Lift digital telephone handset from its cradle, then press Conference Phone’s “On/Off” key. Important: the digital telephone handset must be “off-hook” for the duration of the call; the Digital Interface disables the handset microphone when the Conference Phone is on.
-
Page 11: Keypad Functions With Digital Telephone System
Digital Systems Keypad Functions with Digital Phone System ON/OFF Pressing the ON/OFF key turns the Conference Phone on to connect a call, or turns it off to terminate the Conference Phone conversation. When the Conference Phone is on, green LEDs illuminate by all active microphones. -
Page 12: Operation With Digital Telephone System
Conference Phone Operation with Digital Phone System Answering a call 1. When the phone rings, pick up the digital telephone handset to accept the call. 2. Press the ON/OFF key to take the call on the Conference Phone. The green LED illuminates to indi- cate the Conference Phone is on;... -
Page 13: General Setup Topics
General Setup Tips Tips for Obtaining Optimal Acoustic Performance • To minimize echoes, place the Conference Phone at the center of the room, or at least away from walls (at least 20 inches/0.5 m from any wall). • It is important to place the Conference Phone on the surface where it will be used before applying power. -
Page 15: Specifications
Specifications Conference Phone Controls and Interface Switches Microphone switch to turn on 2, 3 or all 4 built-in microphones LED indication lights Green LEDs (one by each active microphone) indicates unit is on Speakerphone connections Inputs: RJ-45 for telephone interface cable 2 RJ-22 jacks for external mics Electrical specifications Power... -
Page 16: Spracht Limited Warranty Policy
Spracht shall (at its option) repair or replace a defective unit covered by this warranty, or shall refund the product purchase price. Repair, replacement with a new or reconditioned unit, or refund, as provided under this warranty, is your exclusive remedy. This warranty does not cover any damages due to accident, misuse, abuse, or negligence. -
Page 18: Federal Communications Commission Statement
Federal Communications Commission Statement Note: The Voice Center Conference Phone equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 19 SPRACHT Tel: 650-318-8061 Fax: 650-318-8060 2672 Bayshore Parkway, Bldg 900 Mountain View, CA 94043 USA www.spracht.com...
