AxisBlu™ Pairing Instructions
GENERAL NOTES
• You will need to navigate to the Google play or the Itunes App store to download the AxisBlu™ application.
• The device will require Bluetooth version 4.2 or higher.
• When pairing the device, you will need to know your pairing code. Pairing code can be found on the back of the Bluetooth module and in the supplied envelope .
• THE PAIRING CODE SHOULD BE RETAINED IN AN ACCESSIBLE LOCATION IN THE EVENT OF A MODULE RESET, OR PAIRING OF NEW DEVICE.
• AxisBlu™ will support 1 primary phone and 4 additional phones. The primary phone will be the initial phone connected to the Bluetooth module.
• The Bluetooth module will leave its " white list" open for pairing until the primary mobile device has been connected. After the initial pairing, the " white list" will not be
open again until the user selects the ADD PHONE option in the mobile app.
ANDROID PAIRING
1
Navigate to the AxisBlu™ Icon
2
In the bottom right corner click on the icon. This will open the application options.
3
You will see three selections:
Reconnect
Instructions
4
Click on the Reconnect Icon and click on Bluetooth Settings.
5
Click the name of your AxisBlu™ device to connect under " AVAILABLE DEVICES."
6
The system will ask for the pairing code. The pairing code is located on the back of the Bluetooth module or in the coin envelope. Enter the 6
digit pairing code found on the label.
7
Once pairng is completed, use the CONNECTING section to connect the device to the lock.
IOS PAIRING
1
Navigate to the AxisBlu™ Icon and click to start up the application. The default startup will show the device is not connected.
2
In the bottom right corner click on the icon. This will open the application options.
3
You will see three selections:
Reconnect
-
Instructions
-
Add Phone
-
4
Click on the Reconnect Icon.
5
Click the name of your AxisBlu™ device to connect.
6
The system will ask for the pairing code. The pairing code is located on the back of the Bluetooth module or in the coin envelope . Enter the 6
digit pairing code found on the label.
7
Once pairing is completed, use the CONNECTING section to connect the device to the lock.
Sargent & Greenleaf, Inc.
One Security Drive
Nicholasville, KY 40356 USA
Phone: (800)-826-7652
Fax: (800)-634-4843
Copyright
2018, Sargent & Greenleaf, Inc.
©
and click to startup the application. The default startup will show the device is not connected.
-
Connect to device
-
Operating instructions
-
Add additonal phones
Connect to device
Operating instructions
Add additonal phones
Sargent & Greenleaf S.A.
9, Chemin du Croset
1024 Ecublens, Switzerland
Phone: +41-21 694 34 00
Fax: +41-21 694 34 09
Document 630- 945
Revised 10/22/2018
Advertisement
Table of Contents
Related Manuals for Sargent and Greenleaf AxisBlu
Summary of Contents for Sargent and Greenleaf AxisBlu
- Page 1 AxisBlu™ Pairing Instructions GENERAL NOTES • You will need to navigate to the Google play or the Itunes App store to download the AxisBlu™ application. • The device will require Bluetooth version 4.2 or higher. • When pairing the device, you will need to know your pairing code. Pairing code can be found on the back of the Bluetooth module and in the supplied envelope . • THE PAIRING CODE SHOULD BE RETAINED IN AN ACCESSIBLE LOCATION IN THE EVENT OF A MODULE RESET, OR PAIRING OF NEW DEVICE. • AxisBlu™ will support 1 primary phone and 4 additional phones. The primary phone will be the initial phone connected to the Bluetooth module. • The Bluetooth module will leave its “ white list” open for pairing until the primary mobile device has been connected. After the initial pairing, the “ white list” will not be open again until the user selects the ADD PHONE option in the mobile app.
- Page 2 CONNECTING TO AxisBlu™ TESTING Navigate to the AxisBlu™ Icon and select the application Enter 1 2 3 4 5 6 # into the box. icon. The default startup will show the device is not connected. Hit the button. In the bottom right corner click on the icon. This will open On the screen you will see the RESPONSE turn green and BOLT the application options. STATUS turn red. This indicates the lock is open. You will see three selections: Reconnect Connect to device Instructions Operating instructions When the lock bolt secures, the BOLT STATUS turn Green. This Add Phone Add additonal phones indicates the lock is secure. The BOLT STATUS will indication is valid as long as the connection is established. Click on the Reconnect Icon. Click the name of your AxisBlu™ device to connect. When connected the CONNECTION Icon will be green and the name of the device will be displayed below the CONNECTION Icon. The lock will send information about the status of the battery when it is opened and closed. You are now connected to the lock. AxisBlu™ You have successful tested your lock. AxisBlu™ ADD PHONE APP COMMUNICATION From the Primary Phone, navigate to the AxisBlu™ Icon and...
- Page 3 LOST/NEW TELEPHONE Supplied with your AxisBlu™ Medallion installation is a backup battery connection. Using the backup battery connection, you can reset the blue tooth module and connect with your new phone. 1. Plug in a 9Volt battery into the connector. 2. Open the medallion on the front of the safe exposing the backup battery connection. 3. Insert the batter plug into the medallion plug. 4. Remove the plug after 3 seconds. 5. Navigate to the AxisBlu™ Icon and select the application icon. 6. Use “ CONNECTING TO AxisBlu™“ to pair/repair your device. 7. Open your lock using the last know valid combination. LOST/NEW TELEPHONE KEYPAD 1. Open the safe door and gain access to the Bluetooth module. 2. Press an hold the reset button located next to the outside of the case. 3. Navigate to the AxisBlu™ Icon and select the application icon. 4. Use “ CONNECTING TO AxisBlu™“ to pair/repair your device...

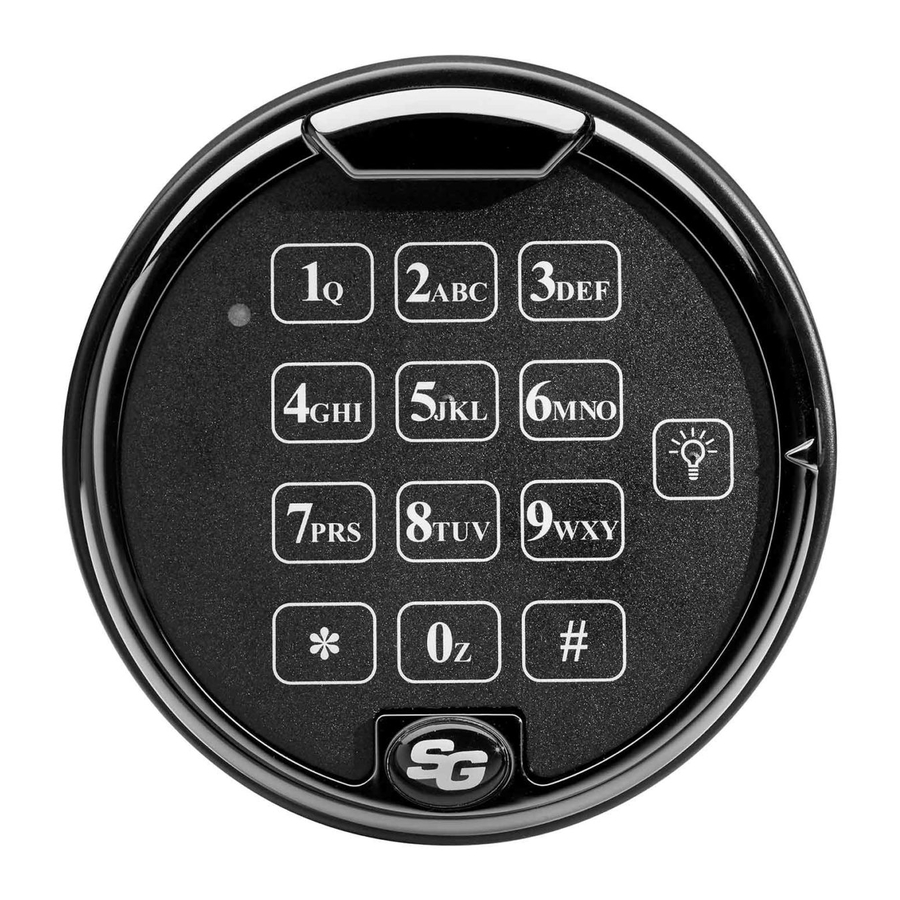

- Page 4 Basic Operating Instructions AX26 INTRODUCTION • S&G electronic safe locks incorporate sophisticated electronic circuitry and are suitable for indoor use only. • The audit features, peripheral devices and accessories, software features, one-time code functionality, USB functionality, wireless functionality, remote functionality, Bluetooth functionality and other additional features are beyond the scope of the UL 2058 standard and not part of the UL Listing. • The length of any external cabling used for this product must not exceed 3 meters in length. Use of cabling exceeding 3 meters may void product certifications. • The keypad should only be cleaned with a soft, dry cloth. Avoid the use of solvents or liquids. • Never attempt to lubricate the lock or keypad components. • Each time a button is pressed and the lock accepts the input, the lock emits a “ beep”, the red LED on the keypad flashes. • If AxisBlu™ is installed with a keypad, you will hear a series of beeps when programming device with the phone application. • All the letters of the English alphabet are displayed on the keypad. This allows you to devise numeric, alphanumeric or word-based codes. Use what works best for you. GENERAL NOTES • All operating codes consist of six characters (digits and/or letters). The S&G factory master code is 1 2 3 4 5 6 #. • The mobile app requires that Bluetooth be enabled and requires access to “ location services.” • After changing or adding a new code, lock/unlock the device at least 3 times with container door open. Make sure it functions correctly before closing the door. • If five or more incorrect codes are entered consecutively, the lock will enter a ten-minute penalty period during which it will not accept input. Pressing a key during the penalty time extends the period a few seconds. • When the lock is in penalty, the mobile app will not be able to work with the AxisBlu unit. Any data that is sent to the unit during penalty time will result in the RESPONSE light flashing red for a few seconds (instead of just briefly turning on). In addition, if the unit is a keypad unit, then there will not be any sound from the keypad when data is sent through the app during penalty time.
