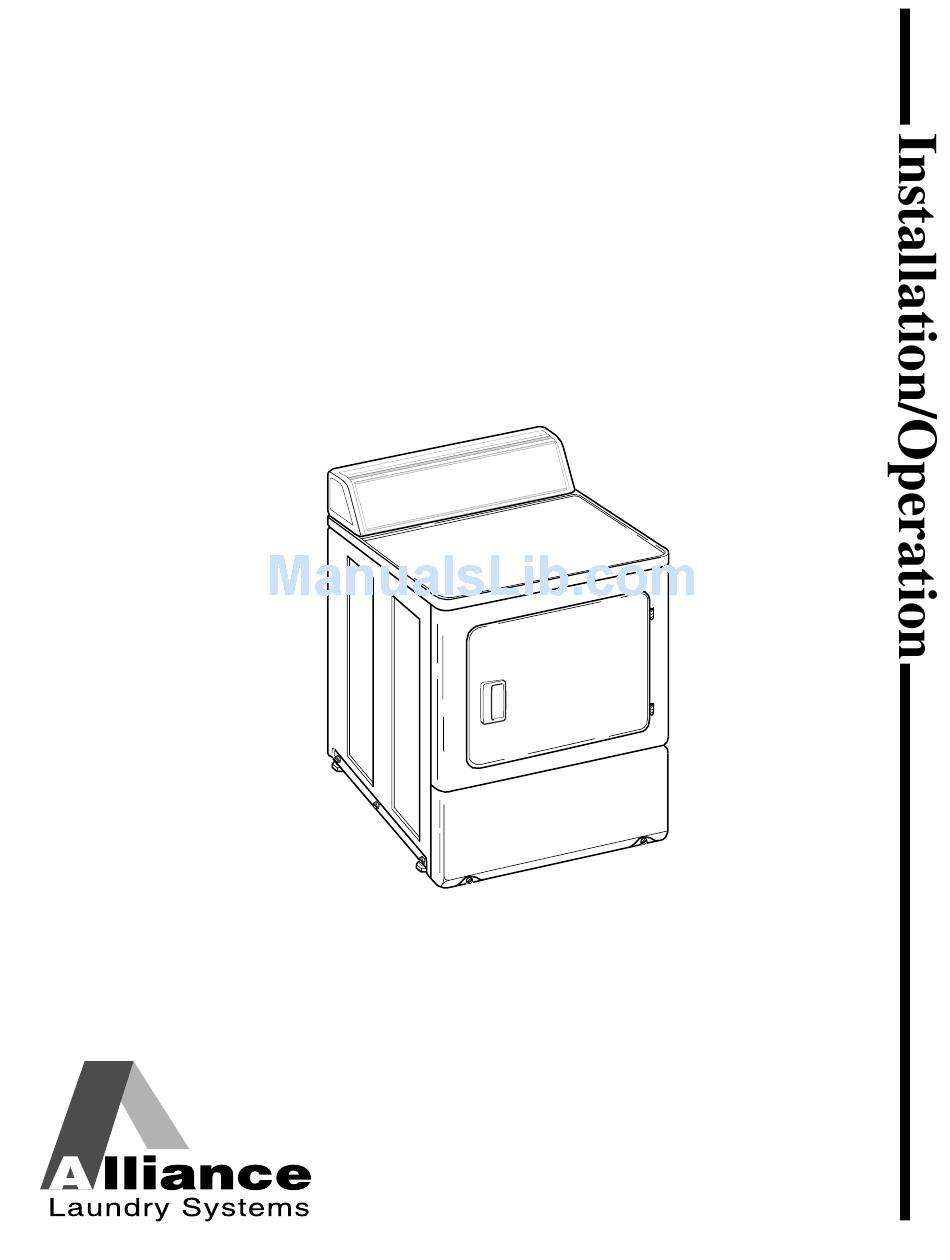

- Page 1 Home Laundry Automatic Clothes Dryers D715I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 510988R2 www.comlaundry.com June 2007...
- Page 3 FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988...
-
Page 5: Table Of Contents
Table of Contents © Copyright 2007, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 510988 ©... - Page 6 Motor Overload Protector... 32 Lint Filter ... 32 Before You Call for Service ... 33 If Service Is Required ... 34 Information for Handy Reference... 35 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988...
-
Page 7: Replacement Parts
Replacement Parts If replacement parts are required, contact the source from which you purchased your dryer or contact: 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. - Page 8 Notes 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 9: Safety Information
Explanation of Safety Messages Throughout this manual and on machine decals, you will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine. DANGER Indicates an imminently hazardous situation that, if not avoided, will cause... - Page 10 Safety Information 12. Always clean the lint filter after every load. A layer of lint in the filter reduces drying efficiency and prolongs drying time. 13. Keep area around the exhaust opening and adjacent surrounding area free from the accumulation of lint, dust and dirt. 14.
-
Page 11: Installation
Installation Roughing In Dimensions 56.85 cm (22.38 in.) 39.1 cm (15.4 in.) 20.3 cm (8.0 in.) *11.4 cm (4.5 in.) 1.1 cm (0.4 in.) 59.7 cm 71.1 cm 68.3 cm (23.5 in.) (28 in.) (26.9 in.) DRY2188N *10.2 cm (4.0 in.) *With leveling legs turned into base. -
Page 12: Tools
Installation Tools For most installations, the basic tools you will need are: Wrench Screwdrivers Level Duct Tape Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installing the Dryer Step 1: Position and Level the Dryer For further assistance refer to section on Location Requirements. -
Page 13: Step 2: Connect Dryer Exhaust System
Step 2: Connect Dryer Exhaust System Refer to sections on Location Requirements and Dryer Exhaust Requirements. WARNING A clothes dryer produces combustible lint. To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors. NOTE: Failure to exhaust dryer properly will void warranty. -
Page 14: Step 3: Connect Electrical Cord
Installation Step 3: Connect Electrical Cord (240 Volt/60 Hertz) Refer to section on Electrical Requirements. TWO-WIRE CONNECTION NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer with access cover removed. Step 4: Wipe Out Inside of Dryer Before using dryer for the first time, use an all-purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside dryer drum. -
Page 15: Reversing Door Procedure
Reversing Door Procedure The door on this dryer is completely reversible. To reverse door proceed as follows: 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT D675I D675I D312S D312S D314S D314S D316S D316S Installation D311S D311S D273P D315S... -
Page 16: Electrical Requirements
Installation Electrical Requirements 240 Volt, 60 Hertz, 2-Wire Plus Grounded (Earth) Wire Installation WARNING To reduce the risk of fire, electric shock, serious injury or death, the electrical installation should conform to the National Electrical Code, ANSI/NFPA 70, and such local regulations as might apply. - Page 17 Earth (Ground) Wire (Green/Yellow) Not Used on Gas Models “L” Terminal Terminal Block Hex Head Screws (Slotted) Power Cord Wiring Direct Wiring Strain Relief (Not supplied with dryer) Power Cord or Direct Wire (Not supplied with dryer) Access Cover Earth (Ground) Wire Earth (Ground) Screw “N”...
-
Page 18: 240 Volt, 60 Hertz, 3-Wire
Installation 240 Volt, 60 Hertz, 3-Wire NOTE: The wiring diagram is located inside the control hood. WARNING To reduce the risk of fire, electric shock, serious injury or death, all wiring and grounding MUST conform with the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, and such local regulations as might apply. - Page 19 1. Remove access cover from rear of dryer. 2. Use a strain relief and insert end of power cord through power supply hole. 3. Use the three screws from the envelope located in the cylinder to attach the power cord wires to the terminal block.
-
Page 20: Location Requirements
Installation Location Requirements Select a location with a solid floor. Dryers installed in residential garages must be elevated 46 cm (18 inches) above the floor. No other fuel burning appliance should be installed in the same closet with the dryer. FRONT VIEW (w/o Closet Door) Area... -
Page 21: Dryer Exhaust Requirements
Dryer Exhaust Requirements WARNING A clothes dryer produces combustible lint. To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors. To reduce the risk of fire and the accumulation of combustion gases, DO NOT exhaust dryer air into a window well, gas vent, chimney or enclosed, unventilated area, such as an attic, wall, ceiling, crawl... -
Page 22: Exhaust System
Installation Exhaust System IMPORTANT: Keep exhaust duct as short as possible. NOTE: Be certain old ducts are cleaned before installing your new dryer. For best drying results, recommended maximum length of exhaust system is shown in table below. To prevent backdraft when dryer is not in operation, outer end of exhaust pipe must have a weather hood with hinged dampers (obtain locally). -
Page 23: Dryer Airflow
Exhausting the dryer in hard-to-reach locations can be accomplished by installing the 521P3 Flexible Metal Vent Kit, available as optional equipment at extra cost. The kit comes in two halves that can be attached separately to the dryer and wall outlet. Once attached, the dryer can be slid back into position and the two halves can be connected from the front. - Page 24 Notes 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 25: Operation
Before Drying Energy Saving Tips Make sure the lint filter is always clean. ● Do not overload the dryer. ● Do not overdry items. ● Remove items to be ironed while still damp. ● Use the correct cycle for the type of fabric being ●... -
Page 26: Available Drying Cycles
Operation Available Drying Cycles WARNING To reduce the risk of fire, electric shock, serious injury or death to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the dryer. NOTE: Use the AUTOMATIC cycles for drying items that can be dried with heat. These cycles automatically dry loads to the dryness level selected. -
Page 27: To Dry Clothes
To Dry Clothes IMPORTANT: Refer to the INSTALLATION INSTRUCTIONS before using dryer. NOTE: This appliance is designed for repeated normal operation according to operating instructions. 1. Sort items into separate loads. Figure 16 2. Remove lint filter cover, clean lint filter and replace cover. -
Page 28: End Of Cycle Signal
Operation End of Cycle Signal (Not available on all models) The volume of the signal tone may be set on OFF, LOUD or between the two selections. If a volume level is selected, the signal will let you know when the cycle is done. -
Page 29: Maintenance
Care of Your Dryer WARNING To reduce the risk of an electric shock, serious injury or death, disconnect the electrical service to the dryer before cleaning the interior. Dryer Interior Unstable dyes used in many denim blue jeans or brightly colored cotton garments may cause some discoloration of the interior surfaces. -
Page 30: Motor Overload Protector
Maintenance Motor Overload Protector The dryer’s motor overload protector stops the motor automatically in the event of an overload. After cooling, the overload protector will reset itself. Dryer can be restarted by pushing the timer knob in. If overload protector cycles again, remove the dryer from use and call the service person to correct the problem. -
Page 31: Before You Call For Service
Before You Call for Service You may save time and money by checking the following: If the Dryer: Doesn’t Dry Won’t Won’t Clothes Start Heat Satisfactorily • • • • • • • • • • • • • • •... -
Page 32: If Service Is Required
Maintenance If Service Is Required If service is required, contact the nearest Factory Authorized Service Center. If you are unable to locate an authorized service center or are unsatisfied with the service performed on your dryer, write to: Alliance Laundry Systems Shepard Street P.O. -
Page 33: Information For Handy Reference
Information for Handy Reference Alliance Laundry Systems LLC Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. Phone: (920) 748-3950 Date Purchased Model Number Dealer’s Name Dealer’s Address Service Agency Service Agency Address NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate.
