Page 1: Operation Manual

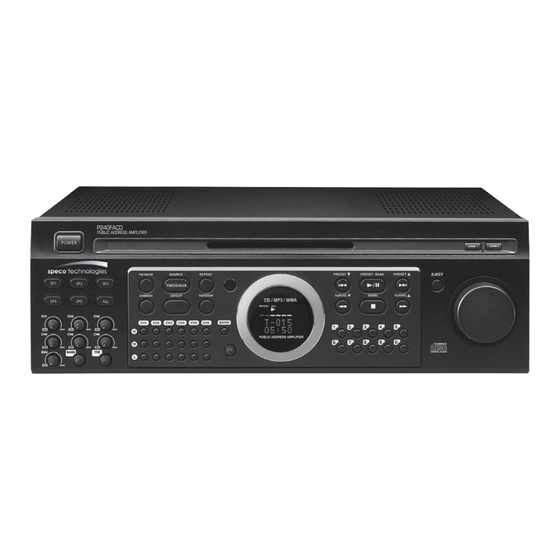

Operation Manual Public Address Amplifier P120FACD/P240FACD... - Page 2 A personal welcome to you from the management and employees of Speco Technologies All of the co-workers here at Speco Technologies are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Additional Descriptions ...4 Front Panel ...5 Rear Panel ...8 Connecting Speakers ...11 FM Operation ...12 CD Operation ...13 Channel EQ SETUP ...14 SETUP Mode ...15 Applications ...17 Block Diagrams ...18 Specifications ...19 Service Procedures...20 Warranty ...20 PUBLIC ADDRESS AMPLIFIER P120FACD/P240FACD... -
Page 4: Unpacking
P120FACD/P240FACD S3125A S3125A... -
Page 5: Features
- EM (EMERGENCY) When the EM terminals are connected in emergencies, EM broadcasting stored in VOICE IC is outputted. ACCESSORIES - One detachable AC power cord is provided for use with this product. - FM Antenna PUBLIC ADDRESS AMPLIFIER P120FACD/P240FACD... -
Page 6: Operation
“Windows Media Technologies.” It provides the same sound quality as MP3s using half the Kbps (64 Kpbs vs. 128 Kbps). In other words, it’s half the file size of an MP3 with the same sound quality. P120FACD/P240FACD... -
Page 7: Front Panel
Press this button to repeat a track or tracks on a CD. 4) GROUP Button Press this button to select a folder on an MP3 disk. 5) RANDOM Button Press this button to randomly play CD tracks. 15 16 PUBLIC ADDRESS AMPLIFIER P120FACD/P240FACD... - Page 8 First, press ‘ENTER’ button to enter into EQ Mode, then select the tone of the channel you want, adjust the MIC Tone Control Volume and press ‘ENTER’ to save and exit the EQ Mode. Please refer to the ‘CHANNEL EQ SETUP’ section (page 14). P120FACD/P240FACD Button Button...
-
Page 9: Master Volume
Please refer to the ‘CHANNEL EQ SETUP’ section (page 14) for details. 17. DISPLAY VFD (Vacuum Fluorescent Display) displays the state of the operation of the unit. 18. MASTER VOLUME Adjust the signal level of the post output and the speaker outputs. PUBLIC ADDRESS AMPLIFIER P120FACD/P240FACD... -
Page 10: Rear Panel
P120FACD, and 240W for the P240FACD. 4. RS-232C CONTROL The unit can be controlled by AMX or CRESTRON System with this RS-232C interface. The maximum cable length is about 15m. RS-232 PIN OUT Spec P120FACD/P240FACD 8 9 10 11 Purpose Not Used Receiver... -
Page 11: Phantom Power Switch
PUBLIC ADDRESS AMPLIFIER Pin 8: Remote control 5(Speaker 5) Pin 9: Remote control ground Pin 10: DC +24V Pin 11: Chime Input Pin 12: NC Pin 13: NC Pin 14, 15: NC P120FACD/P240FACD... - Page 12 These are the trim volume controls for each much input to control the input gain. When adjusting the input gain, make sure that the levels are not set too high or it may cause noisy or distorted output. P120FACD/P240FACD MIC XLR JACK PIN 1...
-
Page 13: Connecting Speakers
WARNING : Extreme care must be exercised when connecting high-impedance systems, as potentially hazardous voltages may be present at these terminals. Do not install this equipment in a confined space with less than adequate ventilation. SPK1~5 (HIGH IMPEDANCE) 31V/8Ω (120W) 43.8V/8Ω (240W) PUBLIC ADDRESS AMPLIFIER 70V/41Ω 70V/21Ω P120FACD/P240FACD... -
Page 14: Fm Operation
5. Choose a number with a saved station to recall that station. You can also use the PRESET buttons to scroll through the saved station. - FM ANTENNA INSTALLATION Please find a spot where reception is good and mount the antenna. The tuning quality may suffer near cities, industrial complexes, broadcast towers or power lines. P120FACD/P240FACD... -
Page 15: Cd Operation
2. Press the group button during play. The VFD will display “GROUP.” Press the move to the next group folder to play from. 3. Press the GROUP button again to cancel the group function. ) to play the CD. PUBLIC ADDRESS AMPLIFIER (SKIP) buttons to P120FACD/P240FACD... -
Page 16: Channel Eq Setup
3. Adjust the tone volume to set it to -2dB. 4. Press the M of the CH1. 5. Adjust the tone volume to set it to 10dB. 6. Press the ENTER button to save and exit the EQ mode. Be sure the default EQ level is 0 dB. P120FACD/P240FACD... -
Page 17: Setup Mode
) to enter into the SETUP mode. Turn the volume, to enter into each setup function, MIC 1, 2 Mute level, Tel-In volume, Chime volume, etc. Press the H button of the CH6, to exit the current setup function or setup mode. P120FACD/P240FACD... -
Page 18: System Information
8. SYSTEM INFORMATION Choose SYSTEM INFO and press ‘ENTER’, If you do not press any key for 10seconds, you will exit the SETUP mode. P120FACD/P240FACD , Press ENTER, to choose 'TEL-IN LEVEL', Press ENTER, to choose 'CHIME LEVEL', Press ENTER, to choose 'BEEP SOUND', Press ENTER, . -
Page 19: Applications
INTRO 10 1 1 12 13 14 -SKIP-SEARCH STOP/CLEAR PLAY/PAUSE DECK PP-9113 PRE AMPLIFIER POWER MIXER CHIME BASS TREBLE MIC 1 MIC 2 MIC 3 MIC 4 MIC 5 MIC 6 PHONO DECK TUNER MASTER DECK PUBLIC ADDRESS AMPLIFIER P120FACD/P240FACD... -
Page 20: Block Diagrams
PUBLIC ADDRESS AMPLIFIER Block Diagrams Block Diagrams P120FACD/P240FACD... -
Page 21: Specifications
-10dBV/10k Ω ≤ -80dB ±10dB 90Hz-18kHz <1% Ω ≤ -60dB 120Hz-10kHz +24V DC -60dBV/10k Ω ≤ -50dB 120Hz-10kHz -10dBV/10k Ω ≤ -65dB 330Hz-3kHz < -85dB 80Hz-18kHz < -60dB 100Hz-14kHz 0dBV/600 Ω < 0.5% 0dBV/600 Ω -10°C ~ +40°C 11kg/24.3lb P120FACD/P240FACD... -
Page 22: Service
Some states do not allow limitations of how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential damages. The above limitations on implied warranty and consequential damages may not apply to you. This warranty gives you specific legal rights. You may have other rights which vary from state to state. P120FACD/P240FACD... - Page 23 P120FACD/P240FACD...
- Page 24 200 New Highway Amityville, NY 11701 Phone 631.957.8700 • Toll Free 1.800.645.5516 www.specotech.com MADE IN KOREA July 2009 124216...
