Amerec AX Chromatherapy-White LED Kit Installation And Operating Instructions

The AX Chromatherapy-White LED Kit is designed to be used with the AX model steam generators. The LED lights should
be mounted in the ceiling of the room and the transformer should be in a convenient dry location. The AX's bath control
switch is used to change the LED light colors and patterns.

General Installation

Determine locations suitable for mounting the Chroma-White system's components:
• The steam bath control is used to turn the lights on during the steam bath and to momentarily turn the LED lights off
then on again in order to change their colors and patterns.
• The LED light assemblies are to be mounted in the ceiling of the steam room. The LED's 8' power wires are connect-
ed to the white wire from the transformer and to a wire from the steamer's option terminal block. The Transformer's
black connects to the matching location at the steamer's option terminal block. Note: one option terminal block loca-
tion is dedicated to controlling a steam room light with an A3 or A6. Three additional options are available on the A6
control to allow connecting other devices, such as using one option set for color chroma lights and a second option
set for white lights.
• The 120VAC to 12VAC power transformer should be connected to a branch circuit's standard wall outlet. A 6' power
cord with a standard 15A 3-prong plug is attached to the transformer input and 8' of low voltage wires are attached
to the transformer's 12V output. The low voltage wires are to be connected to the to the LEDs with one lead routed
through a relay contact through the steamer's options terminal block.
Determine how the lights will be used:
• The lights turn on automatically when the steam bath is on.
Connect the wires to the
terminal block in the steamer. The lights will stay lit for 10
minutes after the bath turns off . The lights may be turned
on or off manually at any time using the A3 or A6 control.
• The lights turn on only when the user turns them on.
Connect the wires to one pair of the AUX connections on
the options terminal block in the steamer. On the A6 control,
set the chosen AUX option to on/off and choose a name,
such as Chroma Lights. To turn the lights on, go to the temp-
erature menu (select ± on the tool bar at the bottom of the
screen). The lights will stay lit until turned off again or until
the end of the next bath period.
4211-1901 07/13/18
AX Chromatherapy-White Light Kit
Installation and Operating Instructions
Power
Transformer
connection on the options
LIGHT

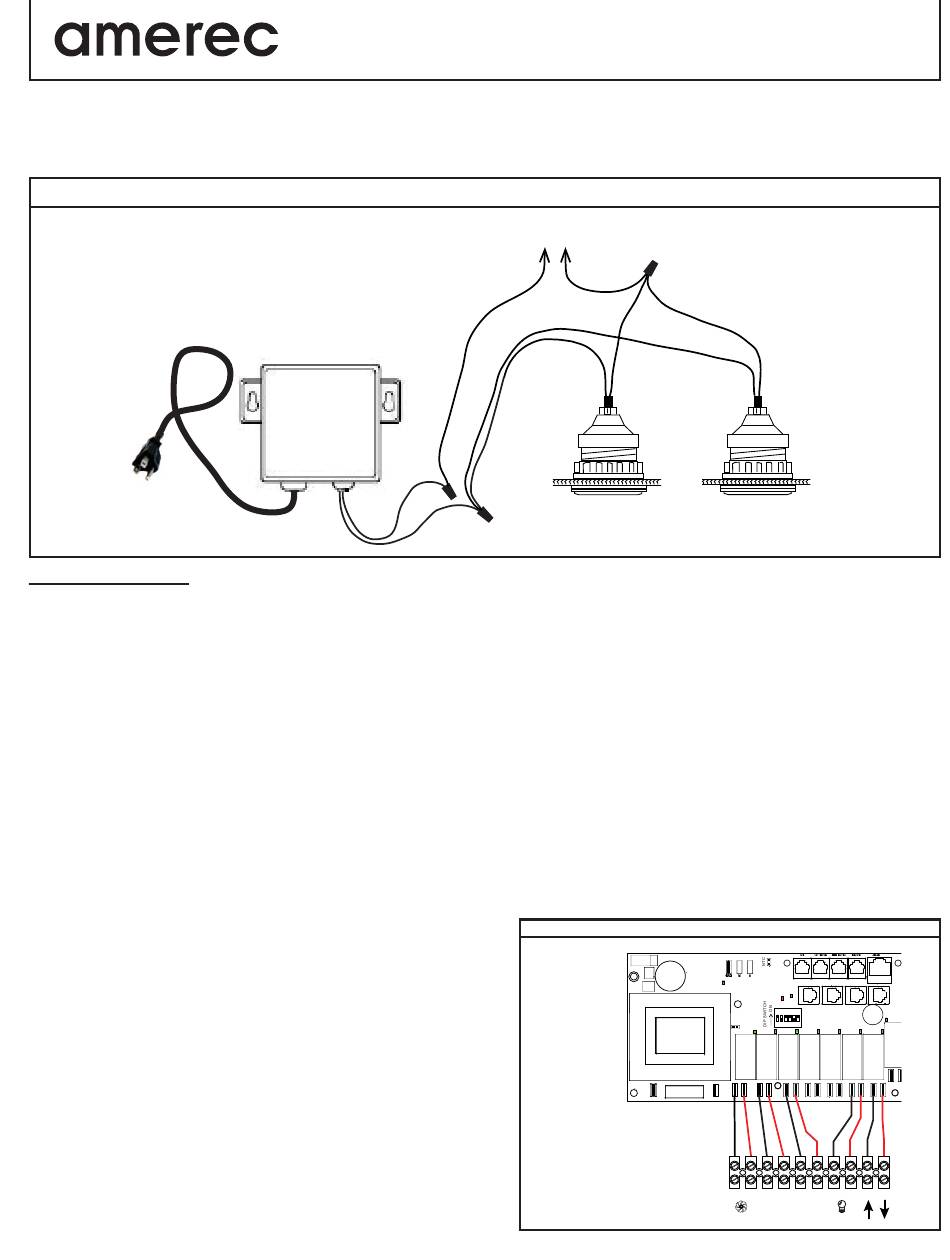

DIAGRAM 1
To Options Terminal Block
in AX Steamer
TYPICAL
CONNECTIONS
TERMINAL BLOCK
Light
Assemblies
DIAGRAM 2
ON
1 2 3 4 5 6
OPTIONS
FAN AUX2 AUX1
AUX0
LIGHT
