Speco VL-650/S Specification Sheet

*Super-HAD is a trademark of
The SONY Corporation
Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

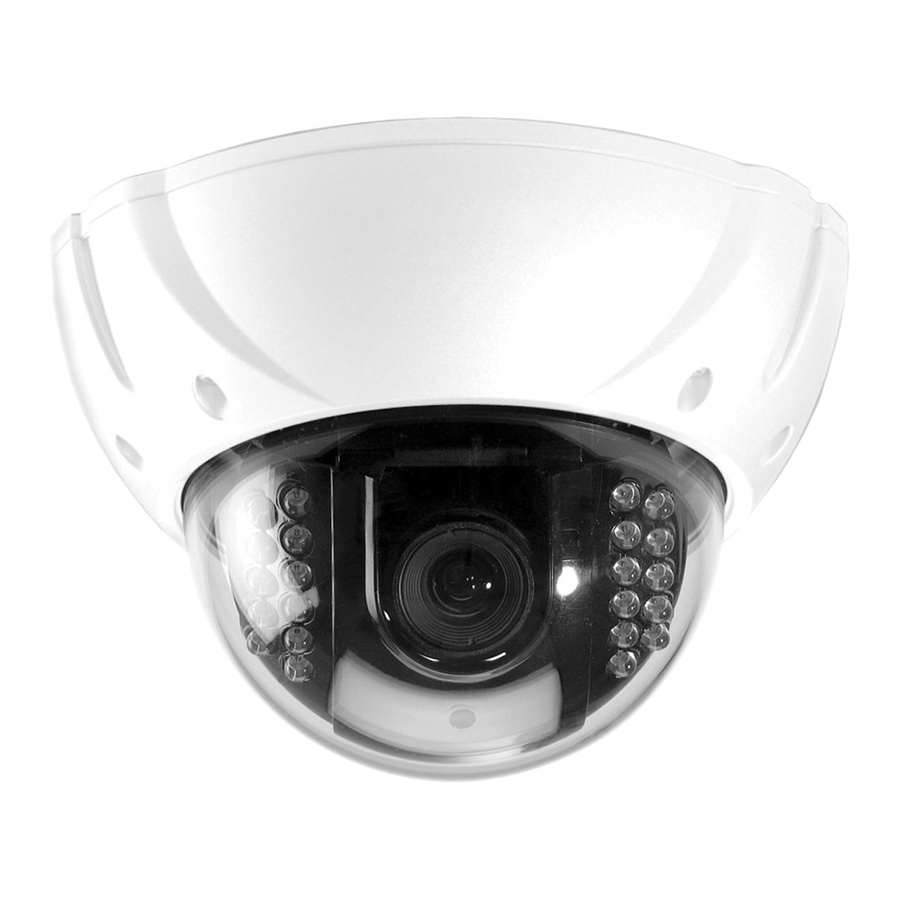

VL-650 Series Color Vandalproof Weatherproof

Dome Camera

VL-650/S
(silver)
VL-650IRVF/S
(silver)
• Internal IR LEDs with anti-reflective technology
• 20M IR range using 22 IR LEDs
• Tamperproof construction
• IP67 rated for extreme weather applications
• Optional wall, ceiling & junction box adaptors are available
• Available in white & silver housings
• Multi-function dip switches for precise camera adjustment

Specifications

CCD . . . . . . . . . . . . . . . . . . . . .
Resolution . . . . . . . . . . . . . . . . .
Lens . . . . . . . . . . . . . . . . . . . .
Min. Illumination . . . . . . . . . . . . .
Number of Pixels . . . . . . . . . . . . .
Cell size . . . . . . . . . . . . . . . . . . .
TV Type . . . . . . . . . . . . . . . . . . .
Sync Type . . . . . . . . . . . . . . . . . .
Scanning System . . . . . . . . . . . . .
Video Output . . . . . . . . . . . . . . .
Video Test Output . . . . . . . . . . . .
Gamma Characteristic
S/N Ratio . . . . . . . . . . . . . . . . . .
Gain Control . . . . . . . . . . . . . . . .
Electronic Shutter . . . . . . . . . . . . .
AGC . . . . . . . . . . . . . . . . . . . . .
BLC . . . . . . . . . . . . . . . . . . . . .
Flickerless . . . . . . . . . . . . . . . . . .
Mirror . . . . . . . . . . . . . . . . . . . .
Test Illuminance Area
Power Supply . . . . . . . . . . . . . . . .
Consumption Current
Reverse Polarity Protection
Operating Temperature

Accessories Available

. . . . . . . . . . .

Dimensions

. . . . . . . . . . . . . . . . .
For more information contact us at:
camera shown
with wall mount

Features

1/3" SONY Super-HAD* CCD
420 Lines
VL-650IR: 3.6mm board lens
VL-650IRVF: 4-9mm vari-focal auto iris lens
0 Lux (20M range) with LED on, 0.5 Lux with LED off
510 H x 492 V
9.6µm H x 7.5µm V
NTSC
Internal
2:1 Interlace
1.0 Vp-p (sync negative) into 75 ohms
Cable included
. . . . . . . . . . y=0.45 typ.
48dB or more (AGC off)
Automatic
1/60 Sec to 1/100,000 Sec
ON/OFF
ON/OFF
ON/OFF
ON/OFF
. . . . . . . . . . Average test illuminance by front view
Regulated 12V DC power supply included
. . . . . . . . . . Max. 360mA
. . . . . . . YES
. . . . . . . . . -20˚F to 120˚F
650WMT -Wall Mount
650TBMT -Junction Box
6" Dia. x 3.75" H
VL-650/W
(white)
VL-650IRVF/W
650 CMT -Ceiling Mount
(white)
