Speco CVCM6DC Installation Instructions

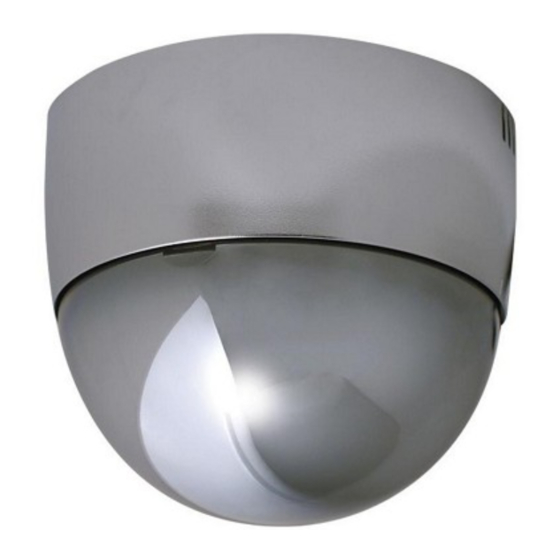

Mirror Finish Color Dome Camera CVCM6DC
Specifications
Image Sensor
Number of Pixels
Scanning System
Horizontal Resolution
Minimum Illumination
Lens
Signal to Noise Ratio
Gain Control
BLC
Synchronization
Electronic Shutter
Gamma Correction
White Balance
Video Output
Dimensions
Voltage Requirement
Current Draw
Temperature
Relative Humidity
Always use discretion when installing video and/or audio surveillance equipment
especially when there is an expectation of privacy. Inquire regarding federal, state
and/or local regulations applicable to the lawful installation of video and/or audio
recording or surveillance equipment. Party consent may be required.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Design and specifications are subject to change without notice.
1/3" Sony Super HAD CCD
510 H x 492 V
NTSC 2:1 interlace
420 TV lines
0.2 lux
3.6mm
>50dB
Auto
Auto
Internal
1/60 – 1/100,000 sec.
.45
Auto (2500° - 9500° K)
1V P-P (into 75Ω)
4-3/8" diameter x 3-5/8" high
12 +/- 10% VDC regulated
100 mA DC
-14°F - +122°F operating
-22° F - +158°F storage
0-95%
200 New Highway
Amityville, NY 11701
1-800-645-5516
www.specotech.com
Mirror Finish Color Dome Camera
Wall or Ceiling Mount
CVCM6DC
Installation Instructions
Box Contents
(1) CVCM6DC color camera (1) EZ mount base plate
(1) Dome liner (3) Mounting screws with plastic anchors
(1) Power supply pigtail (1) Installation guide
