Speco ProVideo CVC-6705 Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

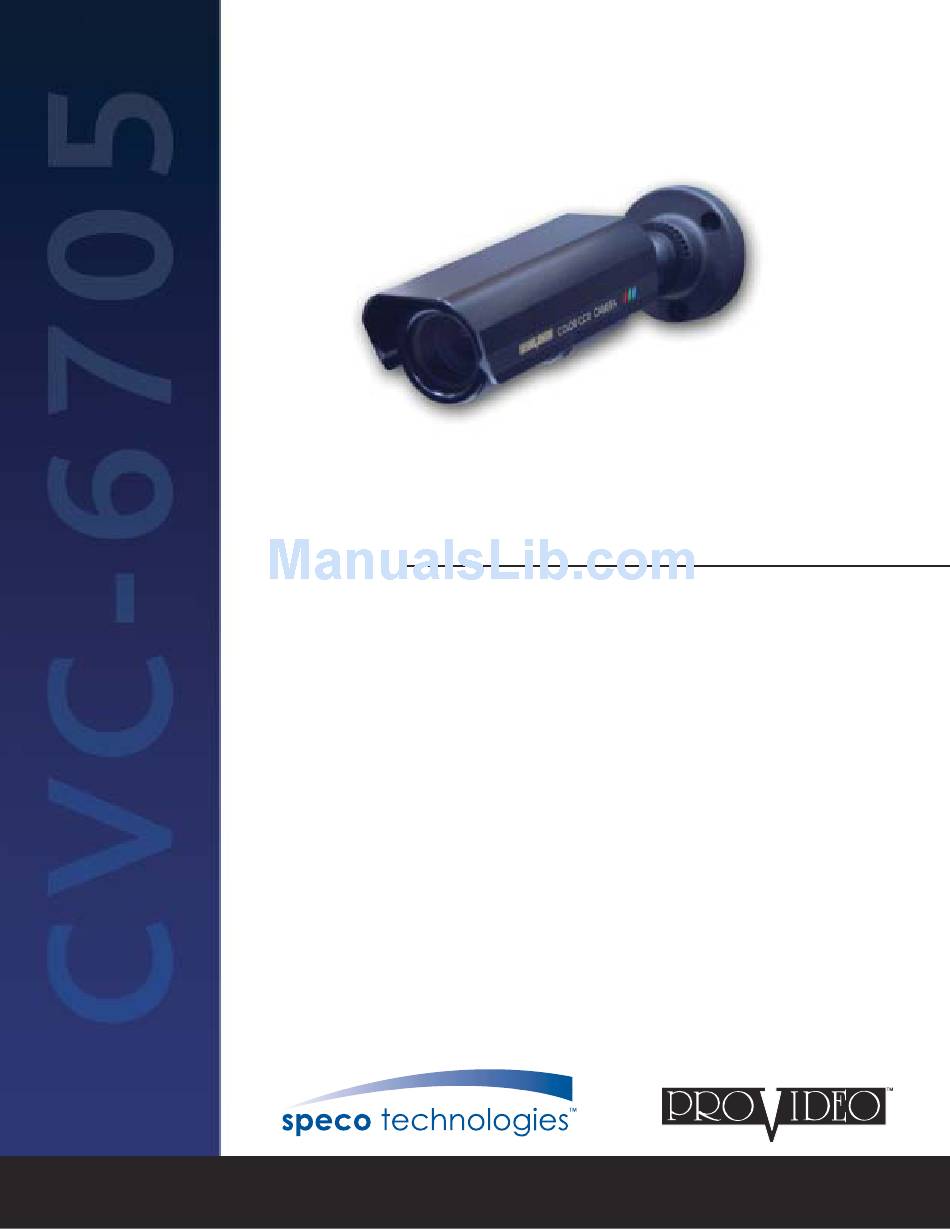

CVC-6705
Color Weatherproof Varifocal Bullet Camera
This 1/4" color CCD camera, has a 4mm-9mm adjustable varifocal lens and electronic
shutter to give the perfect picture in a wide variety of installations. The weather-
resistant housing is furnished with a protective sunshield and the cable is routed
through the "conduit compatible" mounting bracket for extra protection.

Specifications

Resolution
Minimum Illumination
Image Device
Lens
Electronic Shutter
Operating Temperature
Humidity
Number of Pixels
Video S/N Ratio
Video Output Level
Power Consumption
Power Supply
Scanning Frequency
Scanning System
Outputs
Housing
Dimensions
Weight
For more information contact us at:
Cable located in the mount
350 line
1.0 lux
1/4" color CCD image sensor
4-9mm varifocal lens
Auto 1/60 - 1/100,000 second
-14 degrees F to 122 degrees F
Within 95 % RH
510 horizontal x 492 vertical
Greater than 48 dB
1.0 Vp-p 75 ohm
100 ma
Regulated 12V DC power supply included
(UL and CSA listed)
Horizontal 15.75 kHz vertical 60 Hz
NTSC color 525 line 60 fields/second
Video-BNC/Power- DC jack
Black, miniature, weatherproof, aluminum
4.5"L x 2"W x 2"H
11.2 oz
