Speco CVC-645DC Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

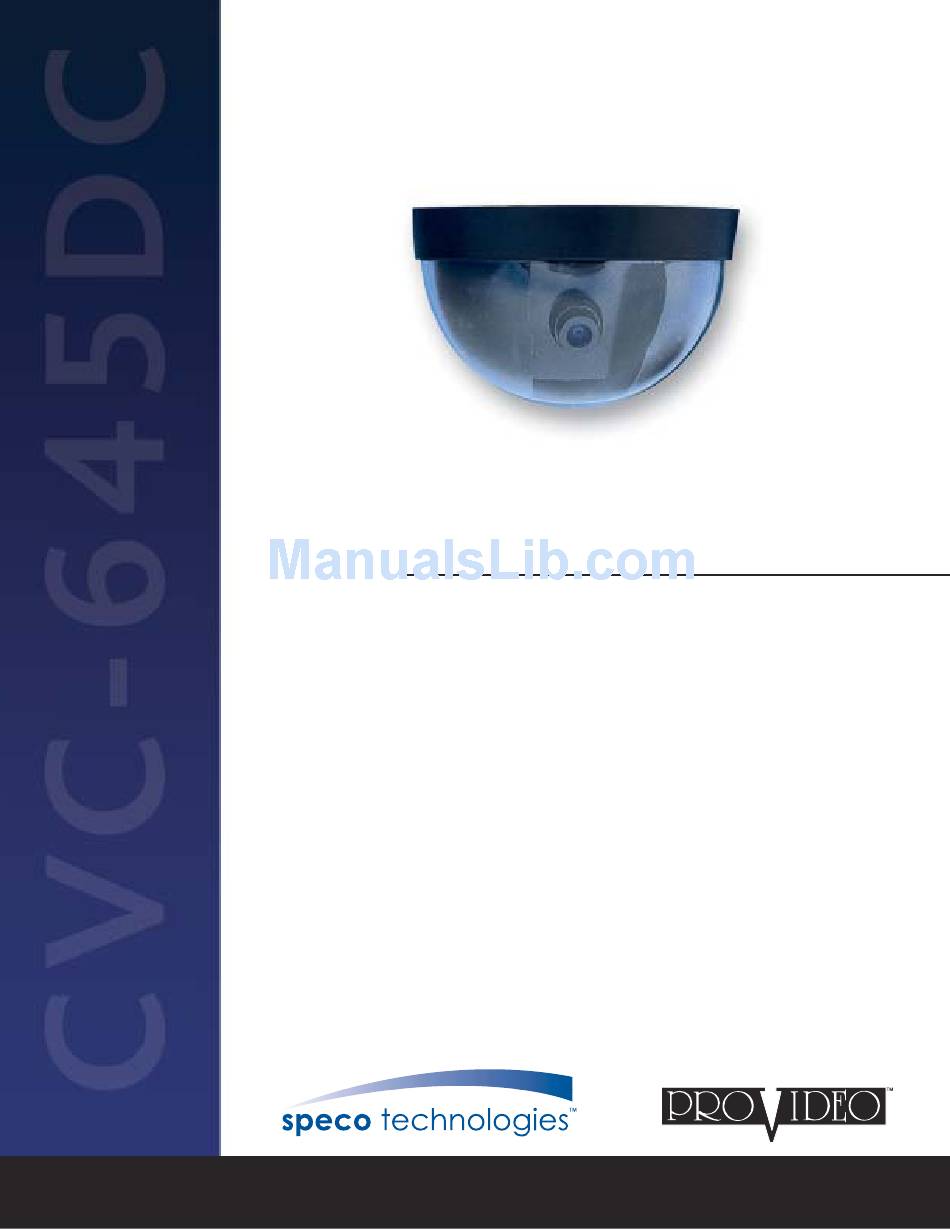

CVC-645DC
Color Dome Camera With Acrylic Chrome
Coating and Lined Housing
Our 1/4" color CCD dome camera with smoked housing can be mounted on the
ceiling and offers unobtrusive surveillance with its' black housing. It can be rotated a
full 360 degrees and tilted +/- 90 degrees for maximum viewing selection. It features
1.0 lux sensitivity with 420 line resolution and a 3.6mm wide angle lens with built-in
electronic shutter. A 12V DC power supply is included.

Specifications

Resolution
Image Device
Minimum Illumination
Interlace
Synchronization System
Shutter Control
Electronic Shutter
Lens
Video Output Level
Video S/N Ratio
Outputs/Connections
Operating Temperature
Power Consumption
Power Requirements
Scanning Frequency
Scanning System
Dimensions
Housing
Weight
For more information contact us at:
420 TV Lines
1/3" CCD Image Sensor
1 lux
2:1
Internal
Auto 1/60-1/100,000 sec.
Built-in
3.6mm wide angle
1.0 Vp-p, 75 ohms Composite
Greater than 48dB
Video-RCA, Power DC jack
14°F to 122°F
110ma @ 12V DC
12V DC Regulated Power Supply
(PSW-5) Included UL & CSA listed
Hor. 15.75 KHz, Vert. 60 Hz
NTSC color 525 TV lines
60 fields/sec
Dome Base: 4-1/2" dia.
Dome: 4" dia. x 3"(H)
High Impact Acrylic Chrome
Coating with Black Smoked Base
10.5 oz.
