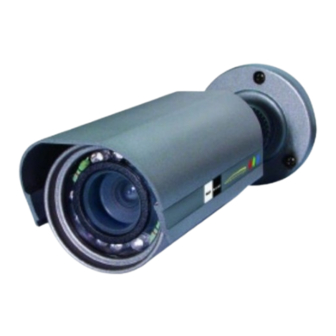

- Page 1 HT7715DNV HT7715DNVW 560 Line Color Bullet Camera Weatherproof, Day/Night High Resolution Wall & Ceiling Mountable Please read this manual thoroughly before operation and keep it handy for further reference. (Grey Housing) (White Housing)
- Page 2 WARNING & CAUTION CAUTION The lighting flash with an arrowhead symbol, within an equilateral triangle is Intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to The exclamation point within an equilateral triangle is intended to alert the user to the...
-
Page 3: Table Of Contents
Package Contents Precautions Features Camera Installation LED Pattern Specifications Dimensions Warranty CONTENTS 7-11... -
Page 4: Package Contents
PACKAGE CONTENTS Please make sure that the following items are included in the package: 1 HT7715 Camera Series 3 Mounting Screws 1 Video test Connector 1 Wrench Please leave this manual with the end-user for future reference. -
Page 5: Precautions
• THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROPER POWER CABLE • DO NOT CELAN THE COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE COVER •... -
Page 6: Features
1/3” SONY Super-Had HQ-1 , 560 TV lines of resolution • • Spilt Glass Technology – avoids IR reflections • Auto iris DC Varifocal Lens (4mm – 9mm) • LUX level dip switch adjusts day/night settings to your requirements • Dual voltage operation •... -
Page 7: Camera Installation
CAMERA INSTALLATION CONNECT POWER CABLE 1. WHEN USING 12 VOLTS DC (constant voltage 500 mA) Power Input :RED Center : (+) 2. WHEN USING 24 VOLTS AC (40 Volt Amps) RED(+) BLACK:(-) 3. CONNECT VIDEO CABLE -Connect BNC Cable To The BNC Jack. DC 12V Power Supply AC 24V Power Supply... - Page 8 CAMERA INSTALLATION Inner Controller Details 1.Function 2.V-Phase 3.Video Test 4.LUX Level 7.DC Lens Level 5.Zoom Controller 6.Heater 5.Focus Controller...
- Page 9 CAMERA INSTALLATION 1.Function * DIP SWITCH (1) ELC- Electronic Light Compensation ON : Camera is in Electronic Shutter Mode OFF: Electronic Shutter is fixed at 1/60 and Auto Iris mode is active (2) BLC-Back Light Compensation. BLC: If there is a strong light behind an object the object may appear as a shadow.
- Page 10 CAMERA INSTALLATION 2. V-Phase Level (UP/Down) When desired, the vertical phase may be adjusted to synchronize the vertical phase of the camera with other cameras in the system. This feature is only available in 24 Volt AC operation 3. Video Test Connector Allows the connection of a Local Monitor to make initial adjustments to the camera 4.
- Page 11 CAMERA INSTALLATION COMPATIBILITY “A” type Box “B” type Box CVCTPLATE ★Original Mounting Should be removed to use CVCTPLATE [CVCTPLATE Hole Description] Hole 1 : CVCTPEXT Hole 2 : Electrical Box “B” type Hole 3 : Electrical Box “A” type CVCTPEXT Flange...
-
Page 12: Led Pattern
LED PATTERN 4-9mm VF lens 18 Mini IR LEDs (80’ Range) -
Page 13: Specifications
ITEM Image Sensor Resolution Minimum illumination Lens Type CDS Sensor Electronic Shutter Video Output TV System Scanning System Sync System S/N Ratio IR Cut Filter Gamma Characteristic Power Supply Power consumption Operating Temperature Dimensions Weight Warranty SPECIFICATIONS HT7715DNV Series 1/3” Sony Super-Had HQ-1 DSP CCD 560 TV Line 0.03lux (IP Off) 0.00 LUX (IP on) DC Auto Iris 4mm –... -
Page 14: Dimensions
DIMENSIONS Front View Side View... -
Page 15: Warranty
WARRANTY... - Page 16 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com VER. 090509 This manual is based on the date as shown in the right and specifications are subject to Change without notice for quality improvement.
