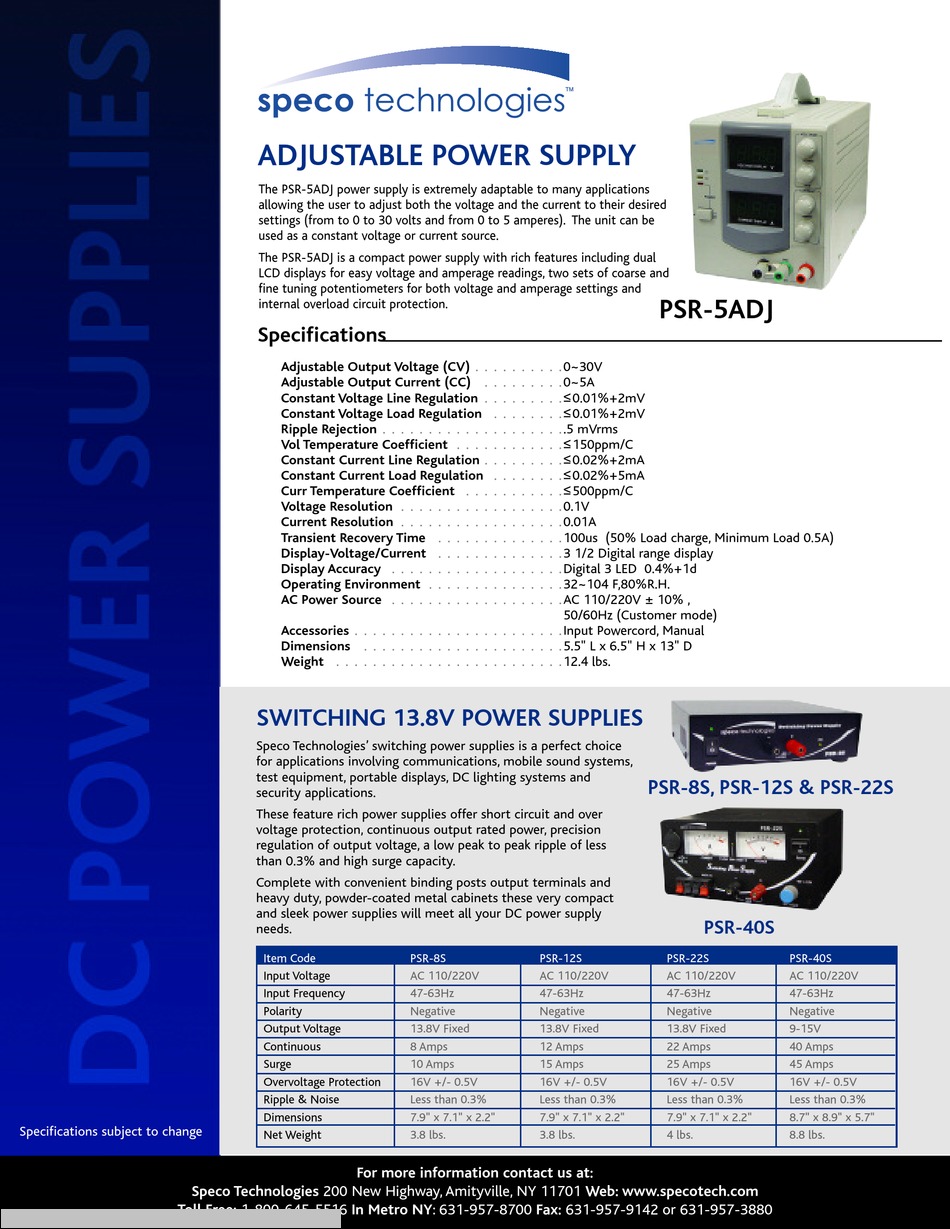

Speco PSR-12S Specification Sheet

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
ADJUSTABLE POWER SUPPLY
The PSR-5ADJ power supply is extremely adaptable to many applications
allowing the user to adjust both the voltage and the current to their desired
settings (from to 0 to 30 volts and from 0 to 5 amperes). The unit can be
used as a constant voltage or current source.
The PSR-5ADJ is a compact power supply with rich features including dual
LCD displays for easy voltage and amperage readings, two sets of coarse and
fine tuning potentiometers for both voltage and amperage settings and
internal overload circuit protection.

Specifications

Adjustable Output Voltage (CV)
Adjustable Output Current (CC)
Constant Voltage Line Regulation
Constant Voltage Load Regulation
Ripple Rejection . . . . . . . . . . . . . . . . . . . .
Vol Temperature Coefficient
Constant Current Line Regulation
Constant Current Load Regulation
Curr Temperature Coefficient
Voltage Resolution . . . . . . . . . . . . . . . . . .
Current Resolution . . . . . . . . . . . . . . . . . .
Transient Recovery Time
Display-Voltage/Current
Display Accuracy . . . . . . . . . . . . . . . . . . .
Operating Environment . . . . . . . . . . . . . . .
AC Power Source . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . .
SWITCHING 13.8V POWER SUPPLIES
Speco Technologies' switching power supplies is a perfect choice
for applications involving communications, mobile sound systems,
test equipment, portable displays, DC lighting systems and
security applications.
These feature rich power supplies offer short circuit and over
voltage protection, continuous output rated power, precision
regulation of output voltage, a low peak to peak ripple of less
than 0.3% and high surge capacity.
Complete with convenient binding posts output terminals and
heavy duty, powder-coated metal cabinets these very compact
and sleek power supplies will meet all your DC power supply
needs.
Item Code PSR-8S
Input Voltage AC 110/220V
Input Frequency 47-63Hz
Polarity Negative
Output Voltage 13.8V Fixed
Continuous 8 Amps
Surge 10 Amps
Overvoltage Protection 16V +/- 0.5V
Ripple & Noise Less than 0.3%
Dimensions 7.9" x 7.1" x 2.2"
Net Weight 3.8 lbs.
For more information contact us at:
. . . . . . . . . . 0~30V
≤ 0.01%+2mV
. . . . . . . . . 0~5A
≤ 0.01%+2mV
. . . . . . . . .
. . . . . . . .
≤ 150ppm/C
.5 mVrms
≤ 0.02%+2mA
. . . . . . . . . . . .
≤ 0.02%+5mA
. . . . . . . . .
≤ 500ppm/C
. . . . . . . .
. . . . . . . . . . .
0.1V
0.01A
. . . . . . . . . . . . . . 100us (50% Load charge, Minimum Load 0.5A)
. . . . . . . . . . . . . . 3 1/2 Digital range display
Digital 3 LED 0.4%+1d
32~104 F,80%R.H.
AC 110/220V ± 10% ,
50/60Hz (Customer mode)
Input Powercord, Manual
5.5" L x 6.5" H x 13" D
12.4 lbs.
PSR-12S
AC 110/220V
47-63Hz
Negative
13.8V Fixed
12 Amps
15 Amps
16V +/- 0.5V
Less than 0.3%
7.9" x 7.1" x 2.2"
3.8 lbs.
PSR-5ADJ
PSR-8S, PSR-12S & PSR-22S
PSR-40S
PSR-22S PSR-40S
AC 110/220V AC 110/220V
47-63Hz 47-63Hz
Negative Negative
13.8V Fixed 9-15V
22 Amps 40 Amps
25 Amps 45 Amps
16V +/- 0.5V 16V +/- 0.5V
Less than 0.3% Less than 0.3%
7.9" x 7.1" x 2.2" 8.7" x 8.9" x 5.7"
4 lbs. 8.8 lbs.
