Summary of Contents for HMP LFGpro
-
Page 2: Table Of Contents
Maintenance Menu ............... 18 Options Thermal printer AP1300 ..............19 Maintenance and Repair Cleaning ..................22 Calibrating ..................22 Hotline ................... 22 Attachment 1 Certificate „BASt-authorised calibration institute …“ 2 Certificate of Conformity Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 3: General Information
This symbol and the related text identify technical requirements and provide additional information to be taken into account by the operator to carry out the following operations effectively and safely. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 4: Intended Use
Prior to any measurement, test the release mechanism to be sure it functions as necessary. Support the drop-weight by hand after every impact to avoid faulty measurements. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -

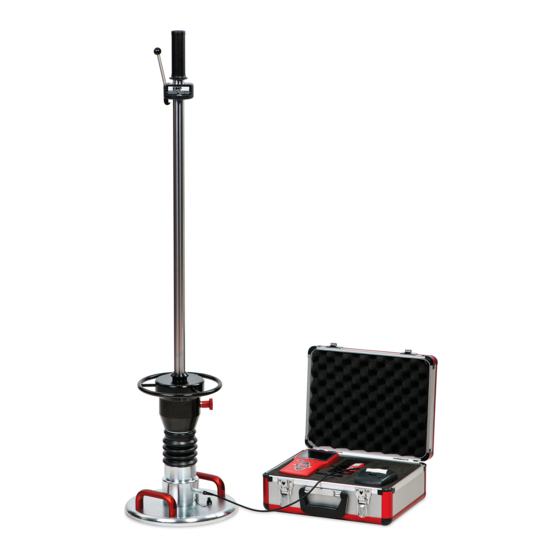

Page 5: The Light Weight Deflectometer
(Figure 3) Carrying case Settlement measuring instrument, beneath: USB cable, charger for printer (optional) USB car charger, USB stick AC/DC adapter (beneath cover) Thermal printer AP 1300 (optional) Figure 3 Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 6: Function
Range measured deformation modulus E < 225 MN/m² Temperature range 0 bis 40 °C Display 3.5“ TFT colour display Interfaces Bluetooth, USB, thermal printer integrated Memory capacity up to 1000 test series Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 7: Electronic Settlement Measuring Instrument Hmp Lfgpro
Back to the previous menu Next / measuring initiate Restore measurement readiness Scroll (test series/measured data) Scroll (test series/measured data) Store Delete Print test series Export test series page 14 Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... - Page 8 Display Time Language Drop weight Device Unit Calibration Head datea Printer Date/time Graphics Service Calibration menu Maintenance By confirming the button G you always come back to the previous menu. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en...
- Page 9 Observe local, state and federal laws and regulations for disposal. ❙ The supplied accessories must only be used for devices supplied by HMP and according to this instruction manual. Any other use may cause damages. Switching-off automatically The electronic settlement measuring instrument HMP...
- Page 10 When the battery pack is fully charged, the charging current entry is automatically interrupted. The Lithium polymer battery pack will only be charged, in case that the electronic settlement measuring instrument is switched off. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en...
-
Page 11: Measuring
The arrow is vertical: either drop-weight is unlocked The transportation lock has to be unlocked before measuring, otherwise mis-measurements and damages of the guide tube can be caused. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 12: Measuring Procedure
If precompaction shall be active again, proceed as follows. Switch to button area/indicating area by pressing key. ■ Confirm with key. ■ An acoustic signal is emitted. Precompaction can be started or continued. Figure 12 Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 13: Store, Print And Display Current Measured Data
14) and to delete afterwards the data in the measuring instrument ( page 15). In this way the transference time will be shortened and multiple data transfer avoided. Figure 17 Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 14: Completing The Test
(Figure 20) Check / establish the connection. ■ Restart the measuring process by pressing the key, as soon as the ■ Figure 20 connection is correct. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 15: Measured Data
After completion of data transfer the measuring instrument switches off automatically. To transfer the data from the USB stick to the PC see instruction manual Figure 25 »Protocol software for the Light Weight Deflectometer«. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 16: Delete Measuring Results
The menu on the left is displayed on the screen (Figure 29). Select button and confirm with key. ■ All measurements will be deleted. The main menu is displayed on the screen. Stored series cannot be deleted individually. Figure 29 Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 17: Settings
■ The menu »Settings« appears. Select Footer G by means of the key and confirm with key. ■ The set time will be saved and the main menu appears. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 18: Device
Date / Time ( print out date / time ❙ Grafik print out curve Service In menu »Service« L various device information, which are relevant for HMP service, are indicated. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 19: Calibration Menu
SETTINGS Calibration Menu The menu »Calibration« M is not available for users. Maintenance Menu The menu »Maintenance« R is not available for users. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en... -
Page 20: Options
AC/DC adapter to mains 230 V / 50 Hz. The AC/DC adapter is included in the delivery contents of Settlement measuring instrument HMP LFGpro. Charger and adapter are placed in the carrying case. The printer AP1300 is shipped with a connected and fully loaded power pack. - Page 21 Green flashing LED: – Paper out. Green – orange flashing LED: – Power pack is charged. Red – green flashing LED: – Power pack voltage is too low. 3 Paper compartment opener Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en...
- Page 22 Has the printer automatically switched on and is the LED on? Check, if the printer can be switched on manually. ❙ Is the power pack discharged? Charge the printer before use. Service +49(0)391 2514666 02/2017 Instruction Manual HMP LFGpro – en...
-
Page 23: Maintenance And Repair
The load plate must not be immersed in water; otherwise the sensor could be damaged. Calibrating The company of HMP is an authorised testing institution and calibration »Technical Test Code for Soil and Rock in laboratory within the meaning of Road Construction TP BF-StB Teil B 8.4 / Issue 2016«.
