OWNER'S MANUAL
1

Advertisement

Table of Contents
loading

Related Manuals for Specialized FSRXC

Summary of Contents for Specialized FSRXC

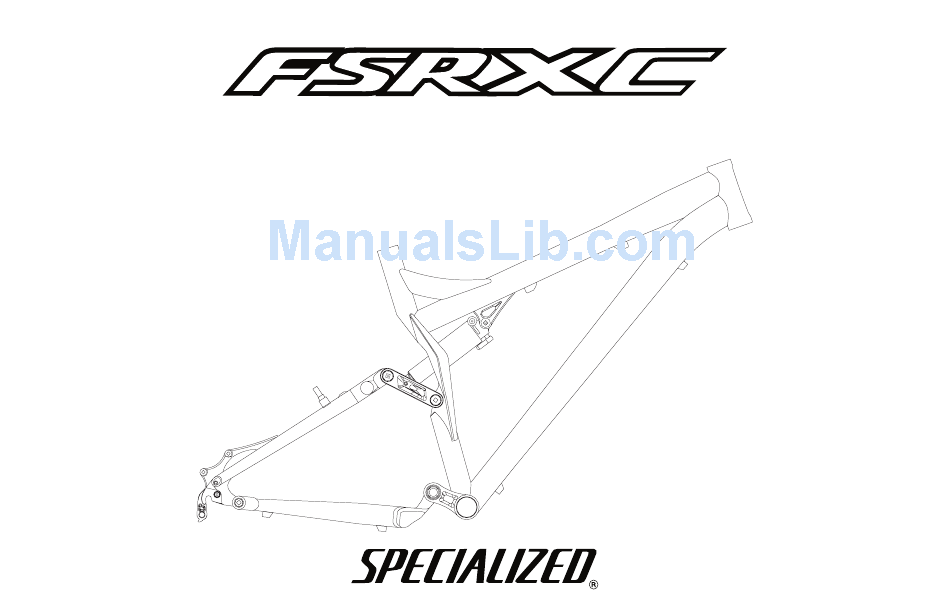

  • Page 1 OWNER’S MANUAL...

  • Page 3: Table Of Contents

    Introduction... Seat Post / Fork Compatibility... Accessories... Frame Features... Frame Geometry... Shock Setup... Optional Derailleur Guard Installation... Schematic and Specifications... Warranty...

  • Page 4: Introduction

    Frames or parts under high stress may fail, causing you to lose control or fall. Because of the risk involved, Specialized recommends that you conduct a thorough inspection before each ride. If you miss a jump, ditch your bike in mid crash, dump or launch your bike without you on it, inspect yourself for injury, then carefully inspect your bicycle for damage.
  • Page 5 Specialized does not warrant the bicycle frame or components for such activities, and expressly disclaims all warranties, including the warranty of fitness for particular purpose and merchantability.
  • Page 6 Your bicycle has been engineered and tested with specific components and parts. Because of the great variety in these items, it is impossible for Specialized to test and approve of all possible combinations. Modifying the frame, fork, or any of the components may make your bike unsafe.

  • Page 7: Seat Post / Fork Compatibility

    FORK SETUP INFORMATION WARNING: The FSRxc frame is compatible ONLY with single crown forks that have travel of 5.1” (130mm) or less. Use of different styled forks or forks with longer travel may result in catastrophic failure of the frame which may result in serious personal injury or death.

  • Page 8: Accessories

    MUDFLAP FENDER The Stumpjumper Mudflap is compatible with all 04- 06 Stumpjumper FSR and 05-06 FSRxc MODELS, available through your local Specialized dealer. SJ MudFlap Part #: 9894-2300 CHAINSTAY SLEEVE Replacement custom neoprene chainstay SlapJacket sleeves are available through your local Specialized dealer.

  • Page 9: Frame Features

    FSRxc FRAME FEATURES 1. Main Frame 2. Seatstay 3. Chainstay 4. Shock Link 5. Main Pivot 6. Dropout (Horst) Pivot 7. Shock Link at Seatstay Pivot 8. Shock Link at Frame Pivot 9. Lower Shock Eyelet 10. Upper Shock Eyelet 11.

  • Page 10: Frame Geometry

    FSRxc FRAME GEOMETRY FSRxc Geometry Men’s Small *Top Tube Length 551mm (21.70“) **Standover Hgt 732mm (28.82”) Head Tube Length 100mm (3.94”) Head Tube Angle 70.5º Seat Tube Angle 73º BB Height 325mm (12.80”) Wheelbase 1038mm (40.87”) Chainstay Length 424mm (16.70”) Women’s FSRxc Geometry...
  • Page 11 FSRxc FRAME GEOMETRY...

  • Page 12: Shock Setup

    REAR SHOCK SETUP FSRxc Rear Air Shock Setup Fox Triad X-Fusion RLA / RC Sag Setting: Set the sag (20-25% of shock stroke). See attached pressure chart for starting air pressure. Note - the chart is only a starting point, actual sag needs to the checked and adjusted on the bike, while riding, and at regular intervals.

  • Page 13: Optional Derailleur Guard Installation

    DERAILLEUR GUARD INSTALLATION The Specialized Derailleur guard is available separately through your local Specialized dealer. The guard works with solid or Q/R axle types and is compatible with all Mountain bike models using the 2005-2006 Enduro/Demo derailleur hanger. Guard Part #: 9896-4030...
  • Page 15 NOTE: Bearing and Bolt Kits are available only through your local Specialized dealer. To retain your warranty and for your safety, all maintenance should be performed by your local Specialized dealer. Part # Qty. Part Description 1 . a BB Pivot Bearing 1 .

  • Page 16: Warranty

    ADDITIONAL CONDITIONS This Limited Warranty is made only to the original owner of this new Specialized bicycle or frameset purchased from an authorized Specialized dealer, and it shall remain in force only as long as the original owner retains ownership of the Specialized bicycle. This Limited Warranty is not transferable. In order to exercise your rights under this limited warranty, the bicycle or frameset must be presented to an authorized Specialized dealer, together with a receipt, bill of sale or other appropriate written proof of purchase which identifies the bicycle or frameset by serial number.
  • Page 17 USEFUL PRODUCT LIFE CYCLE Every Specialized bicycle and frameset has a useful product life cycle. The length of that useful product life cycle will vary with the construction and materials of the bicycle or frameset, the maintenance and care the bicycle or frameset receives over its useful product life cycle, and the type and amount of use the bicycle or frameset is subject to. Uses in competitive events, trick riding, ramp riding, jumping, aggressive riding, riding on severe terrain, riding in severe climates, riding with heavy loads, commercial activities and other types of non-standard use can dramatically shorten the useful product life cycle of a Specialized bicycle or frameset.
  • Page 18 15130 Concord Circle Morgan Hill, CA 95037 www.specialized.com © 2006 Specialized Bicycles PN# W2060010...
