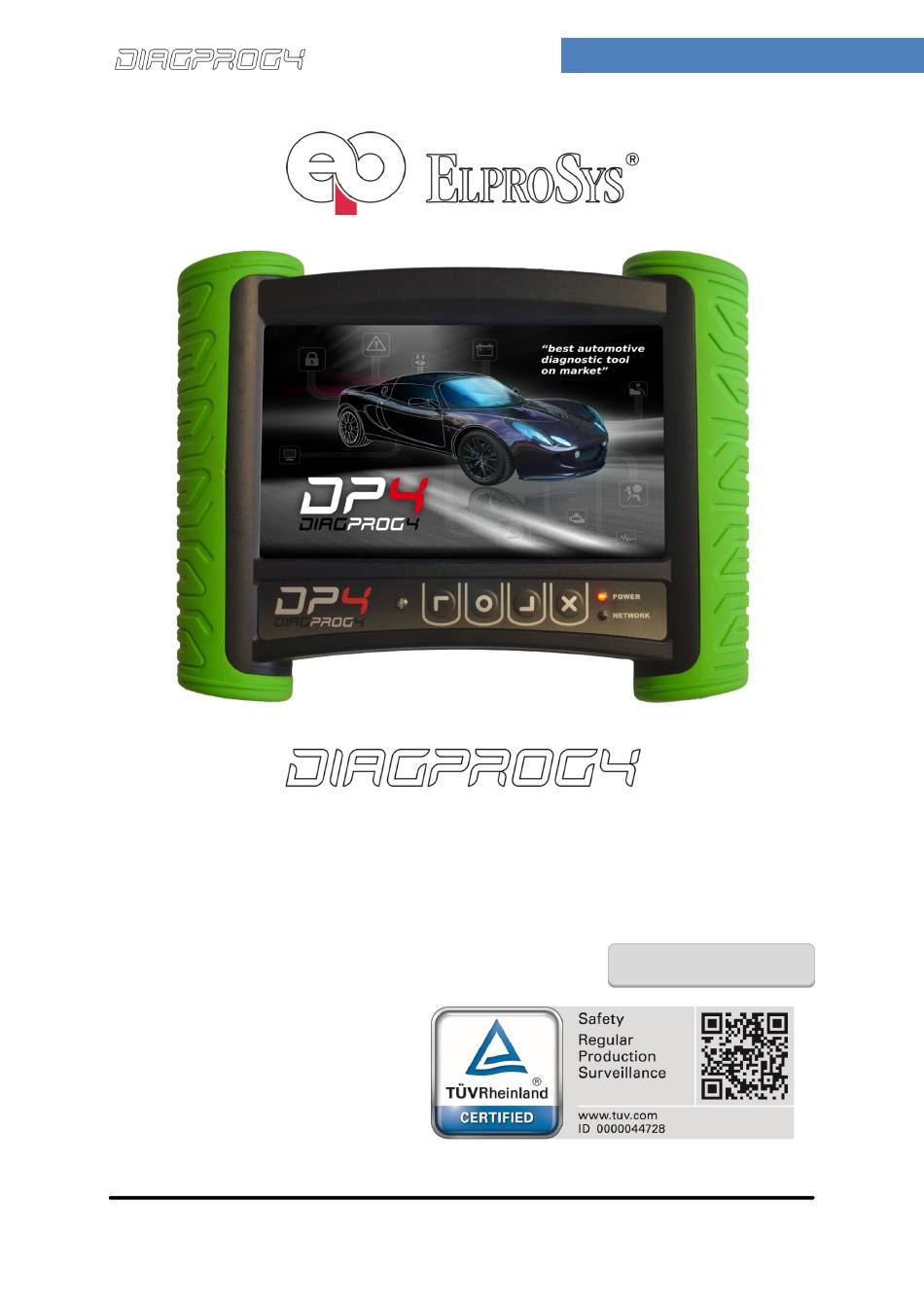

- Page 1 I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER Diagnostic tester Instruction Manual Software ENGLISH Prepared by: Sylwester Czupryna Approved by: Sebastian Żur ElproSys Sp. z o.o. ul. Tarnogórska 140 44-102 Gliwice ©Elprosys June 2015 − Rev. 1.0...
-
Page 2: Table Of Contents
1.7. SETTINGS MENU 1.7.1. SUBMENU TESTS 1.8. TOOLS MENU 1.9. SUBMENU INFORMATION 2. USAGE 2.1. EXEMPLARY PROGRAMMING 2.2. SENDING LOG FILE 2.3. DIAGPROG4 UPDATE 2.4. WIFI – BASIC SETTINGS 3. RECORD OF CHANGES 4. NOTES ©Elprosys June 2015 − Rev. 1.0... -
Page 3: Software
Information about current DiagProg 4 software version can be found on the main screen as shown on the photo below. For example: User serial numer: 999239 Update version: 1.00-009 Hardware version: M4.1 – E4.1 Timelock Date: 2015.06.10 ©Elprosys June 2015 − Rev. 1.0... -
Page 4: Menu - Multi-Touch Screen
Simple gestures — tapping or pressing with fingers — is enough to select menu options. In order to navigate DiagProg 4 menu using keypad press Accept button to activate it and fully use keypad. - Accept, - Cancel, - Top, - Bottom ©Elprosys June 2015 − Rev. 1.0... -
Page 5: Keypad
I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER KEYPAD Keypad below the multi-touch screen is another way to navigate DiagProg4 menu. KEYPAD - BUTTONS BUTTONS FUNCTION Accept Button Button to ACCEPT... - Page 6 Icon for motorbikes Other Icon for quads, scooters, tractors and other vehicles Settings Basic settings Tools Basic tools Information Information about Diagprog4 Special Runs special functions Diagnosis Runs diagnostic functions Accept Icon Allows to accept Cancel Icon Allows to cancel...
-
Page 7: Main Menu
I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER MAIN MENU Main menu is the menu that supports cars, motorbikes and other vehicles. Example - programming menu: ©Elprosys June 2015 − Rev. 1.0... -
Page 8: Menu Icons - Description
CLEAR CRASH DATA Clearing accident data EEPROM READ/WRITE Reading and writing EEPROM content FLASH READ/WRITE Reading and writing FLASH content ADVANCED DIAGNOSTIC FUNCTIONS Advanced diagnostic functions FUNCTIONS FOR ADVANCED USERS Functions for advanced users ©Elprosys June 2015 − Rev. 1.0... -
Page 9: Settings Menu
EXTERNAL UNIT POWER Allows to supply power to connected module POWER SAVING Switch ON/OFF power saving ACTIVE TECHNICAL SUPPORT Allows to automatically send data to ElproSys server for technical support OTHER SETTINGS Settings modification: e.g. contrast, volume SECURITY Additional DiagProg4 protection... -
Page 10: 1.7.1 Submenu Tests
MULTIPLEX test - Advanced CAN bus and J1850 protocol test TOOLS MENU ICON DESCRIPTION UNIT CALCULATOR Enables metric conversion HEXEDITOR File editing in hexadecimal system EEPROM PROGRAMMER Allows to read / write full EEPROM memory ©Elprosys June 2015 − Rev. 1.0... -
Page 11: Submenu Information
Allows to supply power to connected module CAN TERMINATION CONTROL Enables/ disables High Speed CAN Termination SENDING LOG FILE Allows to send *.LOG file to ElproSys server for technical support. RESTART DIAGPROG4 Immediate restart in order to reload the operating system... -
Page 12: Usage
I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER USAGE EXEMPLARY PROGRAMMING MENU FOR CAR BRAND SELECTION MENU FOR CAR MODEL SELECTION MENU FOR PROGRAMMING MODULE SELECTION MENU FOR THE TYPE OF PROGRAMMING SELECTION PROGRAMMING MENU ©Elprosys June 2015 − Rev. 1.0... -
Page 13: Sending Log File
I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER SENDING LOG FILE DiagProg4 will send LOG file to ElproSys server in case of any error during module programming in order to obtain Active Technical Support. SENDING LOG FILE MANUALLY Please select TOOLS icon , next select SENDING LOG FILE option from the menu. -
Page 14: Diagprog4 Update
DIAGNOSTIC TESTER DIAGPROG4 UPDATE Connect Diagprog4 to PC via mini USB cable (Linux, Unix, MAC OS, Android or Windows) and it will appear as an additional external drive. Save update.dpu file, received directly from ElproSys company or its official representative in the main folder of micro SDHC card. - Page 15 I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER ©Elprosys June 2015 − Rev. 1.0...
-
Page 16: Record Of Changes
I N S T R U C T I O N M A N U A L DIAGNOSTIC TESTER RECORD OF CHANGES Date Author Changes ©Elprosys June 2015 − Rev. 1.0... -
Page 17: Notes
............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................©Elprosys June 2015 − Rev. 1.0...
