INSTALLATION GUIDE
SUBJECT: Rockhopper Adjustable Dropout Installation
FROM: Engineering Department
DATE: 06/2/07
To ensure correct installation of the adjustable dropouts, please read and familiarize yourself
with the following steps:
Please read the following instructions. If you have any doubt regarding your mechanical ability and/or installation of
this product, visit your local authorized dealer. Specialized recommends that the dropouts be installed using a torque
wrench, by a qualified mechanic.

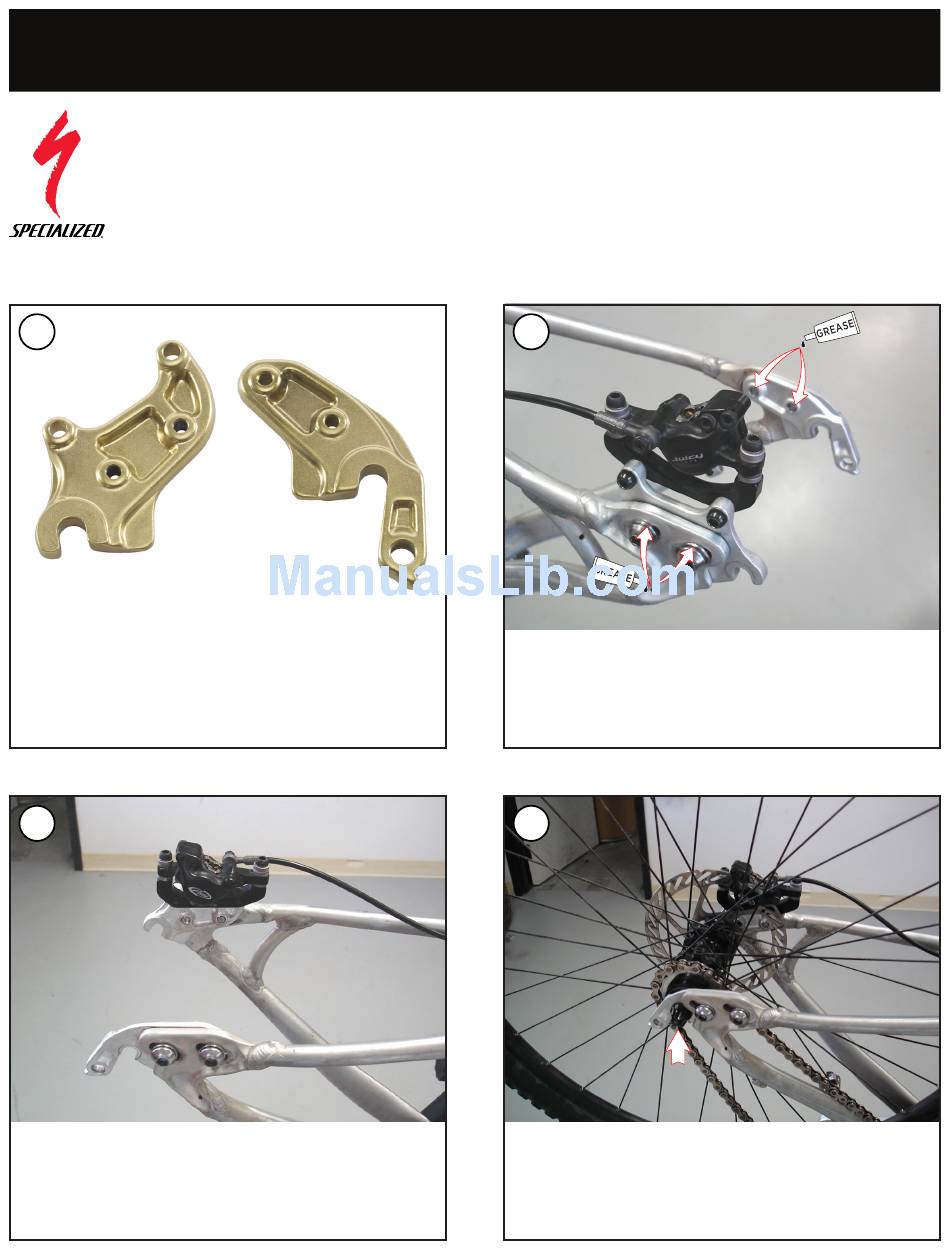

1
Rockhopper
Left Dropout
9898-4240
Rockhopper models are equipped with a right dropout with
an integrated derailleur hanger and a left dropout.
Centrum models are equipped with a right dropout without an
integrated derailleur hanger and a left dropout.
After-Market dropouts are offered with the built-in derailleur hanger
only and can be used with gears or as a single-speed dropout.
3
Install the disc brake.
Rockhopper
Right Dropout
9898-4245
2
Install the left and right dropouts. Do not tighten the dropout
bolts yet, leave them 1/4 turn loose.
NOTE: Make sure the bolt threads and washers are greased.
4
Install the rear wheel in the loose dropouts. Tightening the
quick-release will self-align the wheel and dropouts.


Advertisement

Table of Contents
loading

  Related Manuals for Specialized Rockhopper Adjustable Dropout RH Dropout

  Summary of Contents for Specialized Rockhopper Adjustable Dropout RH Dropout

  • Page 1 Please read the following instructions. If you have any doubt regarding your mechanical ability and/or installation of this product, visit your local authorized dealer. Specialized recommends that the dropouts be installed using a torque wrench, by a qualified mechanic.
  • Page 2 WARNING! Insufficient torque may damage the dropouts/frame and can result in serious personal injury or death. 250 in-lbf Please note all instructions are subject to change for improvement without notice. Please visit www.specialized.com/bc/SBCDownloads.jsp for periodic tech updates. Rev.1, June 2007...
