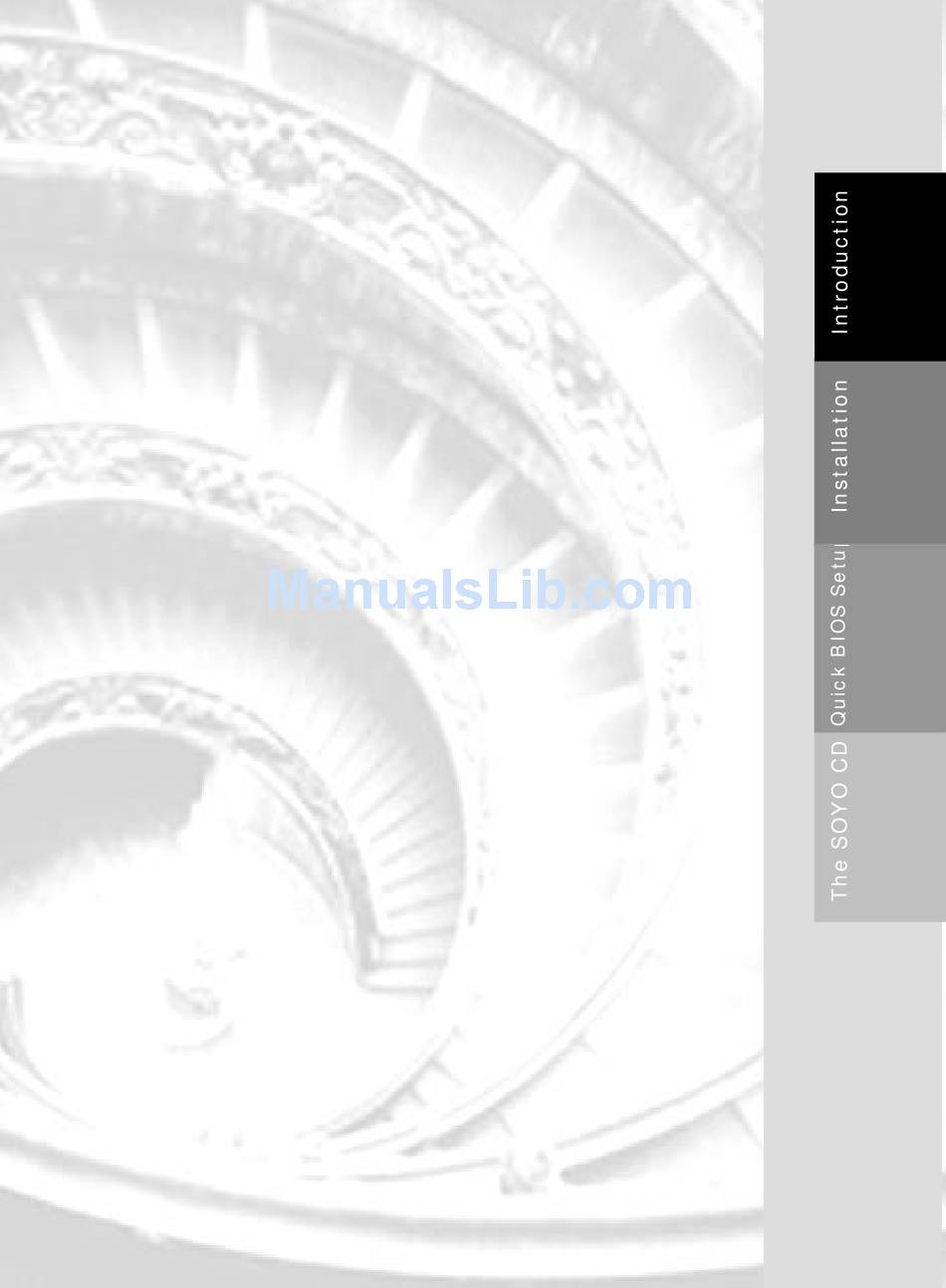

Page 1: Quick Start Guide
SY-5EHM/5EH5 V1.0/V1.1 Super 7 Motherboard Quick Start Guide ™ Tested To Comply With FCC Standards FOR HOME OR OFFICE USE 100% POST CONSUMER RECYCLED PAPER... - Page 2 System Model Name Hardware Revision CPU Model On Board Memory/L2 Cache System BIOS Best regards, : SOYO COMPUTER INC. : SY-5EHM/5EH5 : N/A : Intel Pentium 200/66Mhz : PC100 SDRAM DIMM 32MBx1 /1MB : Award Modular BIOS V4.51PG, An Energy Star Ally Copyright ©...
-
Page 3: Declaration Of Conformity
The product was tested with the following configuration: Monitor: SONY/AK8GDM17SE2T Modem: ACEEX/IF AXDM1414 This declaration is given for the manufacturer SOYO COMPUTER INC. No.21, Wu-Kung 5 Rd., Hsing Chuang City, Taipei Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. 6F, No. 106, Hsin Tai Wu Rd., Sec. 1, His Chih, Taipei Hsien, Taiwan, R.O.C. - Page 4 Our customers should ensure that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights.
- Page 5 The 5EHM/5EH5 V1.x Super 7 ™ Motherboard This Quick Start Guide The Installation CD-ROM SOYO 3-in-1 Bonus Pack CD-ROM (Norton AntiVirus, Ghost and Virtual Drive) One IDE Device Flat Cable One Floppy Disk Drive Flat Cable One dual 25-pin parallel with 25-pin flat cable and 9-pin serial...
-
Page 6: Key Features
SY-5EHM/5EH5 V1.x Quick Start Guide SY-5EHM/5EH5 V1.x Motherboard Layout Flash BIOS PCI Slot #3 ISA Slot #3 ISA Slot #2 ISA Slot #1 Power Keylock Turbo HDD LED SW2 JP1 JP12 100MHz AGP Super 7 ™ platform Ø Ø 512KB/1MByte L2 cache Supports CPU voltage from 2.0V to 3.5V Ø... -
Page 7: Installation
SY-5EHM/5EH5 V1.x Quick Start Guide Installation To avoid damage to your Motherboard, follow these simple rules while handling this equipment: Before handling the Motherboard, ground yourself by grasping an unpainted portion of the system's metal chassis. Remove the Motherboard from its anti-static packaging. Hold it by the edges and avoid touching its components. -
Page 8: Install The Motherboard
SY-5EHM/5EH5 V1.x Quick Start Guide Install the Motherboard Follow the steps below in order to perform the installation of your new 5EHM/5EH5 V1.x Super 7 ™ Motherboard. Install the CPU Step 1. ® To mount the Pentium processor that you have purchased separately, follow these instructions. - Page 9 SY-5EHM/5EH5 V1.x Quick Start Guide Set SW2 ,JP1 for CPU Voltage Step 2. SW2 is used to set the CPU core voltage, JP1 is used to select the CPU voltage type single voltage or dual voltage. Please verify the correct voltage settings with your dealer before installation. Use the following table to set SW2, JP1 to the proper voltage value according to the specifications marked on your CPU: Processor...
- Page 10 SY-5EHM/5EH5 V1.x Quick Start Guide Processor Voltage IDT X86 CPU C6/2-225* 3.52 V IDT X86 CPU 2-266 The IDT X86 CPU C6/2 comes in several versions with different. Voltage. IDT X86 CPU 2-300 Please ask your dealer for the correct voltage. IDT X86 CPU C6/2-200* 3.3 V IDT X86 CPU 2-233*...
- Page 11 SY-5EHM/5EH5 V1.x Quick Start Guide Processor Multiplier 2.5x Cyrix 6x86 MX PR 200 2.0x Cyrix 6x86 MX PR 233 2.5x Cyrix 6x86 MX PR 266 2.5x 3.5x Cyrix MII 300 4.0x Cyrix MII 333 3.5x Cyrix MII 350 Cyrix MII 366 2.5x P54C P100...
- Page 12 SY-5EHM/5EH5 V1.x Quick Start Guide Jumper JP7 is used to indicate the frequency of the CPU bus clock to the ETEQ chipset. Jumpers JP9 and JP10 are used to determine that the SDRAM is running at the frequency of the CPU bus clock or at that of the AGP clock.
- Page 13 SY-5EHM/5EH5 V1.x Quick Start Guide Attach Connectors Step 5. This section tells how to connect internal peripherals and power supply to the Motherboard. Internal peripherals include IDE devices (HDD, CD-ROM), Floppy Disk Drive, Front Panel Devices (Turbo LED, Internal Speaker, Reset Button, IDE LED, and KeyLock Switch.), Wake-On-LAN card, VGA card, Sound Card, and other devices.
-
Page 14: Memory Configuration Table
SY-5EHM/5EH5 V1.x Quick Start Guide Configure Memory Step 6. Your board comes with one SIMM Bank (2 modules) and two DIMM sockets, providing support for up to 512MB of main memory using DIMM modules from 8MB to 256MB. For 66MHz host bus CPUs use 12ns or faster DIMM modules; for 83MHz host bus CPUs use 8ns modules. -
Page 15: Quick Bios Setup
SY-5EHM/5EH5 V1.x Quick Start Guide Quick BIOS Setup After the hardware installation is complete, turn the power switch on, then press the <DEL> key during the system diagnostic checks to enter the Award BIOS Setup program. The CMOS SETUP UTILITY will display on screen. Then, follow these steps to complete the quick BIOS setup. - Page 16 SOYO Motherboards and other products. Step 1. Insert the SOYO CD into the CD-ROM drive The SOYO CD will auto-run, and the SOYO CD Start Up Menu will be shown as below. (SOYO CD Start Up Program Menu) If you use Windows 95/98, the SOYO CD Start Up Program automatically detects which SOYO Motherboard you own and displays the corresponding model name.
- Page 17 Please select your manual in the box below and click OK. 686 boards: The user's manual files included on the SOYO CD are in PDF (Postscript Document) format. In order to read a PDF file, the appropriate Acrobat Reader software must be installed in your system.
- Page 18 After installation of windows, you will need to install the ETEQ drivers. Follow the instruction below. Click the Enter SOYO CD button to display the list of drivers that can be installed on your Motherboard. The start-up program displays the drivers available for the 5EHM/5EH5 V1.x and the Windows version you use.
- Page 19 Note: When the installation is complete, most drivers require to restart your system before they can become active. If you want to see all the drivers available on the SOYO – CD, click the Display all drivers on the SOYO CD button. Do NOT install drivers that are not suitable for your board, otherwise your system may crash.
- Page 20 Internet Explorer* browser. Click YES to install the HTML browser. After the installation is complete, please restart your system. Then re-run the SOYO CD and you will be able to browse the SOYO HTML database. (* Internet Explorer is a Microsoft Trademark)
- Page 21 How to contact us: If you are interested in our products, please contact the SOYO sales department in the region you live. If you require Technical Assistance, please contact our Technical Support in the region you live. SOYO prefers Email as communication medium, remember to always add to the email the country that you live in.
- Page 22 Sales: tel: 852-27109810 fax: 852-27109078 E-mail: soyo@hkstar.com Technical Support: tel: 852-27109810 fax: 852-27109078 E-mail: soyo@hkstar.com SOYO China (Gin Mei Jei) Region Covered: All of China Sales: Tel: 86-10-62510089 fax: 86-10-62510388 E-mail: soyo@public.bta.net.cn Technical Support: Tel: 86-10-62510089 fax: 86-10-62510388 E-mail: soyo@public.bta.net.cn...
- Page 24 Edition: August 1999 Version 1.4 SY-5EHM/5EM5 V1.0/V1.1 SERIAL...
