Munters MWI Series Quick Assembly Manual

Quick Assembly Guide

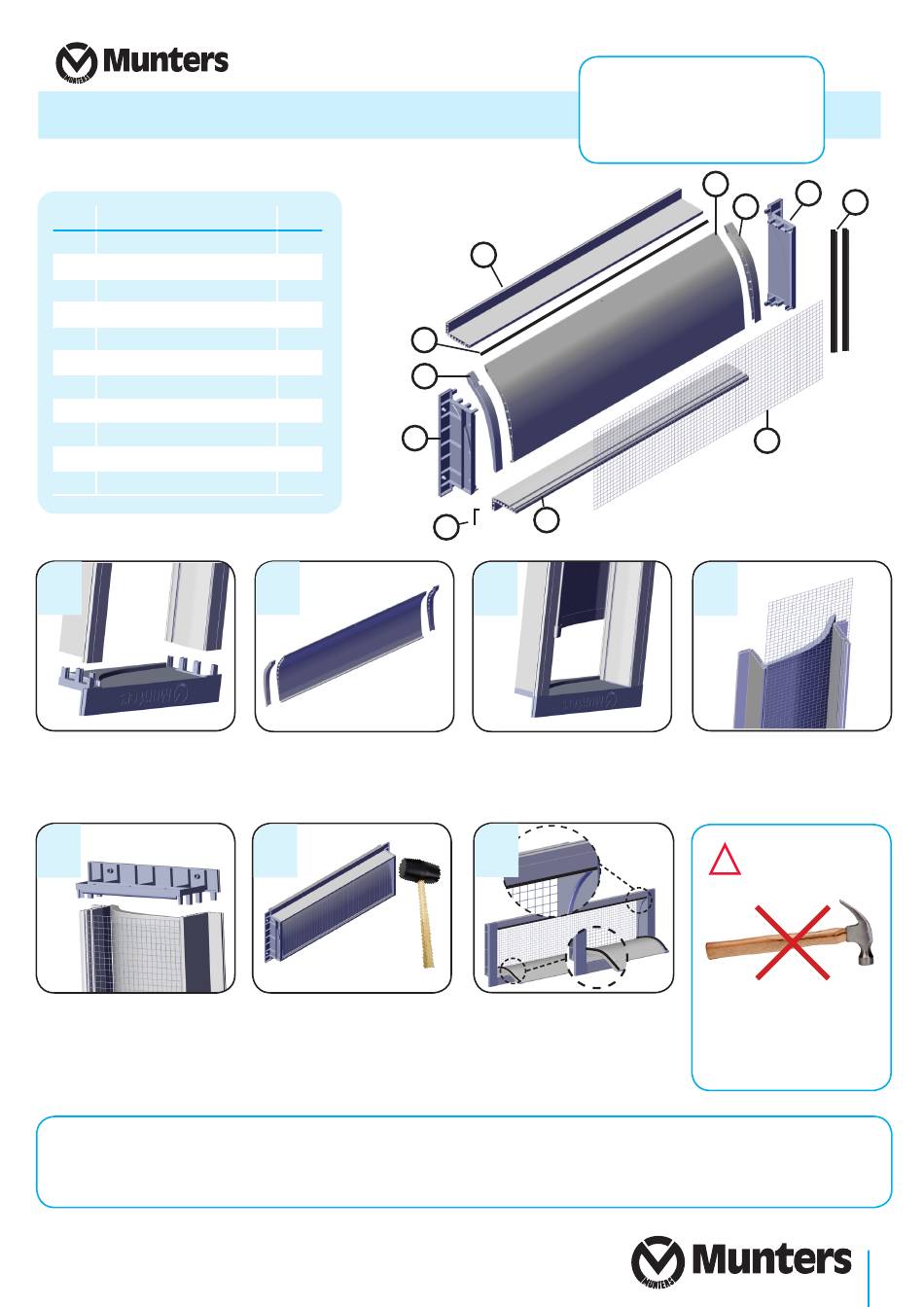

Parts List:
Item Part Name/Description
1 Left Side Support
2 Right Side Support
3 Top header
4 Bottom header
5 Door, curved
6 Left side door, end cap
7 Right side Door, end cap
8 Gasket seal
9 Metal Guard
10 Rubber seal
11 L-screw hook
1
Insert top and bottom
headers into the right-side
lateral support.
5
Slide insert the left side
lateral support.
NOTE: The following guidelines should be used and closely followed when assembling and installing MWI.
In order to assure proper performance and correct functioning of the inlets, the installer must understand the importance of quality construction-work and use
quality materials. Attention to details relating the assembly work, proper sealing or prevention of air leaks is a must and must be undertaken by the installer.
WARNINGS: Do not overtighten the screws! Tighten until flush. Do not dent the housing! Overtightening the screws will result in damage to MWI.
Ag/MIT/IGB-2414-10/16 Rev 1.0
QTY
1
1
1
1
1 10
1
6
1
2
1 11
1
2
2
Insert the left and right
side end caps onto the
curved louver. Add seal.
6
Properly secure the MWI
lateral supports using
a rubber mallet. Use
caution!
3
4
11
3
Slide the curved louver in
the Bottom header slot
7
Insert the rubber seal in
the top header slot and
along door sides.
MWI
Side Wall Inlet
5
2
7
9
4
Slide the metal grid in the
headers slot
WARNING:
!
Do Not use metal hammer
to secure the MWI. The
use of a metal hammer can
result in damage to MWI.
8
