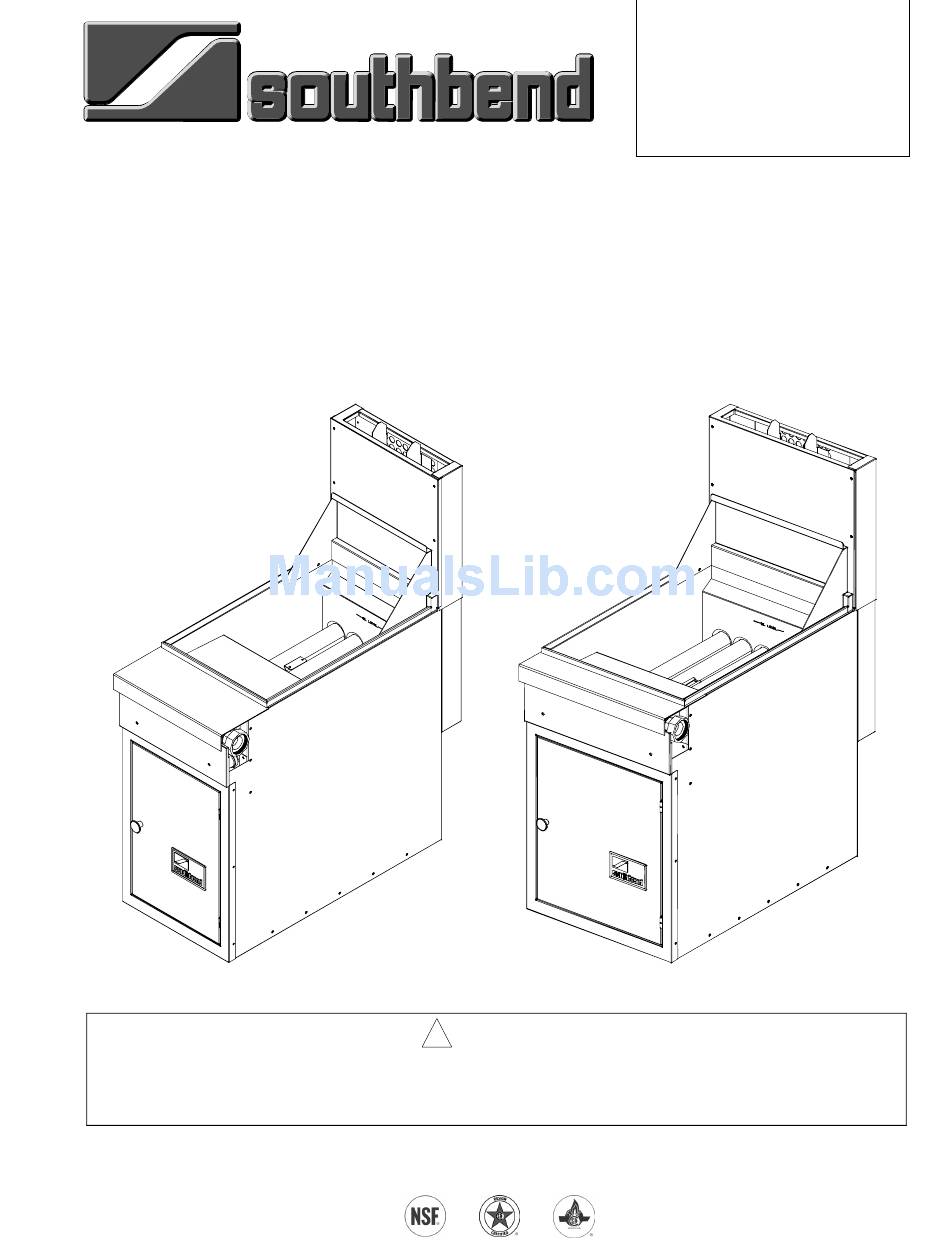

Model P16-FR45 and P20-FR65
Sectional Deep Fryer
Model P16-FR45
Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operating and maintenance instructions thoroughly before
M
1182110
1
ANUAL
REV
$18.00
OPERATOR'S MANUAL
!
installing or servicing this equipment.
1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
www.southbendnc.com
WARNING
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
Model P20-FR65
SECTIONAL DEEP FRYER
MANUAL SECTION SR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P16-FR45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southbend P16-FR45

Summary of Contents for Southbend P16-FR45

  • Page 1 OPERATOR’S MANUAL Model P16-FR45 and P20-FR65 Sectional Deep Fryer Model P16-FR45 Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before 1100 Old Honeycutt Road, Fuquay-Varina, NC 27526...

  • Page 2: Safety Precautions

    Southbend Sectional Deep Fryers are intended for commercial use only. Not for household use. Warranty will be void if service work is performed by other than a qualified technician, or if other than genuine Southbend replacement parts are installed.

  • Page 3: Table Of Contents

    RETAIN THIS MANUAL FOR FUTURE REFERENCE. MODEL NUMBERS This manual is for the Southbend Sectional Deep Fryer models P16-FR45 and P20-FR65, which can be ordered with a front-to-back depth of 36" or 42". The serial plate is located inside the front door on the left side.

  • Page 4: Specifications

    PECIFICATIONS PECIFICATIONS DIMENSIONS OF MODEL P16-FR45 Top View Front View Width Depth Depth Option 16.0" 31.8 36.0" 6.0" 36" (406) (808) (914) (152) 16.0" 37.8 42.0" 6.0" 42" (406) (960) (1067) (152) Height Front Gas Connection 30.0" 36.0" 54.0" 33.8...

  • Page 5: Deep Fryer

    ECTIONAL RYER DIMENSIONS OF MODEL P20-FR65 Top View Front View Width Depth Depth Option 20.0" 31.8 36.0" 6.0" 36" (508) (808) (914) (152) 20.0" 37.8 42.0" 6.0" 42" (508) (960) (1067) (152) ’ PERATOR Height Front Gas Connection 30.0" 36.0" 54.0"...

  • Page 6: Electrical Requirement

    If the fryer has the optional rear gas connection, it has a 1" NPT male connector located on back (see illustrations on pages 4, 5, and 8). Model Burners Gas Type Natural Main Propane P16-FR45 Natural Pilot Propane Natural Main Propane P20-FR65...

  • Page 7: Installation

    ECTIONAL RYER NSTALLATION Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1, Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane Installation Code, CAN/CGA-B149.2, as applicable. These installation procedures must be followed by qualified personnel or warranty will be void. Local codes regarding installation vary greatly from one area to another.
  • Page 8 NSTALLATION Step 2: Install Flue Riser The flue riser assembly is packed separately in the shipping crate. Attach the flue riser to the top rear of the fryer as shown in the illustration below. Flue Riser Front Gas Manifold Connection (both sides) ECTIONAL Optional...
  • Page 9 ECTIONAL RYER Step 3: Install the Legs (or Casters) and Restraint A set of legs or casters is packed with the fryer. A threaded pad is fastened to the base frame at each corner (see illustration on page 8). Each leg or caster has a similar mating thread. When casters have been ordered, the casters are provided with a Zerk fitting for proper lubrication when required.

  • Page 10: Step 5: Gas Connection

    (natural gas or propane). The fryer should be connected ONLY to the type of gas for which it is equipped. All Southbend equipment is adjusted at the factory; however, pilot height should be checked at installation and adjusted, if necessary (see page 24).
  • Page 11 ECTIONAL RYER ALL PIPE JOINTS AND CONNECTIONS MUST BE TESTED THOROUGHLY FOR GAS LEAKS. USE ONLY SOAPY WATER FOR TESTING ON ALL GASES. NEVER USE AN OPEN FLAME TO CHECK FOR GAS LEAKS. ALL CONNECTIONS MUST BE CHECKED FOR LEAKS AFTER THE UNIT HAS BEEN PUT INTO OPERATION.
  • Page 12 Step 6: Check Clearances and Ventilation Select a firm, level location for your Southbend fryer. Leave clearance, whenever possible, so that access from the rear is possible to permit cleaning. If the unit is to be set on non-combustible flooring, such as a concrete slab, 3 inches minimum toe room must be provided to prevent restriction of the air opening in the bottom of the unit.

  • Page 13: Step 7: Check Installation

    ECTIONAL RYER Step 7: Check Installation IF YOU SMELL GAS DURING THE LIGHTING PROCEDURE, IMMEDIATELY SHUT OFF THE GAS SUPPLY UNTIL THE LEAK HAS BEEN CORRECTED. The following items should be checked by a qualified service technician before or within the first 30 days of operation: 1.

  • Page 14: Operation

    These procedures must be followed by qualified personnel or warranty will be voided. The Southbend Sectional Deep Fryer is an immersion tube fryer. This is the most efficient method of transmitting heat into the oil. The tubes are actually large heat exchangers. Each tube is heated by a burner at its front that propels its flame and heat into the tube, toward the rear, where it is vented into a flue box.

  • Page 15: Shutdown Procedure

    2. When the fryer is new, fill the frypot with water and clean thoroughly (see “Weekly Cleaning” on page 20) in order to remove protective coatings and any foreign matter. 3. The recommended solid shortening capacity for the fry pot is 45 pounds for model P16-FR45 units and 65 pounds for model P20-FR65 units.

  • Page 16: Automatic Pilot Valve

    In the event the fryer shuts down due to this condition, the oil must be cooled to below 400°F before the pilot burner can be re-ignited. When the oil has cooled, use the “LIGHTING” procedure on page 14 to place the fryer back in operation. If the problem persists, contact your Southbend Service Representative or the Southbend Service Department.

  • Page 17: Cooking Hints

    ECTIONAL RYER OOKING INTS USER TIPS • Smoking oil means that the temperature is too high, or that the oil has broken down. • Gum in frypot denotes a need for thorough cleaning (see “Weekly Cleaning” on page 20) • Use different oil for oily foods (mackerel, nutmeg, etc.) than for foods with water-soluble flavors (potatoes, onions, etc.).
  • Page 18 OOKING INTS FRYING DON’TS • Don’t turn on the fryer with no shortening in the frypot. • Don’t fill the frypot above the line on rear of frypot. • Don’t allow oil in frypot to fry down to the point where there is insufficient oil in which to fry a full load. •...

  • Page 19: Cleaning

    RYER LEANING Southbend equipment is constructed with the best quality materials and is designed to provide durable service when properly maintained. To expect the best performance, your equipment must be maintained in good condition and cleaned daily. Naturally, the frequency and extent of cleaning depends on the amount and degree of usage.

  • Page 20: Weekly Cleaning

    SEMIANNUAL CLEANING 1. Examine and clean the venting system. 2. Have your Southbend Authorized Service Agency or another qualified service technician clean and adjust the unit for maximum performance. Consult the Southbend Authorized Parts/Service Distributor list for the Authorized Service Representative in your area or contact Southbend at 1-800-348-2558.
  • Page 21 LEANING ECTIONAL RYER Darkened areas, called “heat tint,” sometimes appear on stainless steel surfaces where the area has been subjected to excessive heat. These darkened areas are caused by thickening of the protective surface of the stainless steel and are not harmful. Heat tint can normally be removed by the above cleaning techniques, but tint which does not respond to that procedure calls for a vigorous scouring in the direction of the polish lines, using SCOTCH-BRITE scouring pads or a STAINLESS scouring pad in combination with a powered cleanser.

  • Page 22: Service

    Adjustments and service work may be performed only by a qualified technician who is experienced in, and knowledgeable with, the operation of commercial gas cooking equipment. However, to assure your confidence, contact your Southbend Service Representative for reliable service, dependable advice or other assistance, and for genuine factory parts.
  • Page 23 ECTIONAL RYER CHECKING AND ADJUSTING PRESSURE REGULATOR The combination gas valve and pressure regulator is factory set at 4" W.C. for natural gas and 10" W.C. for propane gas. To check the manifold pressure, do the following: 1. Turn thermostat “OFF” (lowest position) and combination gas valve knob to the “PILOT” setting. 2.
  • Page 24 Obtain a natural-to-LP gas conversion kit (part number 4440499) from your authorized Southbend parts distributor. The kit comes with five LP gas orifice spuds (of which four are used by a model P16-FR45 and five by a model P20-FR65). In the following procedure, refer to the parts diagrams on pages 35 and 37, and the figures below on the right.

  • Page 25: Troubleshooting

    ECTIONAL RYER TROUBLESHOOTING Problem Burners do not come on Pilot will not stay ignited Pilot produces carbon deposits Burners produce carbon deposits NOTE: Vibrations or shock caused by shaking or pounding baskets on top surface or by slamming door may cause Hi-Limit Control Switch to open.

  • Page 26: Wiring Diagram

    ERVICE Wiring Diagram GAS INLET COMBINATION GAS VALVE PILOT ADJUSTMENT REGULATING THERMOSTAT Notes: 1. High limit switch is set to 450 ° F. 2. Voltage measured across TH/PP and TP with main burner on should be greater than 100 mV. REGULATOR ADJUSTMENT PILOT GAS...

  • Page 27: Parts

    ON THIS EQUIPMENT. The serial plate is located inside the front door on the left side. Replacement parts may be ordered either through a Southbend Authorized Parts Distributor or a Southbend Authorized Service Agency. When ordering parts, please supply the Model Number, Serial Number, Part Number, and Description.
  • Page 28 ARTS Frypot Parts for Model P16-FR45 Part Number Description 1182221 Frypot weld assembly 1182262 Baffle weld assembly 1182238 Valve, ball, 1-1/4 in 1036618 Thermostat bulb clamp 1140700 Screen, tube, 14" fryer P9181 Basket, fryer, 14", single 1176845 Drain pipe extension...
  • Page 29 ECTIONAL RYER Frypot Parts Model P20-FR65 Part Number Description 1182005 Frypot weld assembly 1182021 Baffle weld assembly 1176853 Valve, ball 1036618 Thermostat bulb clamp 1140701 Screen, tube, 18" fryer P9183 Basket, fryer, 18", single 1176845 Drain pipe extension 1176846 Clean out rod (optional) * not shown on drawing.
  • Page 30 ARTS Cabinet Parts for Model P16-FR45 See drawing on following page. Part Number Description 1172716 Nameplate, Southbend 1-2849 Knob, door 2391 Cabinet door assembly 1164132 Door striker 1164133 Catch, door 2835 Body front 1164541 Valve panel 1182138 Manifold assembly, complete 1182372 Cover subassembly, 16"...
  • Page 31 ARTS ECTIONAL RYER Cabinet Parts for Model P16-FR45 See parts list on previous page. ’ 1182110 PERATOR ANUAL...
  • Page 32 ARTS Cabinet Parts for Model P20-FR65 See drawing on following page. Part Number Description 1172716 Nameplate, large 1-2849 Knob, door 1183730 Door assembly, complete 1164132 Door striker 1164133 Catch, door 1183724 Body front 1183722 Valve panel 1183709 Manifold assembly, complete 1183740 Cover subassembly, frypot 1183761...
  • Page 33 ARTS ECTIONAL RYER Cabinet Parts for Model P20-FR65 See parts list on previous page. ’ 1182110 PERATOR ANUAL...
  • Page 34 ARTS Gas Train Parts for Model P16-FR45 See drawing on following page. Part Number Description 1165400 Rear gas bracket (for units with optional rear gas connection) 1163527 Tail pipe (for units with optional rear gas connection) 1146905 Elbow, st. black., 1" 90 deg (for units with optional rear gas connection)
  • Page 35 ECTIONAL RYER Gas Train Parts for Model P16-FR45 See parts list on previous page. ’ PERATOR 1182110 ANUAL ARTS...
  • Page 36 ARTS Gas Train Parts for Model P20-FR65 See drawing on following page. Part Number Description 1183744 Support, rear gas (for units with optional rear gas connection) 1183743 Nipple, pipe, blk 1" x 28" (for units with optional rear gas connection) 1146905 Elbow, st.
  • Page 37 ARTS ECTIONAL RYER Gas Train Parts for Model P20-FR65 See parts list on previous page. ’ 1182110 PERATOR ANUAL...

  • Page 38: Deep Fryer

    ECTIONAL RYER Notes: ’ 1182110 PERATOR ANUAL...
  • Page 39 ECTIONAL RYER Notes: ’ 1182110 PERATOR ANUAL...
  • Page 40 When service is needed, contact a Southbend Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your unit.
