Southbend BGLM-30 Specification Sheet

Standard Features

- One-piece, 10-gauge, stainless-steel pan with coved corners
and polished interior
- 30-gallon (114-litre) or 40-gallon (152-litre) pan capacity
- Angled front for easy pouring
- 5/8" (16mm) thick stainless-steel clad plate for even heat
transfer over entire cooking surface
- Spring-assisted hinged stainless-steel cover with handle
- No-drip condensate guide
- Removable pour strainer
- Manual tilt with hand crank for complete emptying of pan
- Permanently lubricated, self-contained, gearbox tilt
mechanism
- Integrally mounted controls: thermostat with power switch,
ignition indicator light, heating indicator light
- 100-450°F (38-232°C) temperature range
- Three-trial, direct spark ignition
- Tilt of more than 5° shuts-off burners
- High-temperature safety cut-off
- Narrow footprint: 36" (914mm) for model BGLM-30, 48"
(1219mm) for model BGLM-40
- Welded stainless-steel tubular legs with bullet feet on front
legs and flanged adjustable feet on back legs
- 100,000 BTU (BGLM-30) or 125,000 BTU (BGLM-40) rating
- Warranty one year parts and labor
Exterior Finish: #4 finish stainless steel.
Skillet Pan: One-piece, coved-corner, 10-gauge stainless
steel with polished interior. Angled front for easy pouring and
narrow footprint. 5/8" (16mm) thick stainless-steel clad plate.
Spring-assisted hinged stainless-steel cover with handle.
tilting Mechanism: Manual with hand crank. Permanently
lubricated gear box. Sufficient tilt to empty pan completely.
Heat Controls: Thermostat with integral power switch and
Form BGLM Rev 0 (05/07)



Standard COnStrUCtIOn SPECIFICatIOnS

heat range of 100-450°F (38-232°C). Ignition-indicator light
and burners-are-on indicator light. Tilt switch shuts off burners
when pan is tilted more than 5°. High-temperature cut-off at
500°F (260°C).
Base and Legs: Stainless steel with all-welded 1-5/8"
(41mm) stainless-steel pipe frame with adjustable bullet feet
and rear legs with adjustable flanged feet for bolting to floor.
www.yatesgd.com www.yatesgraphicdesign.com
G
BGLM-30 (30 gallon)
BGLM-40 (40 gallon)

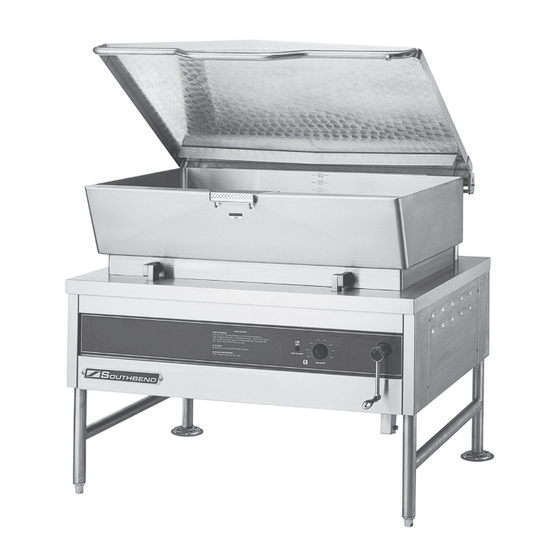

Model BGLM-30
T s
as ilTinG killeT
with Manual tilt
Printed in USA
