SEZ Series Countertop Steamers
For Models SEZ/3 & SEZ/5 Built After February 15, 2001
Improper installation, operation, service, or maintenance can cause property damage, injury, or death.
Read this manual thoroughly before installing and operating this equipment.
(800) 348-2558 or (919) 552-9161 FAX (800) 348-2558 or (919) 552-9798
M
1183437
ANUAL
$18.00
OPERATOR'S MANUAL
Super Simple Steam
!
1100 Old Honeycutt Road, Fuquay-Varina, NC 27526

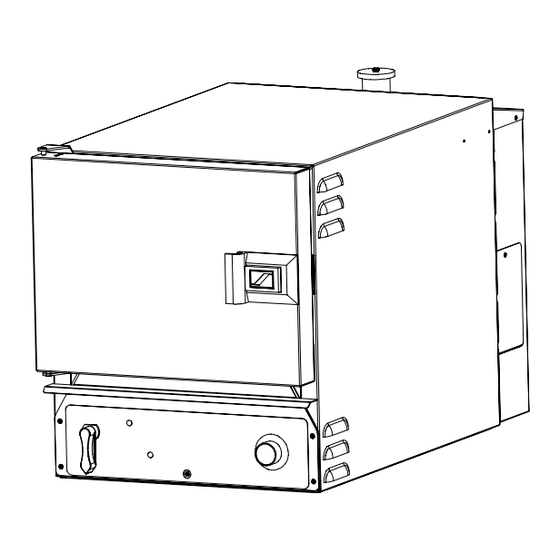

Model SEZ/3
WARNING
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #: __________________________
Serial #: __________________________
Date Purchased: ___________________
COUNTERTOP STEAMER
MANUAL SECTION ST
