Unitary Products Group
Supersedes:035-15826-002 Rev. H (0603)
042B only
28
7
8
12
11
10
16
AC SERIES - 12 SEER - X3
SPLIT AIR CONDITIONER
AC018X1222A
AC024X1222A
AC030X1222A
AC036X1222A
6
1
2
5
14
23
20
19
18
035-15826-002 Rev. I (0903)
AC042X1221A
& B
AC048X1222A
AC060X1222A
AC060X1223A
3
4
17
15
1 of 4
Advertisement
Summary of Contents for Source 1 AC018X1222A

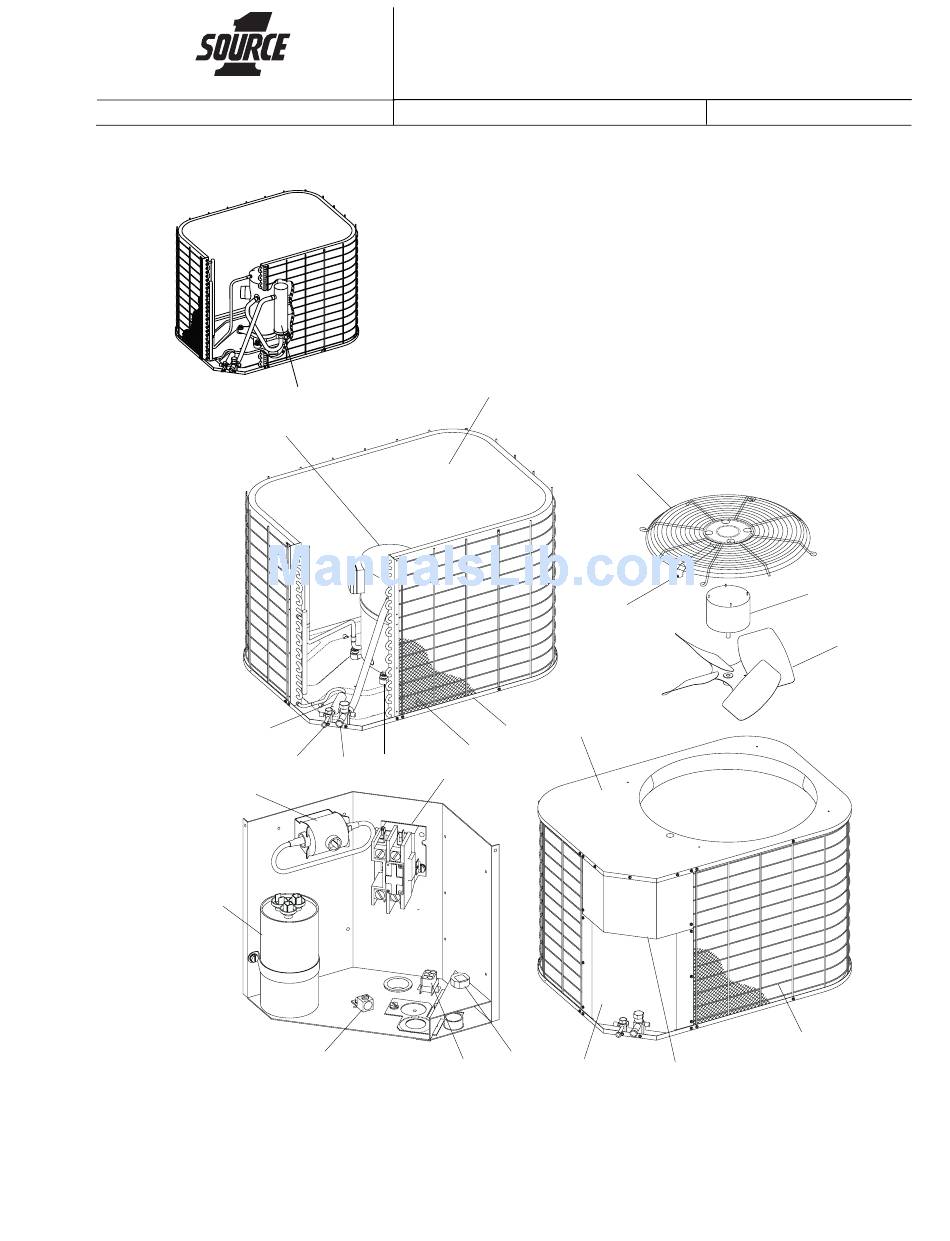

- Page 1 HVAC SERVICE PARTS Unitary Products Group AC SERIES - 12 SEER - X3 SPLIT AIR CONDITIONER Supersedes:035-15826-002 Rev. H (0603) AC018X1222A AC024X1222A AC030X1222A AC036X1222A 042B only 035-15826-002 Rev. I (0903) 1 of 4 AC042X1221A & B AC048X1222A AC060X1222A AC060X1223A...
- Page 2 New replacement parts shown in bold face type at the first printing of parts list dated 9/03. Major components and suggested stocking items are shown with shaded item number. “<“ Across from row indicates a change in that row. --- Not applicable to specified model. AC018X1222A AC024X1222A 026-35511-018 026-35511-018...
- Page 3 035-15826-002 Rev. I (0903) Models 42, 48, and 60 ITEM DESCRIPTION Fan Guard Wireway Fan Motor Fan Blade 22” Diameter Outdoor Coil Assembly Compressor Compressor Mount (Pkg. of 4) Compressor Mount (4 req’d.) Dual Capacitor (40/5 MFD) Dual Capacitor (45/5 MFD) Dual Capacitor (80/5 MFD) Contactor (30 amp) Contactor (40 amp)
- Page 4 4 of 4 Part Number 026-32621-000 026-34627-001 026-34627-002 Part Number 2ET07700224 2ET07700324 2HU06700124 2LA06700224 2PS06701606 2SA06702306 2SA06706206 2SA06703706 2SA06702006 2SA06714206 2SA06702406 2SA06706006 2TB08700124 2TB17700324 2TD06700124 2TH07700124 2TH13700424 TO ORDER AUTHORIZED FACTORY REPLACEMENT PARTS - Contact your Source1 HVAC Parts Distributor or visit our website at www.Source1Parts.com for a Distributor and Dealer listing.
