3. Connecting to the Remote Controller

1. Connect to the connector CN2 on the Remote controller board.
2. Press the connector for the Timer Adapter into the CN2 connector.
The connector can only be connected in one direction only. Do not force the connection.

4. Locally Procured Wiring

With the Timer Adapter, variations of connection method with the locally installed circuit will
provide different types of operating configurations.
Example: External timer operation, remote control operation
1. Basic Connection Method
SW1 - Operating switch
Performs operation/stopping of indoor unit.
SW2 - Selecting switch
For selecting whether the operation/stopping is to be performed by external circuit or
remote control.*
* Also includes system controller (central controller).
2. Switch Settings (Refer to table at right for details.)
SW2 - If on.
• Operation/stopping cannot be controlled from
remote controller.
Other operations (such as temperature settings
and changing fan speed) can be performed.
• Operation/stopping can be performed by SW1.

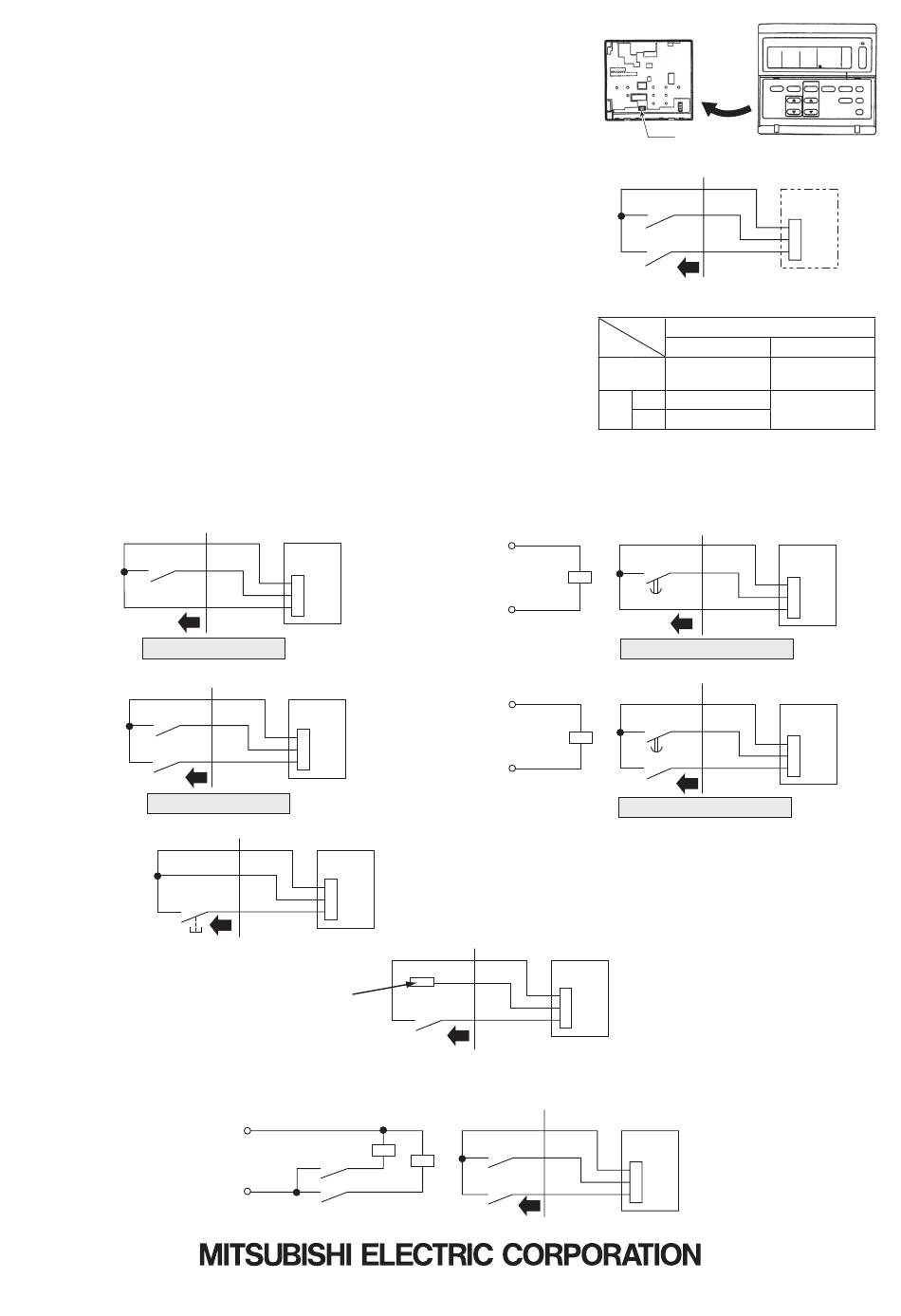

5. Examples of Usage

In either case, there is a 5 to 6 second delay from the time when the operating command is sent until the unit operates.
1. To perform operation/stopping by only remote operation or external timer and to prohibit operation/stopping by the remote controller, use the
following circuits.
SW1
Local wiring
For remote operation
2. To perform operation/stopping by remote operation or external timer and allow operation/stopping by the remote controller, use the following
circuits.
SW1
SW2
Local wiring
For remote operation
3. To start operation by remote operation and then freely use remote controller, use the following circuit.
Local wiring
4. To permit/prohibit the use of the remote controller by an external circuit.

6. Wiring Restrictions

Keep the length of wire from the circuit board of the indoor unit within 10 meters (32ft). Excessive length could cause improper operation.
Use a transit relay when extending wiring such as remote wiring.
Remote controller board
Orange
Red
CN2
Brown
Remote controller board
Orange
Red
CN2
Brown
Remote controller board
Orange
Red
CN2
SW2
Brown
Since this is not used,
be sure to completely
wrap with insulation tape
SW1
Power supply
SW2
