Soundstream REFERENCE 300SX Owner's Manual And Installation Manual page 3

l
1 2 3
0
0

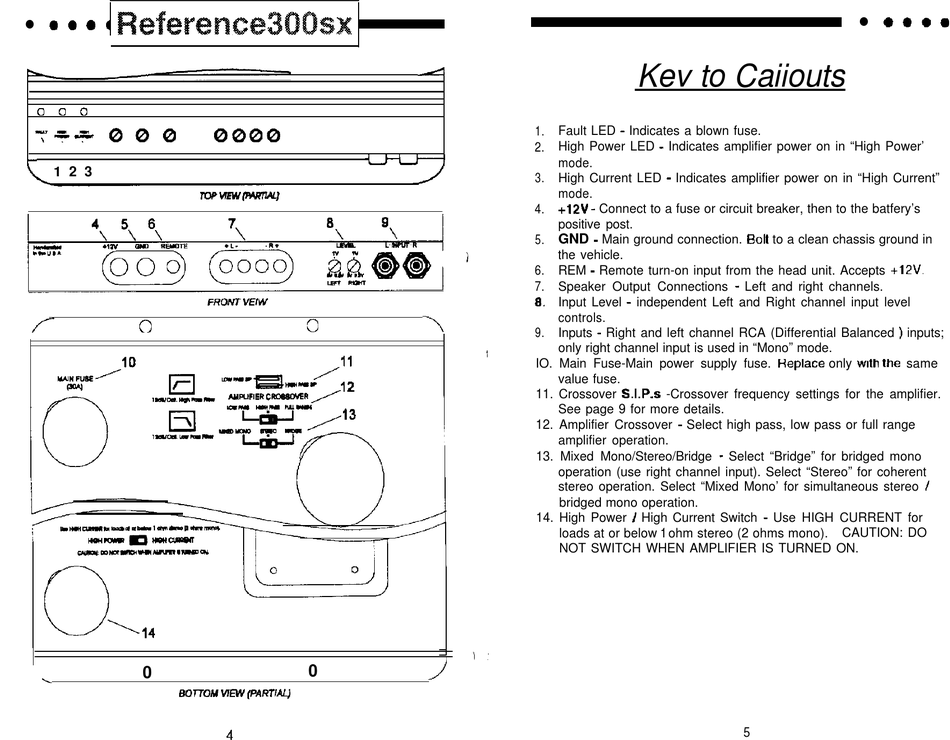

Kev to Caiiouts
Fault LED - Indicates a blown fuse.
1.
High Power LED - Indicates amplifier power on in "High Power'
2.
mode.
3. High Current LED - Indicates amplifier power on in "High Current"
mode.
4.
positive post.
GND -
Main ground connection. Bolt to a clean chassis ground in
5.
the vehicle.
6. REM - Remote turn-on input from the head unit. Accepts +lZV.
7. Speaker Output Connections - Left and right channels.
Input Level - independent Left and Right channel input level
controls.
9. Inputs - Right and left channel RCA (Differential Balanced ) inputs;
only right channel input is used in "Mono" mode.
IO. Main Fuse-Main power supply fuse. Heplace only with the same
value fuse.
11. Crossover S.1.P.s -Crossover frequency settings for the amplifier.
See page 9 for more details.
12. Amplifier Crossover - Select high pass, low pass or full range
amplifier operation.
13. Mixed Mono/Stereo/Bridge - Select "Bridge" for bridged mono
operation (use right channel input). Select "Stereo" for coherent
stereo operation. Select "Mixed Mono' for simultaneous stereo I
bridged mono operation.
14. High Power I High Current Switch - Use HIGH CURRENT for
loads at or below 1 ohm stereo (2 ohms mono).
NOT SWITCH WHEN AMPLIFIER IS TURNED ON.
l
CAUTION: DO
5
