FEATURES

• Two channel with 25/70.7/100V and 8/4/2 Ohm output
capability
• Short circuit, temperature and DC offset protection
• Rear mounted stepped attenuators
• Stereo/Parallel and Bridge Mono Operating Modes
• Balanced Inputs on Barrier Strip and XLR Connectors
• Dual Speed, High Efficiency Fan Cooling
• 350W per channel @ 70.7V, 240W per channel @ 8 Ohm
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2005 Atlas Sound LP
HIGH PERFORMANCE DUAL CHANNEL
COMMERCIAL AUDIO AMPLIFIER

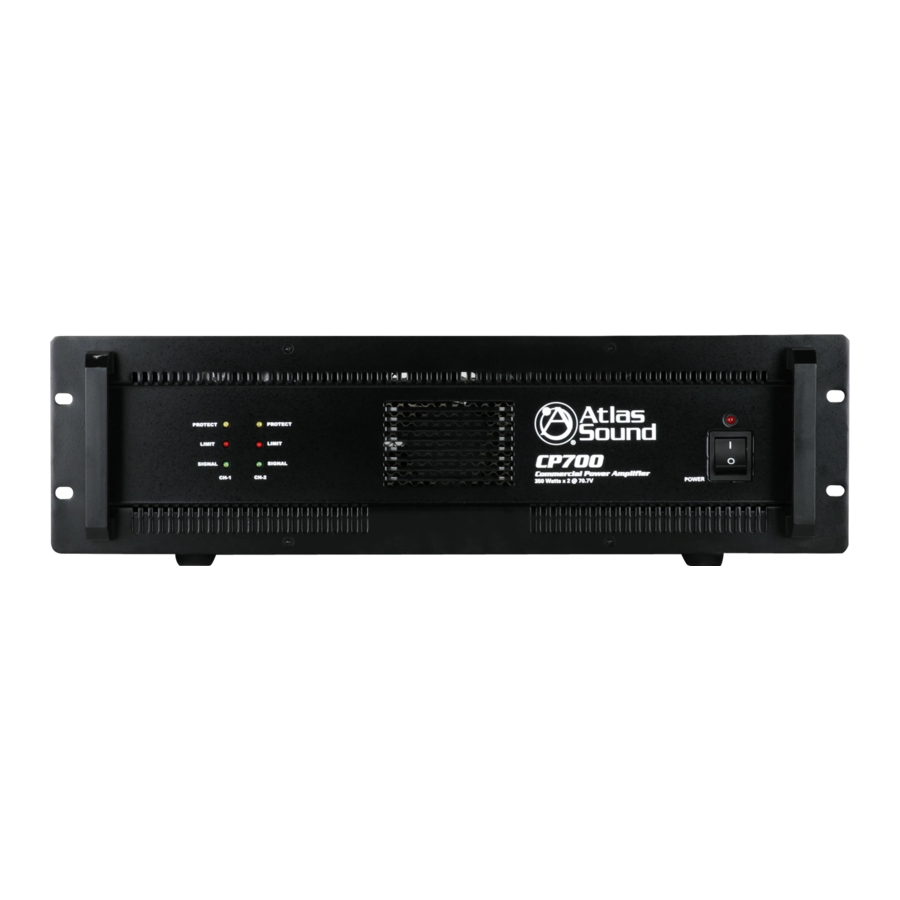

CP700 (Front View)
CP700 (Rear View)
CP700 (Inside View)
Specifications subject to change without notice
Printed in U.S.A.

GENERAL DESCRIPTION

The Atlas Sound CP700 is a high power dual channel
amplifier with independent internal power supplies,
providing excellent channel separation and low distortion.
Rear mounted stepped attenuators provide gain setting
repeatability and ease of setup. Front panel mounted
indicators provide status of signal present, limiter operation,
and protection circuit operation. In addition to having rear
mounted barrier strips for inputs and outputs for permanent
installations, the Atlas Sound CP700 also has XLR input
connectors for portable sound equipment use. In Bridge
Mono mode, the CP700 can provide 140V/200V operation
for long, speaker lines and large speaker loads. Large
torroidal output transformers (1 per channel) provide
outstanding isolation for commercial applications.
AtlasSound.com
001205
ATS002228 RevA 12/05
CP700
Amplifier
381
SL9-2076

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlas CP700

  • Page 1 CP700 (Front View) CP700 (Rear View) CP700 (Inside View) GENERAL DESCRIPTION The Atlas Sound CP700 is a high power dual channel amplifier with independent internal power supplies, providing excellent channel separation and low distortion. Rear mounted stepped attenuators provide gain setting repeatability and ease of setup.
  • Page 2 S/N RATIO 8 Ohms per Channel @ 240W The amplifier shall be Atlas Sound CP700 Commercial Audio Amplifier. The power amplifier shall have two channels. At 8 Ohms, 30Hz- 20kHz, it shall deliver 240 Watts per channel. At 4 Ohms, 1kHz, it shall deliver 400 Watts per channel.
