Summary of Contents for SoundCraft MPM 12/2

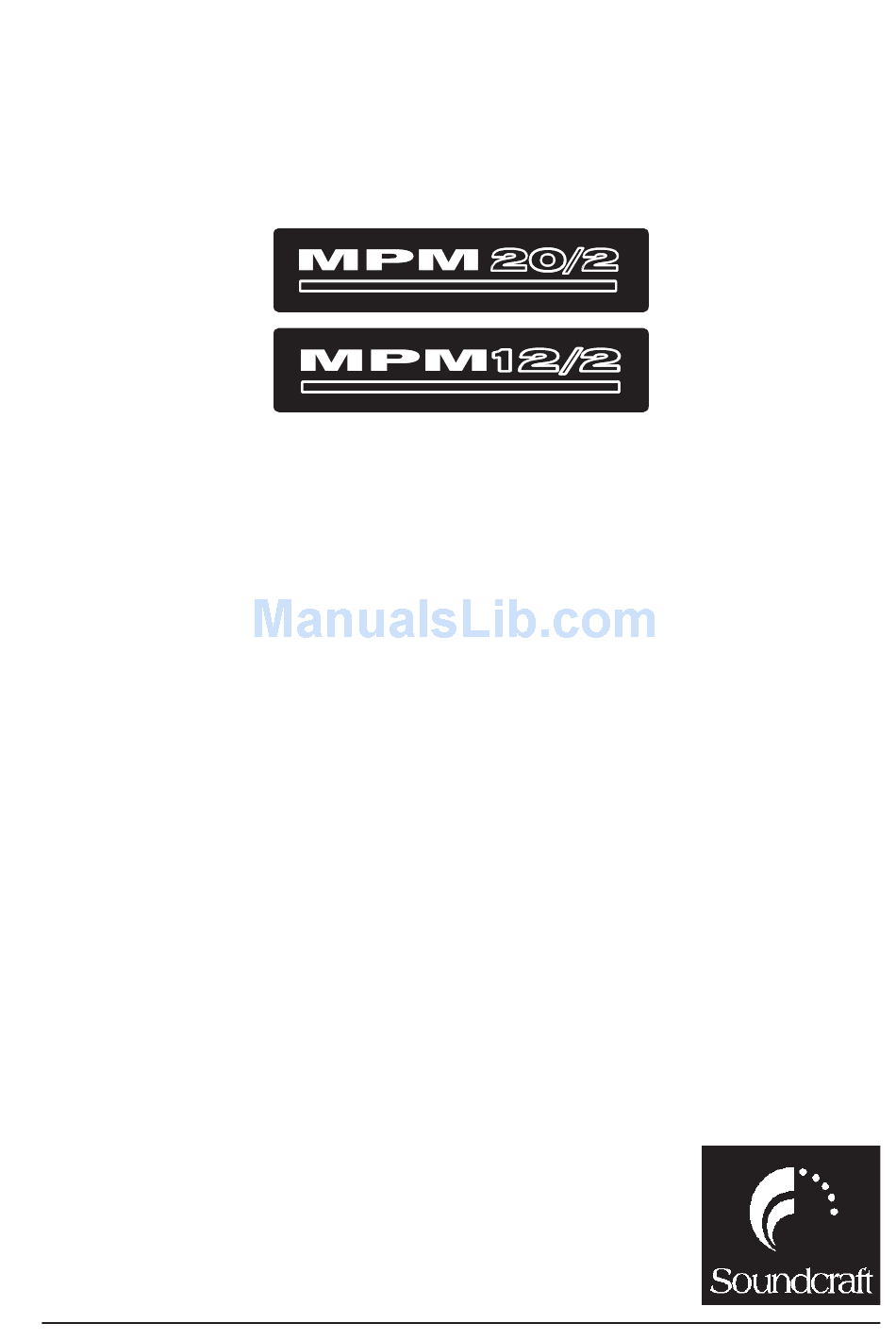

- Page 1 USER GUIDE...
- Page 2 Soundcraft shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
-
Page 3: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS SAFETY SYMBOL GUIDE INTRODUCTION WIRING UP BLOCK DIAGRAM MONO INPUT CHANNEL STEREO INPUT CHANNELS MASTER SECTION USING YOUR MPM CONSOLE FITTING OPTIONAL RACK-MOUNT BRACKETS (MPM12/2) DIMENSIONS APPLICATIONS TYPICAL CONNECTING LEADS MARK-UP SHEETS TYPICAL SPECIFICATIONS WARRANTY Contents... -
Page 4: Important Safety Instructions
Note: It is recommended that all maintenance and service on the product should be carried out by Soundcraft or its authorised agents. Soundcraft cannot accept any liability whatsoever for any loss or damage caused by service, maintenance or repair by unauthorised personnel. - Page 5 with liquids, such as vases, on the apparatus. No naked flame sources, such as lighted candles, should be placed on the apparatus. Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths, curtains etc. THIS APPARATUS MUST BE EARTHED.
-
Page 6: Safety Symbol Guide
For your own safety and to avoid invalidation of the warranty please read this section carefully. SAFETY SYMBOL GUIDE For your own safety and to avoid invalidation of the warranty all text marked with these symbols should be read carefully. WARNINGS The lightning flash with arrowhead symbol, is intended to alert the user to the presence of un-insulated “dangerous... -
Page 7: Introduction
INTRODUCTION Thank you for purchasing a Soundcraft MPM mixer. The MPM range is our most cost- effective mixing solution, bringing you all the features and performance that you expect from a Soundcraft product, at an extraordinarily low price. The packaging, which your MPM arrived in, forms part of the product and must be retained for future use. -
Page 8: Wiring Up
WIRING UP Mic Input The MIC input accepts XLR-type connectors and is designed to suit a wide range of BALANCED or UNBALANCED low-level signals, whether from deli- cate vocals requiring the best low-noise performance, or drum kits needing maximum headroom. Professional dynamic, condenser or ribbon mics are best because these will be LOW IMPEDANCE. - Page 9 A ‘Y’ lead may be required to connect to equipment with separate send and return jacks as shown below: Stereo Inputs STEREO 1/2 These accept 3-pole 6.35mm (1/4") jacks, or 2-pole mono jacks which will automatically ground the ‘cold’ input. Use these inputs for sources such as keyboards, drum machines, synths, tape machines or as returns from processing units.
- Page 10 Polarity (Phase) You will probably be familiar with the concept of polarity in electrical signals and this is of particular importance to balanced audio signals. Just as a balanced signal is highly effective at cancelling out unwanted interference, so two microphones picking up the same signal can cancel out, or cause serious degradation of the signal if one of the cables has the +ve and -ve wires reversed.
- Page 11 Customers outside the UK are requested to contact their territorial distributor who is able to offer support in the local time zone and language. Please see the distributor listings on our website (www.soundcraft.com) to locate your local distributor. OUT-OF-WARRANTY PRODUCTS For out-of-warranty consoles purchased in the United Kingdom, please contact the Customer Services Department (e-mail: csd@soundcraft.com) at the factory in Pot-...
-
Page 12: Block Diagram
BLOCK DIAGRAM... -
Page 13: Mono Input Channel
MONO INPUT CHANNEL 1 Mic Input The MIC input accepts XLR-type connectors and is designed to suit a wide range of BALANCED or UNBALANCED signals. Professional dynamic, condenser or ribbon mics are best because these will be LOW IMPEDANCE. You can use low-cost HIGH IMPEDANCE mics, but the level of background noise will be higher. - Page 14 The Send may also be tapped off as an alternative pre-fade, pre-EQ direct output if required, using a lead with tip and ring shorted together so that the signal path is not interrupted (see below). 5 Gain This knob sets how much of the source signal is sent to the rest of the mixer. Too high, and the signal will distort as it overloads the channel.
- Page 15 POST-FADE), but for Foldback or Monitor feeds it is important for the send to be independent of the fader (this is called PRE-FADE). AUX SENDS 1 and 2 are both globally switchable between pre and post-fade (see master section on page 21). Aux 3 is always post-fade. 8 PAN This control sets the amount of the channel signal feeding the Left and Right MIX buses, allowing you to move the source smoothly across the stereo image.
-
Page 16: Stereo Input Channels
STEREO INPUT CHANNELS 1 INPUTS STEREO 1/2 These inputs accept 3-pole 6.35mm (1/4") jacks. Use these inputs for sources such as keyboards, drum machines, synths, tape machines or processing units. The inputs are BALANCED for low noise and top quality from professional equipment, but you can use UNBALANCED sources by wiring up the jacks as shown in the ‘Wiring Up’... - Page 17 7 FADER The 60mm FADER gives you smooth control of the overall signal level in the channel strip, allowing precise balancing of the various source signals being mixed to the Master Section. It is important that the input level is set correctly to give maximum travel on the fader which should normally be used at around the “0”...
-
Page 18: Master Section
MASTER SECTION... - Page 19 1 POWER INDICATOR This LED lights to show when power is connected to the console. 2 PHANTOM POWER Many professional condenser mics need PHANTOM POWER, which is a method of sending a powering voltage down the same wires as the mic signal. Press the switch to enable the +48V power to all of the MIC inputs.
- Page 20 12 HEADPHONES SOCKET The PHONES output is a 3-pole 6.35mm (1/4") jack, wired as a stereo output, ideally for headphones of 200Ω or greater. 8Ω headphones are not recommended. 13 METERS & AFL/PFL ACTIVE LED The three-colour peak reading BARGRAPH METERS normally show the level of the signal(s) selected by the monitor source-select switches, giving you a constant warning of excessive peaks in the signal(s) which might cause overloading.
- Page 21 22 AUX MASTERS These three controls set the output levels of the three Aux Outputs. 23 AFL These After Fade Listen switches route their respective aux output signal to the monitor/headphones out- puts. 24 PRE/POST SWITCHES These two switches globally switch the AUX 1 and AUX 2 feeds, respectively, on all the input modules to be either pre-fade or post-fade.
-
Page 22: Using Your Mpm Console
USING YOUR MPM CONSOLE The final output from your sound system can only ever be as good as the weakest link in the chain, and especially important is the quality of the source signal because this is the starting point of the chain. Just as you need to become familiar with the control functions of your mixer, so you must recognise the importance of correct choice of inputs, microphone placement and input channel settings. - Page 23 Repeat this procedure on other channels as required. As more channels • are added to the mix, the meters may move into the red section. Adjust the overall level using the Master Faders if necessary. Listen carefully for the characteristic sound of “feedback”. If you cannot •...
-
Page 24: Fitting Optional Rack-Mount Brackets (Mpm12/2)
FITTING OPTIONAL RACK-MOUNT BRACKETS (MPM12/2) The rack-mount kit part number is RW5753 DIMENSIONS... -
Page 25: Applications
APPLICATIONS APPLICATION 1 - LIVE SOUND REINFORCEMENT APPLICATION 2 - MULTISPEAKER APPLICATIONS This configuration demonstrates how multiple speaker configurations can be driven by the EPM. - Page 26 APPLICATION 3 - PLACES OF WORSHIP This configuration uses the Aux 3 output to drive an induction loop for the hard of hearing. Aux 1 output is used to generate foldback monitoring for the speaker/singer (Aux 2 could also be used for foldback but has been omitted for clarity).
- Page 27 APPLICATION 4 - RECORDING The insert points on channels 1-8 may be used to feed a multitrack recorder as shown (link the send and return signals). The Mix outputs are used for a preliminary stereo mix on a DAT recorder.
-
Page 28: Typical Connecting Leads
TYPICAL CONNECTING LEADS... -
Page 30: Mark-Up Sheets
MARK-UP SHEETS You may freely copy these pages, and use them to record the settings used for particular applications/gigs. -
Page 32: Warranty
End User means the person who first puts the equipment into regular operation. Dealer means the person other than Soundcraft (if any) from whom the End User purchased the Equipment, provided such a person is authorised for this purpose by Soundcraft or its accredited Distributor.
