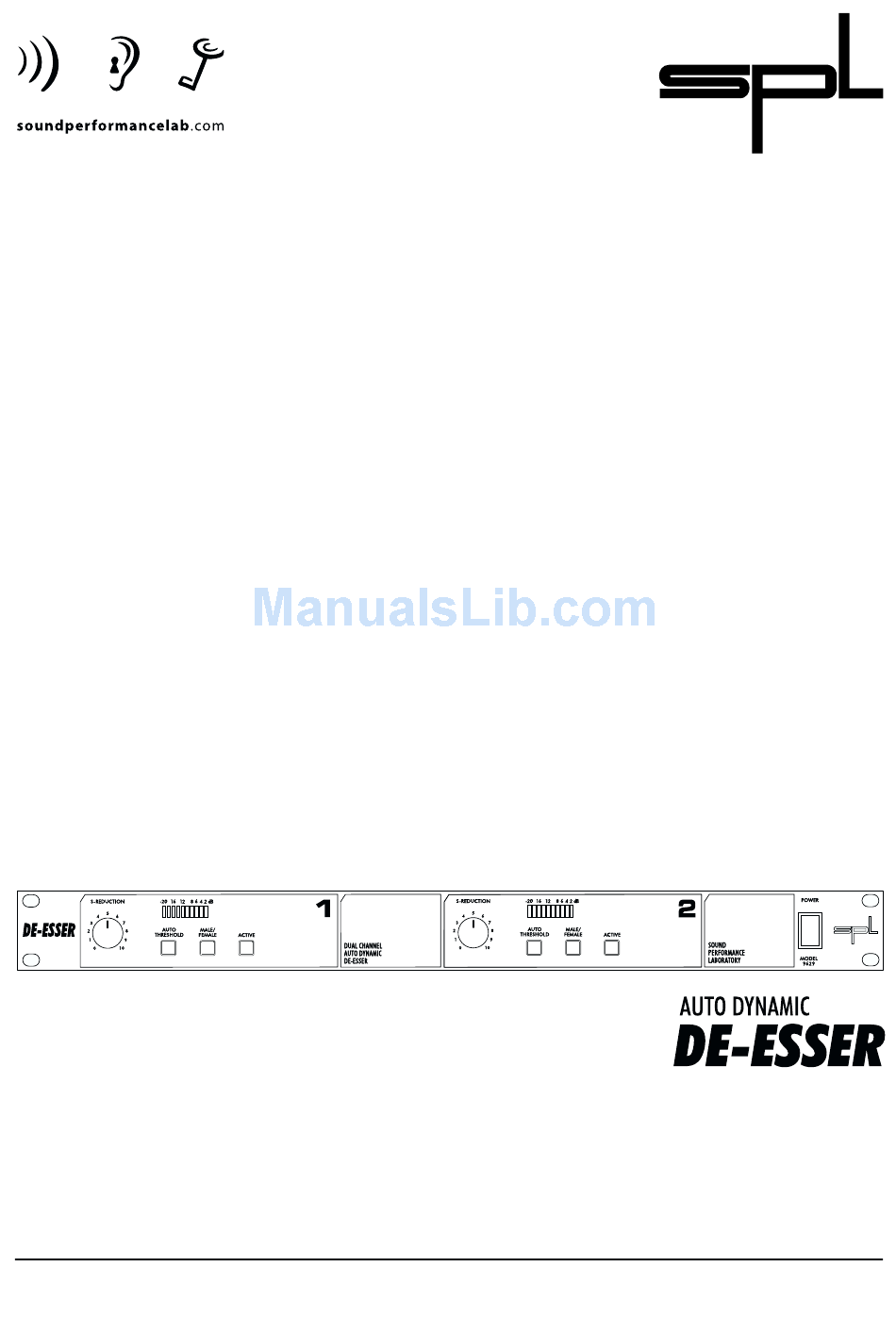

- Page 1 Manual Model 9629 Dual-channel De-Esser...
- Page 2 This limitation will apply even if SPL or an authorized dealer has been advised of the possibility of such damage. Sound Performance Lab P.O. Box 12 27 D- 41368 Niederkrüchten, Germany...
-
Page 3: Table Of Contents
Our products are often tested and compared in many publications and by our customers themselfs and constantly valued with best results. I would like to pass on this broad appreciation to those, who deserve it – my excellent colleagues. Your Sound Performance Lab Team Hermann Gier Contents Foreword... -
Page 4: Introduction
Introduction Installation & Security Advices The Auto-Dynamic De-Esser is a highly specialized audio tool. It is used to reduce S-frequency of speakers and singers. It should perform without disturbing natural character and timbre of the voice. This is not an easy task. SPL has developed a new circuit design that combines ease of use with natural sounding and effective performance. -
Page 5: Connections
Connections Switch off power of all units to be connected before you connect the Auto Dynamic De-Esser. The Auto Dynamic De-Esser is fitted with both XLR-connectors and TRS stereo jacks for balanced operation, though the jacks may be used with unbalanced connections simply by plugging in mono jack-plugs. -
Page 6: Control Elements
Control Elements S-Reduction Auto-Threshold S-Reduction controls the intensity of the de-essing effect. The LED-display shows the gain reduction of S-frequencies in a range between 0dB to -20dB in 2dB steps. S-REDUCTION adjustments between 3 and 7 have proven to create best results in practical applications. -
Page 7: Male/Female
The Male/Female-switch lets you select two different operation modes: The female mode is chosen when the switch is pressed and the status-LED illu- minates. The automatic S-frequency recognition is set to the characteristics of female voices. The opposite position of the button switches to the male mode. -
Page 8: Specifications
Specifications Input & Output Instrumentation amplifier, electronically balanced (differential), transformerless Nominal input level... +6 dB Input impedance ... = 22 kOhms Output impedance ... < 600 Ohms Max. input level ... +24 dBu Max. output level ... +22,4 dBu Minimum load ohms ... 600 Ohms Hard Bypass Relay / Power Fail Safety Measurements Frequency response ... -
Page 9: Warranty
SPL electronics GmbH (hereafter called SPL) products are warranted only in the country where purchased, through the authorized SPL distributor in that country, against defects in material or workmanship. The specific period of this limited warranty shall be that which is described to the original retail purchaser by the authorized SPL dealer or distributor at the time of purchase.
