Summary of Contents for Sony Ericsson PC300
-

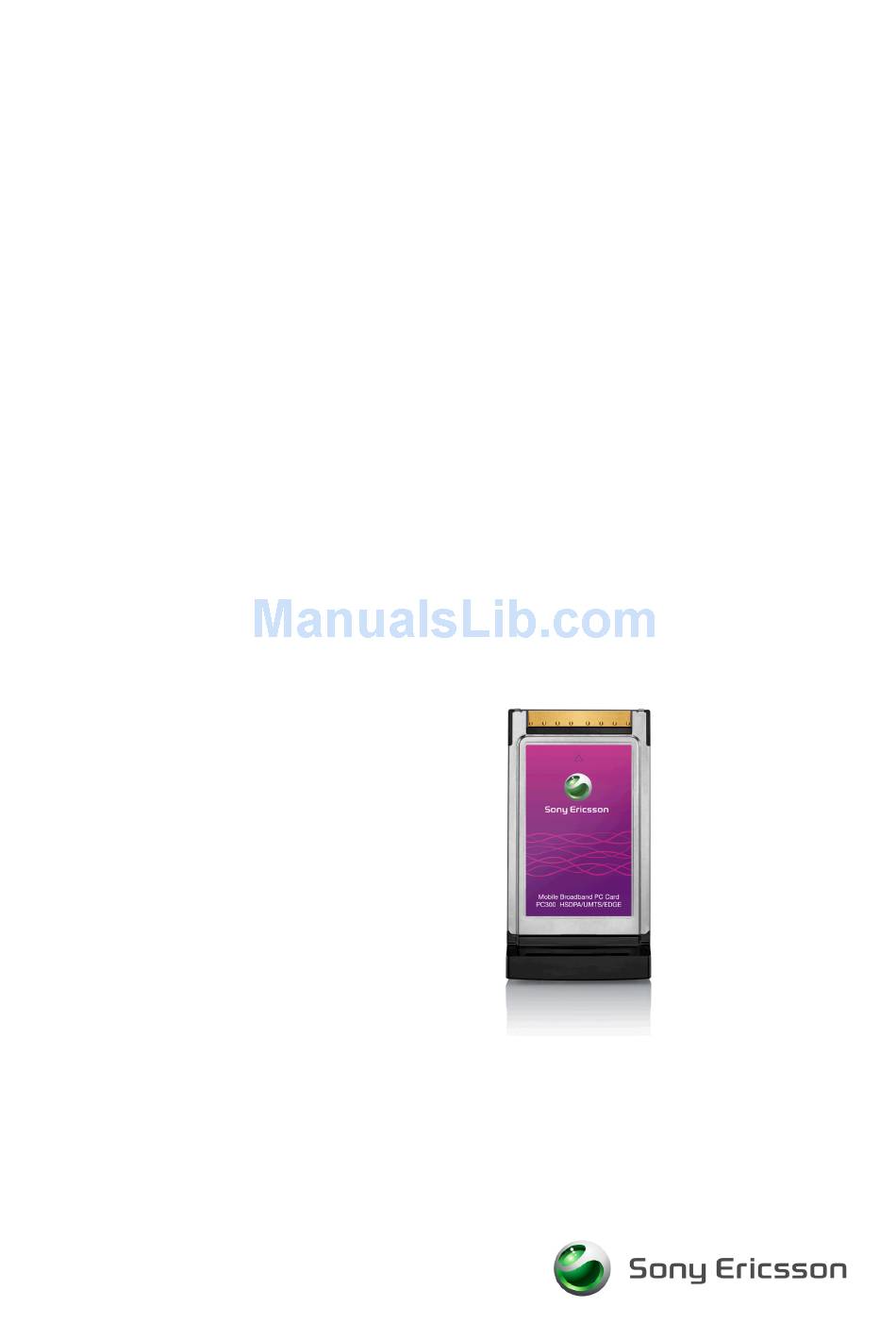

Page 1: User Guide
Mobile Broadband PC Card PC300 HSDPA/UMTS/EDGE User Guide... -
Page 2: Table Of Contents
Overview ..........1 PC300 Communications Summary....... - Page 3 Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson at any time and without notice. Such changes will, however, be incorporated into new editions of this manual.
-
Page 4: About This Guide
Be sure to read all safety guidelines in this document before using your PC300. How this guide is organised Chapter 1: Overview on page 1, contains an overview of your PC300 and the features that it supports. It also provides a list of the requirements and tools needed to use your new PC300. -
Page 5: Overview
Overview PC300 Communications Summary Your Sony Ericsson PC300 Mobile Broadband PC Card keeps you in touch, enabling you to use the best available mobile service wherever you are. It supports tri-band UMTS and quad-band GSM: GPRS EDGE Your PC300 supports the following communications services:... -
Page 6: Checklist
GPRS is a type of network connection that provides “always on” mobility. The connection set up is fast. After you are connected, applications can send and receive data whenever required. In today’s GPRS networks, the PC300 receives data at speeds up to 53.6 kbps and transmits at speeds up to 26.8 kbps. -
Page 7: Protective Case
The external antenna connector is an MMCX pattern. The PC300 is a 3.3 volt PC card and has mechanical keying to prevent insertion in older 5 volt only PCMCIA slots. Laptops 'Designed for Windows 98' and onwards have 3.3 volt support. - Page 8 To detach the accessory antenna 1. Hold the accessory antenna at the base, where it is plugged in to the PC300. 2. Gently pull the antenna plug away from the PC300 antenna connector. 3. Close the antenna connector door. 4. Store your accessory antenna carefully in the protective case provided with your PC300.
-
Page 9: Sim Card
The application software must be installed before you insert your PC Card into your PC or Mac. Network and subscription requirements The network subscription you use in conjunction with your PC300 depends on the functions and features that are available from your network operator. Contact your network operator or service provider to make sure the options that you require are available (UMTS/HSPDA, GPRS/EDGE and SMS). -
Page 10: System Requirements
Manage phonebooks saved to your SIM card and hard drive launch2net - Sony Ericsson Edition To use your PC300 with your Mac OS X system, you will need launch2net – Sony Ericsson Edition. This application enables you to set up and use UMTS/HSDPA and GPRS/EDGE connections (subject to network coverage and availability). -
Page 11: Apple Macintosh
110MB of available disk space Note: Sony Ericsson periodically releases new versions of Wireless Manager with new features and bugfixes. The exact support for the Windows Operating System may change over time. The readme.txt file on the CD-ROM, and included in the download, always identifies which versions and service packs of the Windows operating system are supported. -
Page 12: Technical Specifications
Extension part: 15.4 mm x 54.0 mm x 10.5 mm 42g, excluding SIM card Powered via the PC Card slot. The PC300 uses the laptop battery. GSM/UMTS antenna integrated in to the plastic card extension SSMB connector (for optional accessory antenna) -
Page 13: Environmental Compliance
Application support Windows Sony Ericsson Wireless Manager Third-party software that might be provided by your mobile operator Apple launch2net - Sony Ericsson Edition (via download) Macintosh Third-party software that might be provided by your mobile operator Electrical characteristics Supported voltages... - Page 14 3 + 2 Speed achieved depends on the Coding Scheme supported by the GSM network. The speeds given are maxima. Sony Ericsson cannot guarantee the speed at which your network will operate. Data rate is the payload per slot: header plus data.
- Page 15 61.85 Speed achieved depends on the Coding scheme supported by the GSM Network. The speeds given are maxima, Sony Ericsson cannot guarantee the speed at which your network will operate. Data rate is the payload per slot: header plus data.
-
Page 16: Firmware Upgrade
3.6Mbps Speeds up to Category 6 Supported in Wireless Manager or via third party software Supported via AT Commands. Wireless Manager. AT Command. Via secure Internet download using the Sony Ericsson Update Service, www.sonyericsson.com/support or at Sony Ericsson Service Points... -
Page 17: Additional Information
PC300, reduce performance and produce SAR levels above the established limits (see below). Efficient use Do not cover the antenna when in use, as this affects call quality and may cause the PC300 to operate at a higher power level than needed, thus shortening talk and standby times. -
Page 18: Personal Medical Devices
PC Cards may affect the operation of cardiac pacemakers and other implanted equipment. If a minimum distance of 15 cm (6 inches) is kept between the PC300 and the pacemaker, the risk of interference is limited. If you have any reason to suspect that interference is taking place, immediately turn off your PC300. -
Page 19: Generic Semc Limited Warranty
Product, will, at their option, either repair or replace the Product in accordance with the terms and conditions stipulated herein. Sony Ericsson and its service partners reserve the right to charge a handling fee if a returned Product is found not to be under warranty according to the conditions below. - Page 20 Product from the dealer. 2. If Sony Ericsson repairs or replaces the Product, the repair for the defect concerned, or the replaced Product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer.
- Page 21 Product is sold in such country by an authorised Sony Ericsson distributor. To find out if your Product is sold in the country you are in, please call the local Sony Ericsson Call Center. Please observe that certain services may not be possible elsewhere than in the country of original purchase, for example due to the fact that your Product may have an interior or exterior which is different from equivalent models sold in other countries.
-
Page 22: Regulatory Information
Regulatory information Declaration of conformity We, Sony Ericsson Mobile Communications AB of Nya Vattentornet S-221 88 Lund, Sweden declare under our sole responsibility that our product Sony Ericsson type FAD-3231011-BV and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards 3GPP TS 51.010-1, EN 301908-1, EN 301908-2, EN 301489-7, EN 301489-... -
Page 23: Fcc Statement
• Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications made to this equipment not expressly approved by Sony Ericsson Mobile Communications AB may void the FCC authorization to operate this equipment. CAUTION: The PC Card has been tested for compliance with FCC / IC RF exposure limits in the laptop computer(s) configurations with side PCMCIA slot and can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. -
Page 24: Index
Index hardware overview 2 requirements 6 SIM card 5 HSDPA definition 1 technical data 12 launch2net – Sony Ericsson Edition 6 network requirements 5 packaging, checklist 2 PC Card disposal of 14 personal medical devices, guidelines 14 protective case 3... - Page 25 8 support Sony Ericsson Website iv technical specifications 8 third-party applications 6 UMTS definition 1 technical data 12 VPN 6 warranty limited 15 Wireless Manager description 5 Index...
