Glasdon ICEMASTER 25 Instruction Leaflet

Broadcast spreader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ICEMASTER 25
TM
Broadcast Spreader
INSTRUCTION LEAFLET
IMPORTANT NOTICE
This machine is designed to spread dry granular material only
IT WILL NOT SPREAD WET OR DAMP SALT
PLEASE MAKE THIS MANUAL AVAILABLE TO ALL PERSONNEL WHO
WILL USE OR MAINTAIN THIS BROADCAST SPREADER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICEMASTER 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Glasdon ICEMASTER 25

Summary of Contents for Glasdon ICEMASTER 25

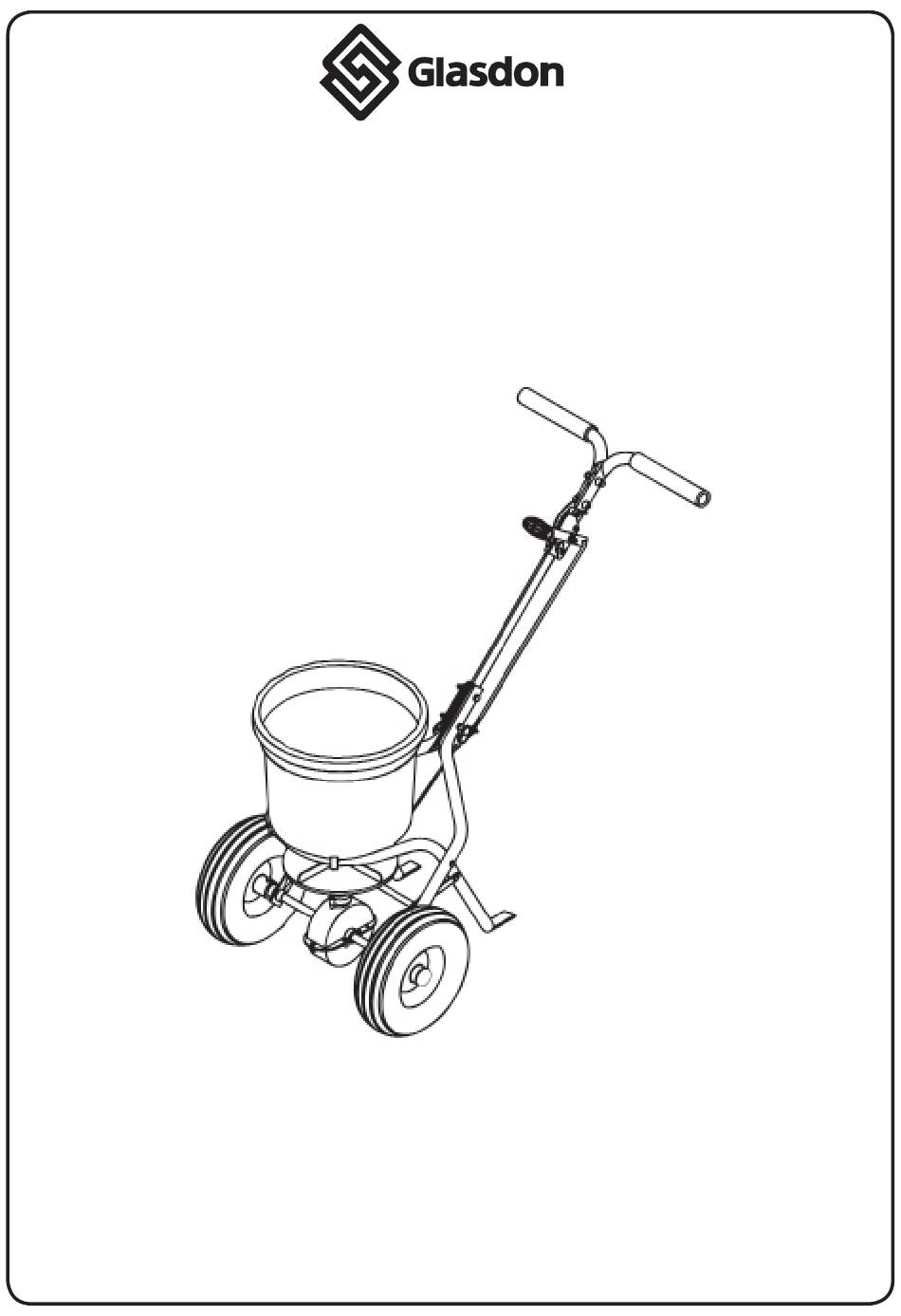

  • Page 1 ICEMASTER 25 Broadcast Spreader INSTRUCTION LEAFLET IMPORTANT NOTICE This machine is designed to spread dry granular material only IT WILL NOT SPREAD WET OR DAMP SALT PLEASE MAKE THIS MANUAL AVAILABLE TO ALL PERSONNEL WHO WILL USE OR MAINTAIN THIS BROADCAST SPREADER...
  • Page 2 HOPPER COVER ITEM 1 SPINNER PLATE QTY 1 ITEM 18 PIVOT BRACKET ASSEMBLY QTY 1 ITEM 2 GEARBOX AND AXLE ASSEMBLY QTY 1 ITEM 19 UPPER HANDLE QTY 2 ITEM 3 M4 X 20MM SCREW QTY 1 ITEM 20 HANDLE SPACER QTY 1 ITEM 4 WHEEL ASSEMBLY FRAME...
  • Page 3 Remove the bag of fixings and identify the following components: M6 X 60MM M6 X 35MM M6 X 45MM M4 X 20MM M5 X 45MM HEX HEAD BOLT HEX HEAD BOLT HEX HEAD BOLT ROUND HEAD SCREW HEX HEAD BOLT (ITEM 30 - 2OFF) (ITEM 8 - 4 OFF) (ITEM 24 - 5 OFF)
  • Page 4 ITEM 1 ITEM 3 ITEM 7 ITEM 29 ITEM 2 ITEM 23 Insert the Spinner Plate (ITEM 1) onto the vertical shaft of the Gear Box and Axle Turn the Hopper (ITEM 23) upside Assembly (ITEM 2). down and attach it to the Hopper Frame (ITEM 7) using the 6 x 40mm Insert the M4 x 20mm Screw (ITEM 3) to Screws (ITEM 29 - 4 off).
  • Page 5 ITEM 10 ITEM 6 ITEM 24 ITEM 8 ITEM 4 ITEM 7 Attach the Connector Rod (ITEM 10) to the Wheel Assembly Frame (ITEM 4) together with the Frame Braces (ITEM 6 - 2off) using the M6 x 45mm Bolts (ITEM 24 - 2 off). The fixings screw into an internal thread on the inside of the Connector Rod.
  • Page 6 Insert the Handle Shaft (ITEM 17) between the two Wheel Assembly Frames (ITEM 4) ITEM 17 ensuring the Handle Shaft is in the correct orientation. The lower holes are further from the end of the Handle Shaft. Take the Pivot Bracket Assembly (ITEM ITEM 24 18) and align with the holes in the Wheel Assembly Frames and Handle Shaft.
  • Page 7 ITEM 18 ITEM 32 ITEM 23 ITEM 18 ITEM 33 ITEM 32 CLOSED ITEM 22 ITEM 25 ITEM 26 Push the Handle of the Gauge and Lever Take the Rod of the Pivot Bracket Assembly (ITEM 22) to its lowest position Assembly (ITEM 18) and insert the and insert the upper end of the Control threaded end into the Flow Control Plate...
  • Page 8 Ensure the Flow Control Lever is pushed downwards and the apertures in the base of the Hopper are closed before filling the Hopper with the spreading material. We recommend Glasdon Icemelt or other dry granular material. Do not use damp or wet grit/salt and do not overload the hopper (maximum capacity approximately 25kg).
