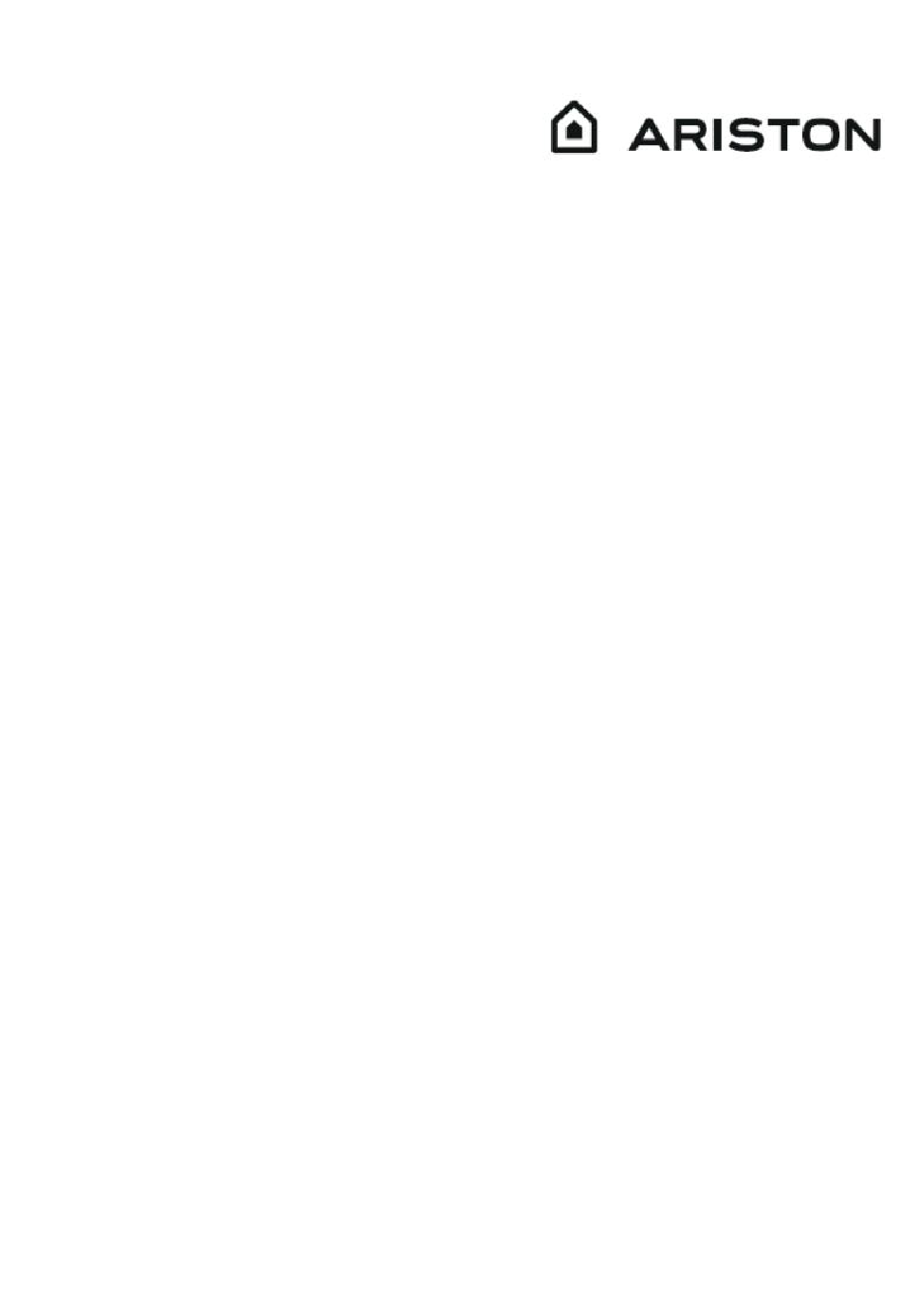

  • Page 1 TH 721 D22 B/LPG TH 721 D22 B/NG TH 721 D22 B/TG TH 731 D2/A B/LPG TH 731 D2/A B/NG TH 731 D2/A B/TG TH 931 D2/A B/LPG TH 931 D2/A B/NG TH 931 D2/A B/TG TH 721 D22 E/LPG...

  • Page 2: Table Of Contents

    Table of Contents For your safety Warnings The appliance Description of the appliance Pg3-5 Installation Pg6-12 Start-up and Use Pg13-14 Precautions and tips Pg14 General safety Pg14 Assistant Pg15 Cleaning and maintenance Pg15 Practical tips Pg16 FAQs and Trouble shooting Pg17 Electrical connection Pg18...

  • Page 3: For Your Safety

    For your safety These instructions have been drawn up for your safety and that of others. You are therefore requested to read them carefully before installing and using the appliance. Keep this instruction manual for future reference as necessary. If the appliance is sold or moved, make sure that the manual is handed over to the new user.

  • Page 4: The Appliance

    THE APPLIANCE TH 721 D22 B/LPG TH 731 D2/A B/LPG TH 721 D22 B/NG TH 731 D2/A B/NG TH 721 D22 B/TG TH 731 D2/A B/TG TH 721 D22 E/LPG TH 731 D2/A E/LPG TH 721 D22 E/NG TH 731 D2/A E/NG...
  • Page 5 The detailed differences between the models are listed below: Burner Variants Model number Semi-rapid Total Dimensions burner burner TH 721 D22 B/LPG 9kW(655g/h) (760 X 450)mm TH 731 D2/A B/LPG 11kW(800g/h) (760 X 450)mm TH 931 D2/A B/LPG 11kW(800g/h) (860 X 500)mm...
  • Page 6 Burner Variants Model number Semi-rapid Total Dimensions burner burner TH 721 D22 B/NG (760 X 450)mm TH 731 D2/A B/NG 10.7kW (760 X 450)mm TH 931 D2/A B/NG 10.7kW (860 X 500)mm TH 721 D22 E/NG (760 X 450)mm TH 731 D2/A E/NG 10.7kW (760 X 450)mm TH 931 D2/A E/NG...

  • Page 7: Installation

    Installation Instructions for Built-In The following instructions are intended for the installer so that the installation and maintenance procedures may be followed in the most professional and expert manner possible. Positioning This appliance may only be installed and operated in permanently ventilated rooms in compliance with provisions laid down by current regulations and standards.
  • Page 8 B）The room must also allow for the influx of the air needed for proper combustion. The flow of air for combustion purposes must not be less than 2 m3/h per kW of installed capacity. The supply of said air can be effected by means of direct influx from the outside through a duct with a inner cross section of at least 100 cm2 which must not be able to be accidentally blocked.
  • Page 9 Installation of Built-In cooktops The appliance can be installed next to furniture units which are no taller than the top of the cooker. The wall in direct contact with the back panel of the cooker must be made of non-flammable material. During operation the back panel of the cooker could reach a temperature of 50 C above room temperature.
  • Page 10 20 to 60 mm in thickness. To fasten the cooktop securely, it is recommended that all the clamps be used. TH 721 D22 B/LPG TH 931 D2/A B/LPG TH 721 D22 B/LPG...
  • Page 11 The cooktop can also be installed above built-in ovens provided with cooling ventilation. In the event the cooktop is installed above a built-in oven, a wood panel must be inserted as insulation. This panel must be placed at about 50 mm from the bottom of the cooktop itself. Important: When installing the cooktop above a built-in oven, the oven should be placed on two wooden strips;...
  • Page 12 Gas Connection for Cooktop The cooktop should be connected to the gas supply by an authorized installer. During installation of this product it is essential to fit an approved gas tap to isolate the supply from the appliance for the convenience of any subsequent removal or servicing. Connection of the appliance to the gas mains or liquid gas tanks must be carried out according to the safety standards currently in force, and only after it is ascertained that it is suitable for the type of gas to be used.
  • Page 13 Check the Seal Once the appliance have been installed, make sure all the connections are properly sealed, using a soapy water solution. Never use a flame. How to load battery ( on those models fitted with battery box) Open the battery box, and then place a 1.5V size “D” battery into the box.( take notice of the direction) Note: a) "prior to installation, ensure that the local distribution conditions (nature of the gas and...

  • Page 14: Start-Up And Use

    START UP AND USE The position of the corresponding gas burner is indicated on each control knob. Gas Burners The burners differ in size and power. Choose the most appropriate one for the diameter of the cookware being used. The burner can be regulated with the corresponding control knob by using one of the following settings: Symbol description To turn on one of the burner, please press the corresponding knob all the way in and turn in...

  • Page 15: Precautions And Tips

    PRECAUTIONS AND TIPS General safety This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. Call only the Service Centers authorized by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 16: Assistant

    It is recommended that you follow the guidelines below: Only use the appliance to cook food, avoiding all other uses.  Check the condition of the appliance after it has been unpacked.  When not in use, take out the battery and turn off the gas valve (if present). ...

  • Page 17: Practical Tips

    Greasing the Taps The taps may jam in time or they may become difficult to turn. If so, the tap itself must be replaced. N.B.: This operation must be performed by a technician authorized by the manufacturer. PRACTICAL TIPS Using the Burners For best performance, follow these general guidelines: 1.
  • Page 18 FAQ and TROBULE SHOOTING It may occur that the cooktop does not function or does not function properly. Before calling customer service for assistance, check with below. First of all, check to see that there are no interruptions in the gas and battery supplies, and, in particular, that the gas valves for the mains are open.

  • Page 19: Electrical Connection

    Electrical connection...
  • Page 20 Electrical connection models TH 721 D22 E/LPG TH 731 D2/A E/LPG TH 721 D22 E/NG TH 731 D2/A E/NG TH 721 D22 E/TG TH 731 D2/A E/TG TH 931 D2/A E/LPG TH 931 D2/A E/NG TH 931 D2/A E/TG...
