September, 2002
T600/T602

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony Ericsson T600

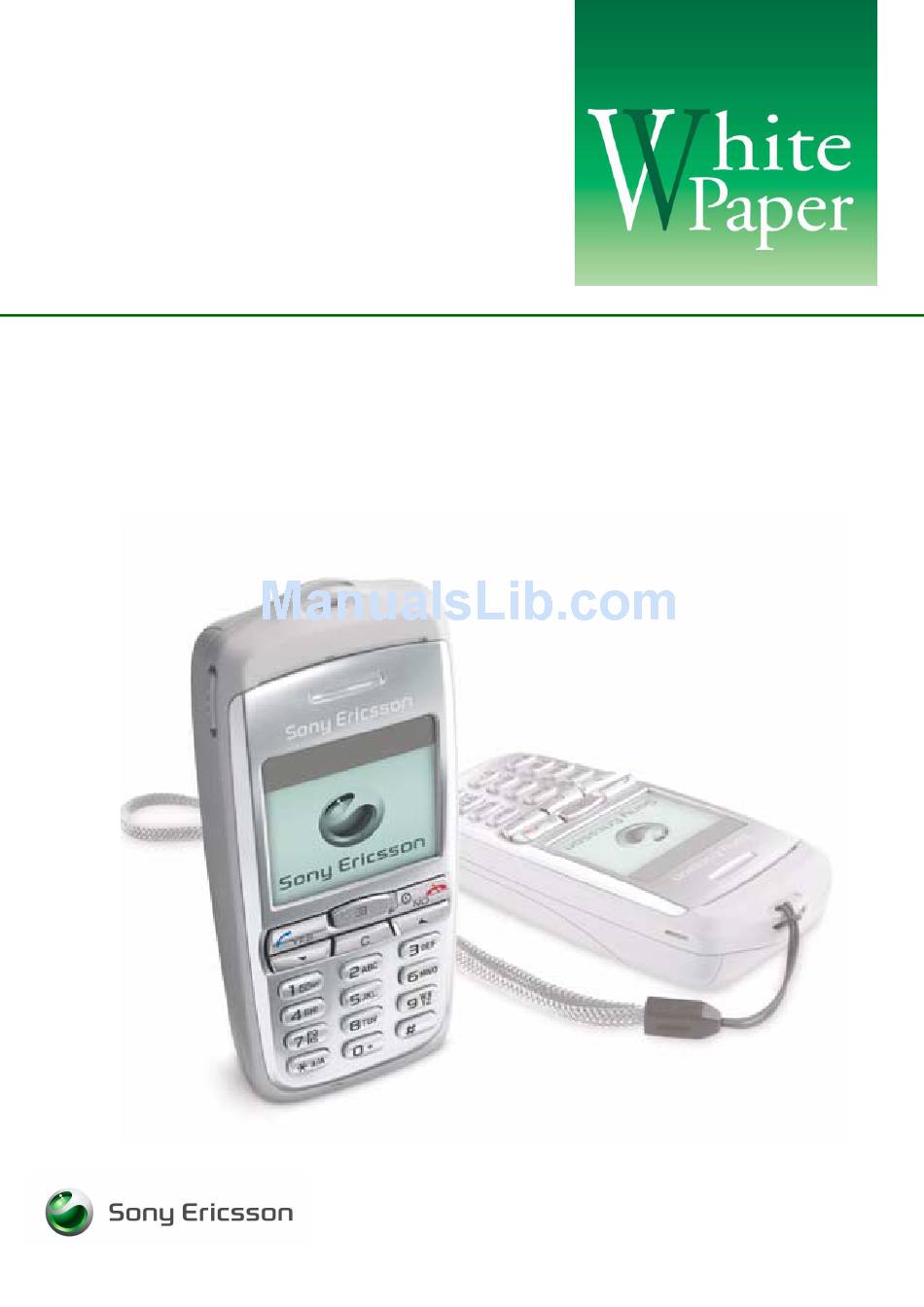

  • Page 1 September, 2002 T600/T602...
  • Page 2: Table Of Contents

    Configuration of WAP settings ... 9 In-phone functions and features ... 10 Network-dependent features ... 14 SIM Application Toolkit ... 15 SIM AT services supported by the T600/T602 ... 15 User interaction with SIM AT ... 17 Terminology ... 19 Related information ... 22 Documents ...
  • Page 3: Preface

    The Ericsson T600/T602 White Paper is designed to give the reader a deeper technical understand- ing of how the T600/T602 is designed, and how it interacts with other media. This document will make it easier to integrate with the IT and commu- nications solutions of a company or organization.
  • Page 4: Key Functions And Features

    T600/T602 White Paper, September 2002 Key functions and features Small and light The T600/T602 measures 92 x 41 x 19.5 mm and weighs 63 grams. It is one of the smallest phones of the market. Large display Although small in size, the T600/T602 has a large display: 101 x 65 pixels (5 rows).
  • Page 5: Messaging And Chat

    White Paper, September 2002 Messaging and chat The T600/T602 is capable of sending and receiv- ing SMS messages, linked messages and it sup- ports Enhanced Messaging Service (EMS). Also, mobile chat over SMS is supported. •...
  • Page 6: Picture Editor

    See the User’s Guide for a description of this function. Mobile chat via SMS The T600/T602 makes it possible to chat with a second party using SMS. The chat is a series of short messages and corresponding replies between the two parties, similar to chat services provided on the Internet.
  • Page 7: Wap Services

    The WAP browser in the T600/T602 is designed for WML. It is suitable for interaction with cus- tomer services, e.g. ticket reservation. It is also...
  • Page 8: Technical Specifications Of The Wap Browser

    Also, please note that the phone may not support input on a WAP Service Support in the T600/T602 WAP browser WAP 1.2.1 Server applications may request Basic Authentication. Gateway may request Authentication during connection setup.
  • Page 9: Gsm Data Access

    WAP browsing. White Paper, September 2002 Security using WAP The T600/T602 is based on the WAP 1.2.1 specifi- cations where security functionality is specified with a technology called Wireless Transport Layer Security (WTLS). The WAP protocols that handle the connection, its transport and its security are structured in proto- col layers.
  • Page 10: Over The Air Provisioning Of Wap Settings

    To perform the WAP configuration of a single phone it is suggested to use the functions and information provided on the Sony Ericsson home- page at http://www.SonyEricsson.com/. A manual configuration is made using the menu system in the phone. This is described in the...
  • Page 11: In-Phone Functions And Features

    Call transfer* Call wait Calling card service Calling Line Identification (CLI) Chinese text input White Paper, September 2002 Yes (115) Yes (8) Yes, via EMS Yes (30) Yes, as the number of the caller. Yes (Stroke, Pinyin and Bopomofo) T600/T602...
  • Page 12 T600/T602 White Paper, September 2002 In-phone functions and features Clock Closed User Groups (CUG)* Code memo Conference calls* Connected Line Identity Presentation (COLP) CSD (Circuit Switched Data), a.k.a. GSM Data Date Display light EDGE (enhanced Data rates for Global Evolu-...
  • Page 13 + SIM Yes, stand-alone pic- ture editor facility. Here the user can create new and edit existing pictures (WBMP). Yes, limited only by memory Yes, via EMS Yes (download/receive only) Yes (5) Yes, via EMS Yes (15) Yes (8) T600/T602...
  • Page 14 T600/T602 White Paper, September 2002 In-phone functions and features Screensaver Shortcuts SIM Application Toolkit* SIM card copy SIM card lock Sleep mode (sleeping display) SMS (Short Messaging Service)* SMS Cell Broadcast* SMS counter SMS templates Sound handling Speaker phone Speech coding...
  • Page 15: Sms Messaging

    Network-dependent features SMS messaging The T600/T602 is capable of sending and receiv- ing SMS messages. • With the Short Messaging Service, a user can send text message containing up to 160 char- acters to and from GSM mobile stations. A Service Centre (SC) acts as a storage and for- warding centre.
  • Page 16: Sim Application Toolkit

    All necessary setup and programming is distributed to the users over the air, directly to their phones. In the T600/T602, a separate menu is available, and there are also functions which allow the phone to initiate calls, send data and display information for the user.
  • Page 17 1 = user input to be in SMS packed format 0 = no help information available 1 = help information available 0 = packing not required 1 = SMS packing by the ME required T600/T602 White Paper, September 2002 Support in T600/ T602...
  • Page 18: User Interaction With Sim At

    ‘Key’ responses • Down arrow — Scroll down list. • Up arrow — Scroll up list. • ‘Long NO’ terminates the proactive session. • ‘NO’ - Backward move in proactive session. • ‘YES’ - Command performed successfully. Support in T600/ T602...
  • Page 19 30 menu items has been set within this command. White Paper, September 2002 ‘Key’ responses • Down arrow - Scroll down list. • Up arrow - Scroll up list. • Side key: - Scrolls the menu. • ‘YES’ - Envelope (Menu Selection). T600/T602...
  • Page 20: Terminology

    T600/T602 White Paper, September 2002 Terminology Application Programming Interface. Bearer The method for accessing WAP from the phone, for example GSM Data (CSD) and SMS. bFTP binary File Transfer Protocol. Bookmark A URL and header/title stored in the phone. Browsing session The period from the first access of content until the termination of the connection.
  • Page 21 The card can be a small plug-in type or credit card-sized, but both types have the same functions. The T600/T602 uses the small plug-in card. Short Messaging Service. Allows messages of up...
  • Page 22 T600/T602 White Paper, September 2002 Transport Layer Security. Uniform Resource Locator. USSD Unstructured Supplementary Services Data. Voice Activated Dialling. Value Added Service. Wireless Application Environment. Wide Area Network. Wireless Application Protocol. Handheld devices, low bandwidth, binary coded, a deck/card meta- phor to specify a service.
  • Page 23: Related Information

    Related information Documents • The T600/T602 User’s Guide • WAP 1.2.1 Specification • iMelody specifications are found in “Infrared Data Association; Specifications for Ir Mobile Communications (IrMC); iMelody (October 2000)” • Enhanced Messaging Service White Paper • Developers’ Guidelines for EMS Links •...
  • Page 24: Technical Specifications

    1 Mobile Phone T600/T602 • 1 Standard Battery BSL 14 (610 mAh) • 1 Standard Charger CST-13 • 1 Wriststrap • 1 Sony Ericsson service and support leaflet • 1 User’s guide General technical data Product name SAR measurements: figures SAR measurements: laboratory...
  • Page 25: Exterior Description

    Variations in SAR below the radio frequency exposure guidelines do not mean that there are variations in safety. While there may be differences in SAR levels among various mobile phones, all Sony Ericsson mobile phone models are designed to meet the relevant guidelines for radio frequency exposure.
  • Page 26: Ambient Temperatures

    T600/T602 White Paper, September 2002 Ambient temperatures Operating Storage Charging Supported Man-Machine Interface (MMI) languages Depending on software in the phone, these languages are supported: Arabic (AR), Brazilian Portugese (PB), Bulgarian (BG), Czech (CS), Chinese simplified (ZS), Chinese tradi- tional (ZC), Croatian (HR), Danish (DA), Dutch (NL), English (EN), Estonian (ET), Finnish (FI), French (FR),...
  • Page 27: Current Consumption, Talk And Standby Times

    Charging time Interactive 13 Mhz frequency No games API, externally available Full rate RPE/LPC with LTP 13.0 Kbp/s 20 ms T600/T602 White Paper, September 2002 1.5 - 5 hours 70 - 180 hours 1 hour Vibration Enhanced full rate ACELP 13.0 Kbp/s...
  • Page 28: Cell Broadcast Service

    Message creation methods support Full rate 260 bits 182 bits 78 bits Support in the T600/T602 Message displayed on screen The last message overwrites the previous one CBMI and CBMID Support in the T600/T602 It is possible to pre-record the SMS Center Number.
  • Page 29 White Paper, September 2002 Support in the T600/T602 Yes (only to the sender, not to all or part of the message recipients) Yes (only to the sender, not to all or part of the message...
  • Page 30: Enhanced Messaging Service

    Incoming messages Concatenated messages Attachments Text formatting Sounds I-melody Support in the T600/T602 Yes, using Phone Book groups Yes, if SMS type=e-mail In the SIM and in the handset. Support in the T600/T602 Enhanced Messaging Service (EMS) according to the standard 3GPP TS 23.040 v3.5.0.
  • Page 31: Enhanced Messaging Service Technical Data

    TP-PID field value given by the handset before sending an EMS message Enhanced Messaging Service technical data EMS Feature Concatenation (linked SMS) iMelody format support Support in the T600/T602 It is possible to... • edit and create melodies by using the phone key- pad. •...
  • Page 32: Instant Messaging/ Chat

    Chat application Width in pixels: (Pictures wider than display are truncated.) Height in pixels: Support in the T600/T602 Yes, SMS as the radio bearer. 16 x 16, 32 x 32 Small: 8 x 8, Medium: 16 x 16, Large: 32 x 32...
  • Page 33: Performance And Technical Characteristics

    (according to GSM spec.) Better than — 102 Better than — 102 < 2% < 2% Support in the T600/T602 WAP browser Yes, HSCSD, ISDN and analog T600/T602 White Paper, September 2002 GSM 1900 TX: 1850 — 1910 RX: 1930 — 1990...
  • Page 34 User Agent Profiles WAP/WML WAP WAP browser WAP profiles WTLS (security) Support in the T600/T602 WAP browser Yes, up to 8 named bookmarks for easy access to frequently visited pages Yes (size 8 kbyte) UTF8 (Default), USASCII, Latin1, UCS2 Yes, up to 8 different, one for each WAP profile No.
  • Page 35: Wap Operator Technical Data

    Interface (Set 1 filled) Carrier reset/provisioning SWIM SWIM certificate Applicative provisioning Preferred bearer customization Email customization Support in the T600/T602 for WAP 1.2.1 baseline Name Startpage IP settings: CSD phoneno., CSD Data rate, CSD dial type IP address, datamode (conn.less or oriented)
  • Page 36 Dynamic push menu changes Security Mechanisms for push Trust with PPG WSP push sessions Denial of service/spoofing User agent profile UA profile content sent at beginning of WSP session Support in the T600/T602 for WAP Yes. The Ericsson-Nokia solution. None...
  • Page 37 Wallpapers Pictures Games JAVA applications Screen savers Audio files Skins Video Support in the T600/T602 for WAP On the manufacturer web site. iMelody, eMelody Image/WBMP Image/WBMP audio/MPEG4 not used,MP3 not used, WAV not used Video/MPEG4 not used T600/T602 White Paper, September 2002...
  • Page 38: Ussd Technical Data

    Feature USSD support Mode support -mode MMI-mode details Support in the T600/T602 for WAP None Not displayed but the "http://" is added automatically to the URL. 4 to 7 plus Title, depending on the selected font size. Yes. Single select list to conserve space.
  • Page 39: Image Format Technical Data

    EMS icons: WBMP max WidthxHeight<=1024 pixels (eg 32 x 32 = 1024) WAP: Can not show animations in the WAP Browser. Animation Colours Black/ White Max. size WxH<=1024 pixels Limited by the memory T600/T602 White Paper, September 2002 Visible Transparency colours support...
  • Page 40: Index

    Preface Product overview Related information Restricted calls Security using WAP Short Messaging Service SIM Application Toolkit SIM AT services supported by the T600/T602 SIM card type SMS messaging Speech coding Start-up and shut-down shows Supported MMI languages Technical specifications Technical specifications of the WAP browser...
