Check Point 6200 Series Operating Manual

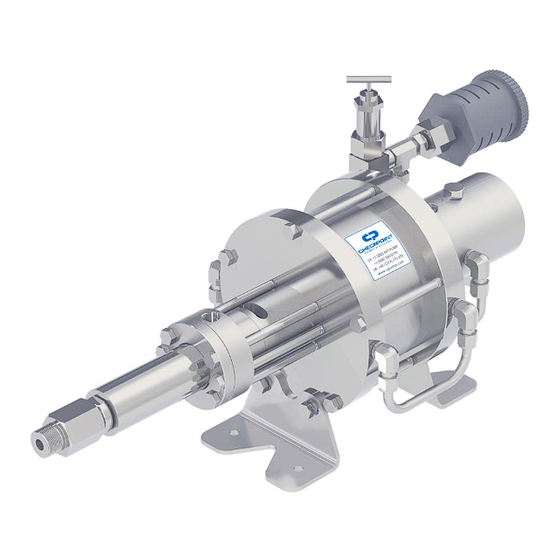

Pneumatic chemical injection pump
Hide thumbs Also See for 6200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Louisiana, US
21356 Marion Lane
Mandeville, LA 70471
Kirkhill Place, Kirkhill Industrial Estates
+1 (504) 340-0770
Dyce, Aberdeen, AB21 0GU Scotland
USA
CP-MAN-PRD-6212
REV10
Series 6200
Pneumatic Chemical Injection Pump
Operating Manual
Aberdeen, UK
Unit C2 Lombard Centre
+44 (0) 1224 775205
EFF. DATE: 07/23/2019
Series 6200 Pneumatic Chemical Injection Pump
Dubai, UAE
Jebel Ali Free Zone | JAFZA 1 AB810
PO Box 262131
Dubai, United Arab Emirates
+971 (04) 880-6278
+971 (04) 880-6278
Operating Manual
Ras Al Khaimah, UAE
RAK Technology Park, Shed 2, Warehouses 7 & 8
Al Hamra Industrial Zone
PO Box 54796
Ras Al Khaimah, United Arab Emirates
+971 (07) 223-9961
Page 1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Check Point 6200 Series

Summary of Contents for Check Point 6200 Series

  • Page 1 Series 6200 Pneumatic Chemical Injection Pump Operating Manual Series 6200 Pneumatic Chemical Injection Pump Operating Manual Louisiana, US Aberdeen, UK Dubai, UAE Ras Al Khaimah, UAE 21356 Marion Lane Unit C2 Lombard Centre Jebel Ali Free Zone | JAFZA 1 AB810 RAK Technology Park, Shed 2, Warehouses 7 &...

  • Page 2: Table Of Contents

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual TABLE OF CONTENTS 1. PUMP INSTALLATION Process Design & Setup ..........................3 Connecting The Chemical Supply ......................5 Connecting The Supply Gas ........................7 2. GAS RECOVERY SYSTEMS - INSTALLATION 3. PUMP OPERATION Setting The Pump Stroke Rate ........................

  • Page 3: Pump Installation

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual Congratulations! You have chosen the finest, most versatile chemical injection pump made; designed to exacting specifications for long life, reliable performance, and low maintenance. To ensure proper operation and to maximize the Series 6200’s durability, please read and follow this manual. Failure to correctly install and maintain the pump is the primary cause of premature pump failure and voids the product warranty.
  • Page 4 Series 6200 Pneumatic Chemical Injection Pump Operating Manual and life of the pump in typical field or plant use. CheckPoint is available to answer your process questions or to help design and build a package system utilizing components appropriate for your application. NOTE: In Figure 1, the secondary chemical filter, vent line, and pressure regulator are optional under certain conditions but are highly recommended.

  • Page 5: Connecting The Chemical Supply

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual 1.1.7 The pump may be mounted to a skid or other surface in a number of ways, however, clamping around the outside of the pump can permanently affect the cylindricity of the air motor, voiding the product warranty. This method also reduces accessibility during maintenance and troubleshooting and is therefore not recommended.
  • Page 6 Series 6200 Pneumatic Chemical Injection Pump Operating Manual NOTE: CheckPoint recommends using filtration to ensure a maximum particulate size of 140 microns. Multiple stages of filtration should be considered, depending upon the initial cleanliness level of the fluid media being pumped, to prevent cavitation and an increase in maintenance. NOTE: If premature scoring of the pump plunger or early packing failure is observed during operation, a likely cause is abrasive particles carried into the pump through the suction plumbing.

  • Page 7: Connecting The Supply Gas

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual 1.3 Connecting The Supply Gas 1.3.1 Gas supply to the pump should be clean compressed air or natural gas at 50 PSIG minimum, 150 PSIG maximum. “Clean” means free of abrasive dust, sand or other grit that could abrade the seals inside the pump. If using natural gas, it must be free of most production enhancement chemicals and certain distillate products, especially salts and certain aromatics that can attack the motor end seals and/or the metallic elements in the air motor.

  • Page 8: Gas Recovery Systems - Installation

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual 0.750 2. GAS RECOVERY SYSTEMS - INSTALLATION 2.1.1 The exhaust gas can be exhausted directly to atmosphere, or can be recovered to a lower pressure gas system. If vented directly to atmosphere, CheckPoint supplies the pump with a muffler to reduce exhaust noise. 2.1.2 If recovering the exhaust gas, connect the gas recovery line from the process to the open 3/8”...

  • Page 9: Air/Gas Consumption

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual 3.1.1.6 The level in the gauge should begin to fall. (If it does not, or if the level seems to go down and then back up with each stroke, refer to troubleshooting in Section 5.1 on page 11). When the liquid level in the gauge gets near the bottom of the gauge, or when one minute has expired (whichever comes first), stop timing, note the ending level on the gauge, and reopen the Chemical Supply Valve.

  • Page 10: Pump Maintenance

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual Gas Consumption [Nm3/Hr] @ 0C = Chemical Flow Rate [LPH] * Gas Supply Pressure [BARA] * SI Gas Consumption Factor NOTE: Gas supply pressure value must be absolute pressure, not gauge pressure (Absolute pressure = gauge pressure + atmospheric pressure).

  • Page 11: Troubleshooting

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual 5.1.3 Recommended Lubrication Type A light hydraulic oil bearing the designation ISO 3448 viscosity no. 20-32 should be used. If atmospheric or other supply air/gas conditions present exhaust freezing issues, an antifreeze type lubricant such as Kilfrost may be used.

  • Page 12: Pump Strokes Erratically

    Series 6200 Pneumatic Chemical Injection Pump Operating Manual pressure but also the gas recovery pressure. Refer to Section 2.1.1 on page 8 to determine the appropriate recovery pressure. 6.2.4 Pump switching valve may be clogged or “gummed-up” with paraffin or trash Disconnect air/gas supply, then pour any type of oil or solvent into the pump air/gas inlet.
  • Page 13 Series 6200 Pneumatic Chemical Injection Pump Operating Manual rebuild it, and report back to you any problems we uncovered. We offer a fixed-price exchange plan, an actual-cost plan, and a consigned exchange plan that allows you to stock rebuilt pumps and be charged only when you use them.
