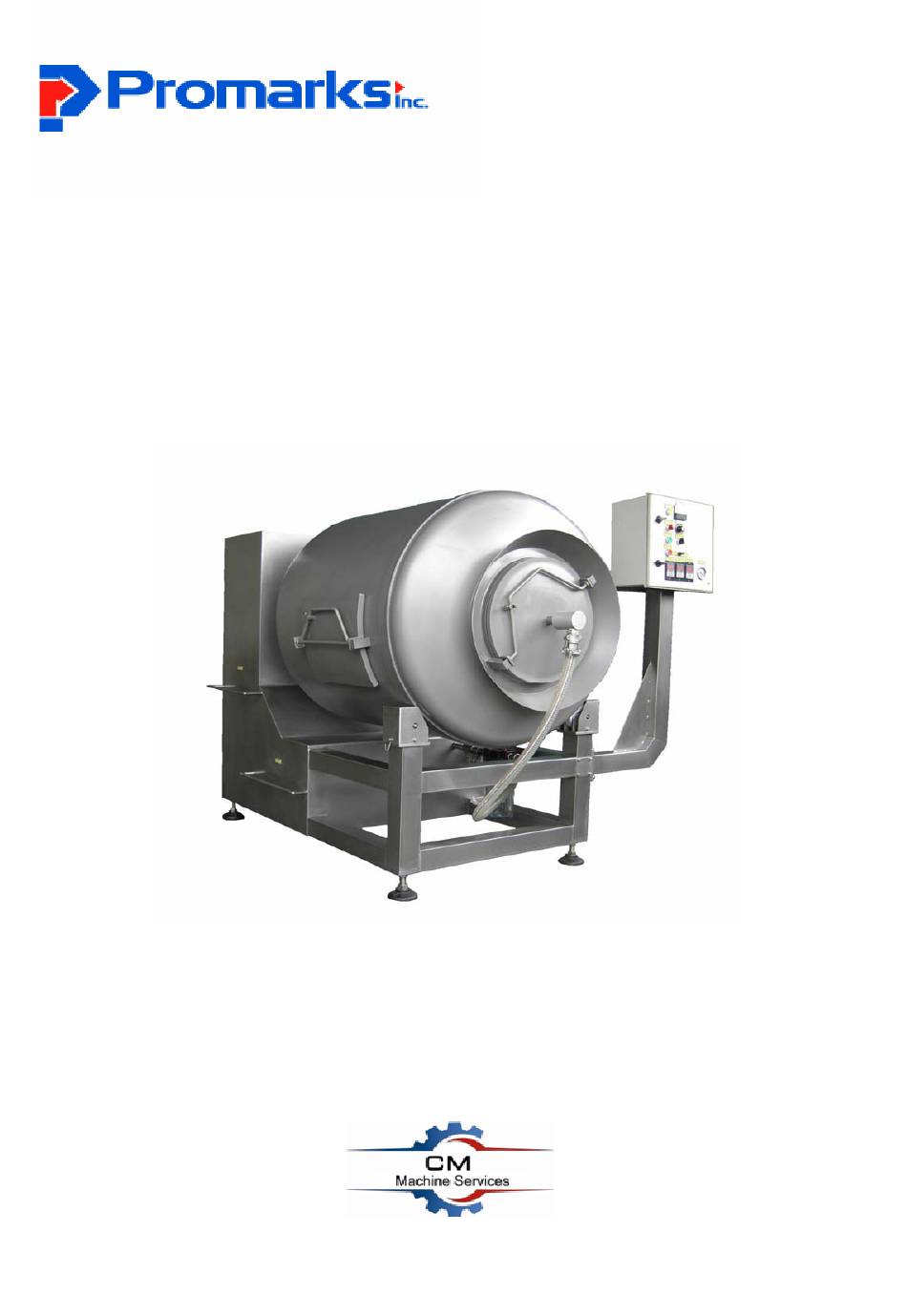

- Page 1 TM-1000 Vacuum Tumbling Machine Operation Manual PROMARKS INC. 8822 Flower Road, Suite #110 Rancho Cucamonga CA 91730-4472 USA TEL :( 909)481-3338 FAX :( 909)481-3335...
- Page 2 INDEX Ⅰ. Control Board----------------------------------------------------------------------------------------------3-4 Ⅱ. Operating instructions---------------------------------------------------------------------------------------5 III. Diagram-------------------------------------------------------------------------------------------------------6 IV. Parts list-----------------------------------------------------------------------------------------------------7-8...
- Page 3 Ⅰ CONTROL PANEL. ○ ○ ○ 1 Control panel 6 Program number up 1 0 Edit ○ ○ ○ 2 Program number 7 Program number down 1 1 Shift / Save value ○ ○ 3 Function value 8 Increase value ○...
- Page 4 ○ Program number up 6 : Program number goes up by pressing button. ○ Program number down 7 : Program number goes down by pressing button. ● ○ Increase value 8 : Increase any value by pressing button. ● ○ Decrease value 9 : Decrease any value by pressing button.
- Page 5 Ⅱ OPERATION INSTRUCTION: 1. Power switch: this switch button controls the electrical supply of the machine. If the light is on, the machine is ready. If the be light is not on, check the electrical supply. 2. In/Stop/Out switch: this is switch button for three choices. (1) Turn the button to the middle to stop position.
- Page 6 III. TM-1000 DIAGRAM...
- Page 7 Pos. Specifications Stand Quantity Mainframe SUS 304 Seat of bearing UCP212 M16 washer SUS 304 M16 spring washer SUS 304 M16 screw×L40 SUS 304 M12 screw×L20 SUS 304 Gear wheel B60×34T S35C Motor Gear wheel B60×16T S35C M12 screw×X116 SUS 304 Chain RS 60 S35C M16 Hexagonal head bolt...
- Page 8 Pos. Specifications Stand Quantity M8 spring washer SUS 304 M8 Hexagonal head bolt SUS 304 6mm oil filler Brass M12 nut SUS 304 POM wheel shaft SUS 304 POM wheel POM wheel cover SUS 304 M6 washer SUS 304 M6 spring washer SUS 304 M6 Hexagonal head bolt SUS 304...
