Device Description
TQF10, TQF12, TQF14, TQF16
Room Service Module

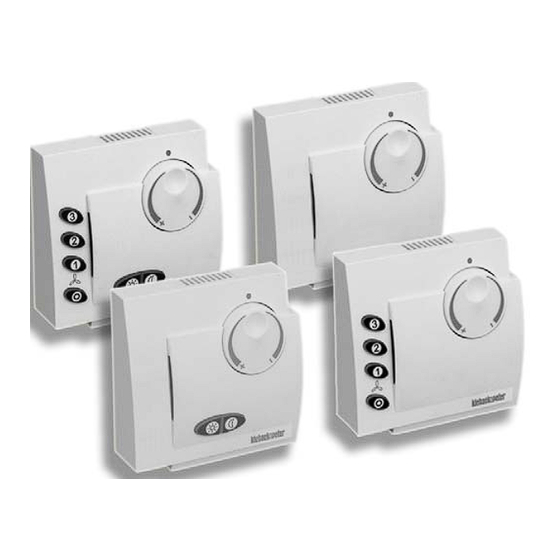

The Room Service Modules TQF10, TQF12, TQF14,
TQF16 and the technolon
FBR100-L form a device unit in the LON network.
They are designed to record room temperatures in
living and business premises.
The room setpoint is set with the setpoint adjustor.
The TQF12 Room Service Module additionally also
has a user button for the switchover to day /night.
The TQF14 Room Service Module additionally also
has a user button for switching to three ventilator
levels.
The TQF16 Room Service Module like the TQF12
additionally also has a user button for switching to
three ventilator levels.
