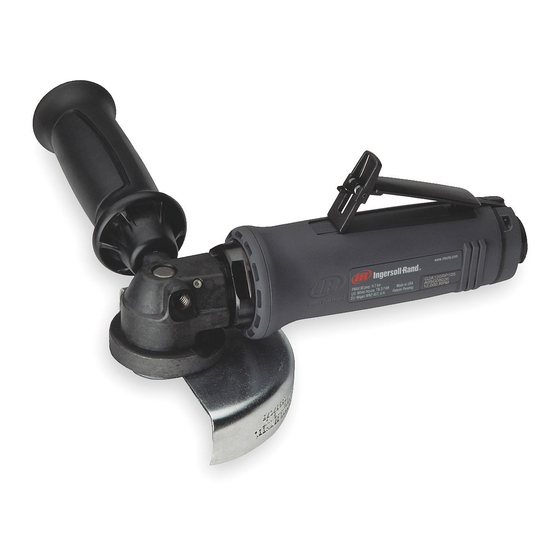

Ingersoll-Rand G2 Series Maintenance Information
Air grinder and die grinder
Hide thumbs
Also See for G2 Series:
- Product information (53 pages) ,
- Maintenance information (8 pages) ,
- Product information (33 pages)
Related Manuals for Ingersoll-Rand G2 Series
Summary of Contents for Ingersoll-Rand G2 Series
- Page 1 04581252 Edition 1 May 2006 Air Grinder and Die Grinder Series G2 (Horizontal) Maintenance Information Save These Instructions...
- Page 2 Lubrication Whenever one of these Grinder or Die Grinder is 2. Inject 0.5 to 1.0 cm of Ingersoll Rand No. 10 Oil into the disassembled for overhaul or replacement of parts, lubricate air Inlet Assembly (1) after assembly. the tool as follows: 3.
- Page 3 For G2S models, using a 5/32" diameter rod through the 5. Remove the Rear Exhaust Diffuser from the Housing. crosshole of the Arbor, unscrew and remove the Arbor. Remove Rear Exhaust Diffuser Gasket (8), Rear Exhaust For G2X and G2XX models, using a 1/2" wrench, Diffuser Muffler (10) and Lever Support (6) from the unscrew and remove the Arbor Bearing Nut.
- Page 4 Collet Body (58) until it contacts the shoulder. press and install the large end of the Arbor Housing (43) Saturate the felt with Ingersoll Rand No. 50 Oil. Insert a on the Clamp Sleeve. 5/32" (4 mm) hardened steel rod approximately 6"...
- Page 5 (150 mm) long through the arbor crosshole. Thread the 2. Position the Guard Adapter Assembly recessed surface Collet Body onto the Arbor and using a torque wrench, leading, on the front end of the Arbor Housing, flush with tighten the joint between 14 and 19 ft-lb (19 and 26 Nm) the end of the Housing and using a 9/64”...
- Page 6 Trouble Probable Cause Solution Leaky Throttle Valve Dirt accumulation on Throttle Valve or Throttle Disassemble, inspect and clean parts. Valve Seat. Worn Throttle Valve or Throttle Valve Seat. Replace the Throttle Valve and/or Throttle Valve Seat. Excessive dirt build-up beneath the Throttle Clean out the slot area.
- Page 7 Notes...
- Page 8 Ingersoll Rand © 2006 Company...
