SPARTAN sport Magnetic 994 Owner's Manual

Magnetic upright bike

Advertisement

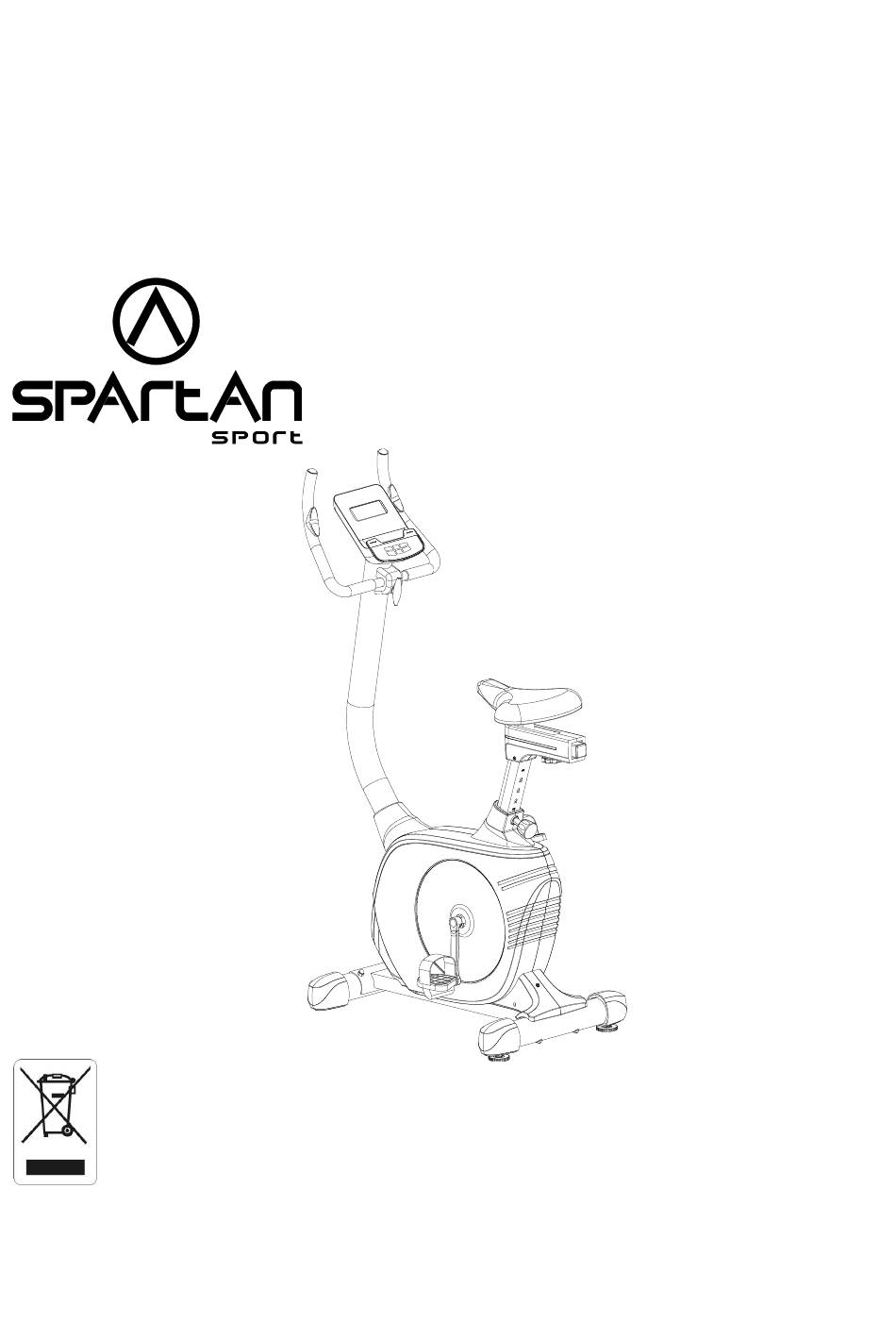

Magnetic 994
Magnetic Upright Bike
ITEM NO.: 994
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnetic 994 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SPARTAN sport Magnetic 994

  • Page 1 Magnetic 994 Magnetic Upright Bike ITEM NO.: 994 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 2 PARTS LIST ------------------------------------------------------------------------------- 3 HARDWARE LIST ----------------------------------------------------------------------- 5 TOOLS -------------------------------------------------------------------------------------- 5 EXPLODED VIEW ----------------------------------------------------------------------- 6 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7 OPERATING THE COMPUTER ------------------------------------------------------ 17 HOW TO MOVE THE BIKE ------------------------------------------------------------ 21 ADJUSTMENTS -------------------------------------------------------------------------- 22 MAINTENANCE -------------------------------------------------------------------------- 23 TROUBLESHOOTING ------------------------------------------------------------------ 23 WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 24...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.
  • Page 4: Parts List

    PARTS LIST Description Qty No. Description 001 Computer 1 023 Seat Cushion DD-353T Computer Extension Wire I Seat Sliding Tube End Cap 1 024 (L=500 mm) 38x38 Computer Extension Wire II 1 025 Nylon Nut M8 (L=1000 mm) 004 Handlebar Ø25x1.5t 1 026 Washer Ø16xØ8x1.5t Handlebar Foam Grip...
  • Page 5 PARTS LIST Description Qty No. Description 045 Big Curve Washer Ø8xØ20x2.0t 4 060 Eyebolt M6x36 046 Cap Nut M8 2 061 Flywheel Ø250 047 Washer Ø6xØ12x1.0t 8 062 Spring Clip Ø17 048 Main Frame 1 063 Bearing 6003ZZ 049R Right Foot Pedal YH-30X 1 064 Sensor with Wire L=750 mm 049L Left Foot Pedal YH-30X 1 065 Belt Pulley 260J6...
  • Page 6: Hardware List

    HARDWARE LIST (27) Cross Recessed Pan (7) Cross Recessed Pan Head Tapping Screw Head Tapping Screw 5 PCS 2 PCS (45) Big Curve Washer (44) Carriage Bolt 2 PCS 4 PCS (46) Cap Nut (72) Hexagon Socket 2 PCS Pan Head Cap Bolt 2 PCS TOOLS Allen Wrench S6...
  • Page 7: Exploded View

    EXPLODED VIEW...
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Position the Front Stabilizer (43) in front of the Main Frame (48) and align bolt holes. Attach the Front Stabilizer (43) onto the front curve of the Main Frame (48) with two Carriage Bolts (44), two Big Curve Washers (45), and two Cap Nuts (46). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 9 STEP 2 Install two Adjustable Levelers (71) with two Hexagon Nuts (70) onto the Rear Stabilizer (74). Position the Rear Stabilizer (74) behind the Main Frame (48) and align bolt holes. Attach the Rear Stabilizer (74) onto the rear curve of the Main Frame (48) with two Hexagon Socket Pan Head Cap Bolts (72) and two Big Curve Washers (45).
  • Page 10 STEP 3 The Foot Pedals and Pedal Straps are marked “R” for Right and “L” for Left. Select the Left Foot Pedal Strap (49L) which has L marked on the side of the strap. Snap the three hole end of the strap onto the inside edge of the Left Foot Pedal (49L). Snap the other end of the strap onto the outside edge of the Left Foot Pedal (49L).
  • Page 11: Seat Sliding Tube

    STEP 5 Remove three Nylon Nuts (25) and three Washers (26) from underside of the Seat Cushion (23). Remove nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided. Guide bolts on underside of the Seat Cushion (23) through holes on top of the Seat Sliding Tube (76), attach with three removed Nylon Nuts (25) and Washers (26).
  • Page 12 STEP 7 Attach the Left and Right Seat Sliding Tube Covers (22L, 22R) onto the Seat Sliding Tube (76) and Seat Post (31) with five Cross Recessed Pan Head Tapping Screws (27) and two Cross Recessed Pan Head Tapping Screws (7). Tighten screws with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 13 STEP 8 Turn the Seat Height Adjustment Knob (33) in a counterclockwise direction until it can be pulled out. Pull out the Seat Height Adjustment Knob (33) and then insert the Seat Post (31) into the seat post bushing of the Main Frame (48) and then slide the Seat Post (31) up or down direction to the suitable position.
  • Page 14 STEP 10 Slide the Handlebar Post Cover (21) up to the Handlebar Post (14). STEP 11 Connect the Computer Extension Wire I (2) from the Main Frame (48) to the Computer Extension Wire II (3) from the Handlebar Post (14). Insert the Handlebar Post (14) onto the tube of the Main Frame (48) and align bolt holes.
  • Page 15 STEP 12 Attach the Handlebar Post (14) onto the tube of the Main Frame (48) with six Curve Washers (19) and six Hexagon Socket Pan Head Cap Bolts (20) that were removed. Tighten bolts with the Allen Wrench provided. Slide the Handlebar Post Cover (21) down to the Handlebar Post (14).
  • Page 16 13-1 13-2 13-3 STEP 13 13-1 Insert the Hand Pulse Sensor with Wires (6) through into the hole on the Handlebar Post (14) and pull them out from the top end of the Handlebar Post (14). 13-2 Place the Handlebar (4) through clamp on the Handlebar Post (14) with hand pulse sensors facing the seat.
  • Page 17 STEP 15 Connect the Computer Extension Wire II (3) and Hand Pulse Sensor Wires (6) to the wires that come from the Computer (1). Tuck wires into the Handlebar Post (14). Attach the Computer (1) onto the top end of the Handlebar Post (14) with four Cross Recessed Pan Head Bolts (77) that were removed.
  • Page 18: Operating The Computer

    OPERATING THE COMPUTER KEY FUNCTIONS: ST/SP (START/STOP): Press the ST/SP key to start or stop training. Start the body fat measurement and quit the body fat program. Operates only when in stop mode, by holding the ST/SP key for three seconds to reset all data values to zero except the ODO (ODOMETER) data values.
  • Page 19 Things You Should Know Before Exercising The values calculated or measured by the computer are for exercise purpose only, not for medical purpose. PROGRAMS SELECTION: There are 13 programs including 1 Manual Program, 6 Pre-set Programs, 1 Body Fat Ratio Program, 1 Target Heart Rate Program, 3 Heart Rate Control Programs, and 1 User Setting Program.
  • Page 20 Body Types: There are 5 body types divided according to the FAT% calculated. BMR: Basal Metabolism Ratio. BMI: Body Mass Index. Target Heart Rate Program (P9) Setting Parameter for TARGET H.R. Selecting the TARGET H.R. Program (P9) by using the + or - key then press the ENTER key to enter into the program.
  • Page 21 User Setting Program (P13) Program 13 is the user setting program. Selecting the User Setting Program (P13) by using the + or - key then press the ENTER key to enter into the program. The first parameter "Time" will flash so the value that can be adjusted by using the + or - key. Press the ENTER key to save values and move to the next parameter which can be adjusted.
  • Page 22: How To Move The Bike

    HOW TO MOVE THE BIKE Handlebar Transport Wheel This upright bike has a pair of Transport Wheels built into the front stabilizer and can be carefully tilted onto its Transport Wheels for easy moving and storage. To move the upright bike, firmly grasp the Handlebar with both hands. Next, carefully push the upright bike down until it rolls freely on the Transport Wheels.
  • Page 23: Adjustments

    ADJUSTMENTS Adjusting the Handlebar Hold the handlebar while loosening the handlebar T-Knob. Adjust the handlebar to the desired position and turn the handlebar T-Knob in a clockwise direction to tighten. NOTE: Continue to turn the handlebar T-Knob until handlebar is secure before exercising. Handlebar T-Knob Adjusting the Adjustable Leveler Turn the adjustable leveler on the rear stabilizer as...
  • Page 24: Maintenance

    MAINTENANCE Cleaning The upright bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the upright bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.
  • Page 25: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 26 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
