Summary of Contents for Reikel ID716

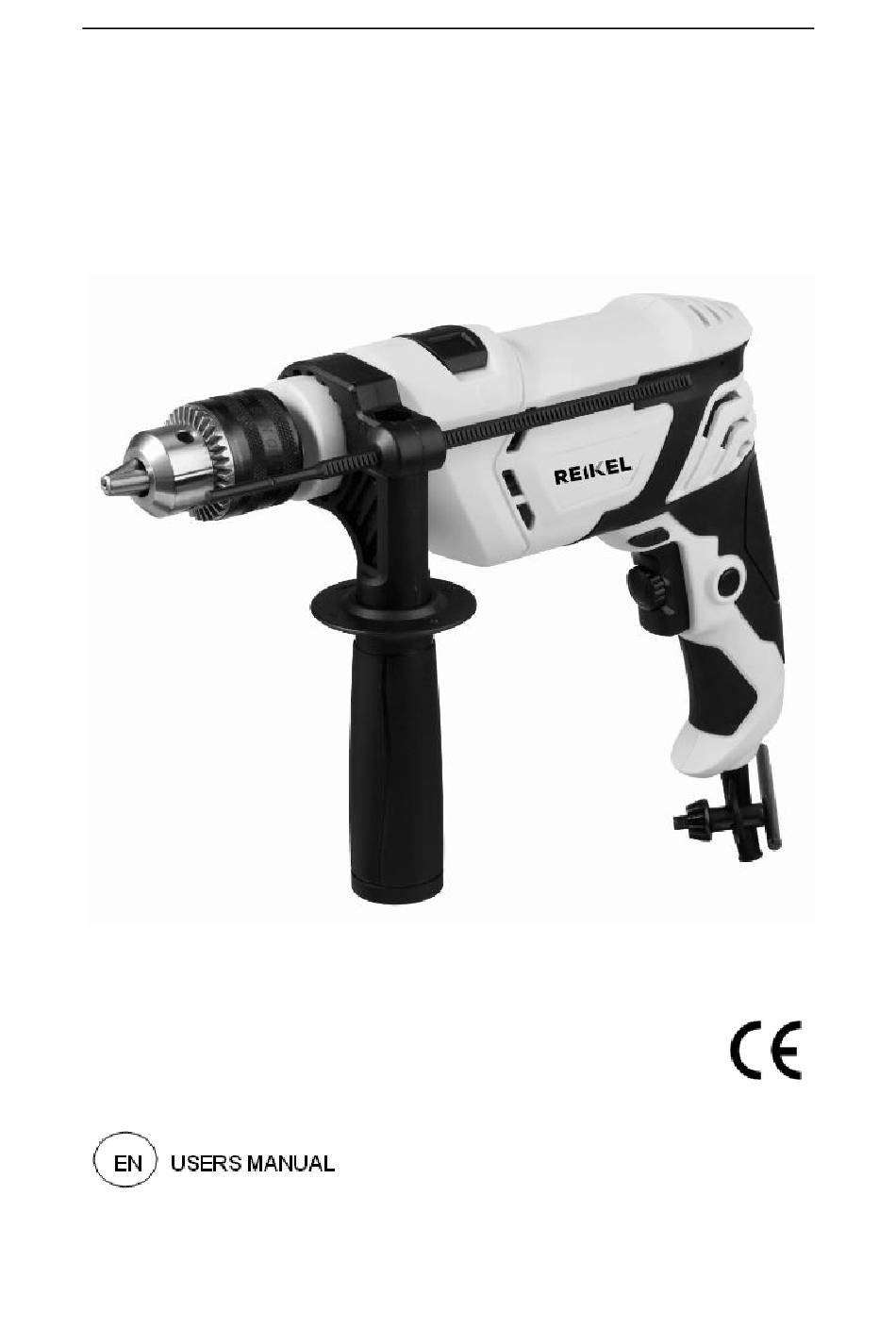

- Page 1 Original Instructions ID716 Impact Drill Made in China 2015...
- Page 2 Original Instructions Fig.1 Tighten Release Fig. 2 Fig.3 Clockwise Anticlockwise Fig. 4 Fig.5 Fig.6...
- Page 3 Original Instructions GENERAL SAFETY RULES WARNING Read all safety warnings and instructions. Failure to follow all the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 4 Original Instructions outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Page 5 Original Instructions 4) Power tool use and care a) Do not force the power tool. Use the correct power for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 6 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING IMPACT DRILL Wear ear protectors with impact drills. Exposure to noise can cause hearing loss. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
- Page 7 Original Instructions area. Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: Hand-arm vibration syndrome if its use is not adequately managed.
-
Page 8: Table Of Contents
Do not use machine attachments for works other than those for which they are designed for! All other applications are expressly ruled out. 1. MACHINE DATA Technical specification: ID716 Type designation Impact Drill Rated voltage 230-240V~ 50Hz... - Page 9 Original Instructions -- in wood 25mm Level of sound pressure L =3dB(A)) XX dB(A) Level of sound power L =3dB(A)) XX dB(A) Impact drill into concrete: =XXXXXm/s h,ID Level of vibration (K=1.5m/s Drill into metal: =XXXXXm/s Note: that the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;...
-
Page 10: Safety Symbols
Original Instructions Fig. 1 1. Chuck 2. Plastic Depth gauge 3. Function switch 4. Auxiliary handle 5. Lock-on button 6. ON/OFF switch 7. Forward/Reverse switch 8. Variable speed dial 9. Key 2. SAFETY SYMBOLS Explanation of symbols In this manual and/or on the machine the following symbols are may used: Read instructions carefully In accordance with essential applicable safety standards of European directives Class II machine –... -
Page 11: Assembly
Original Instructions 3. ASSEMBLY Install drills Fig. 2 When selecting a drill, use the right type for your job. For best performance, always use sharp drills. WARNING: Failure to unplug the drill could result in accidental starting causing possible serious personal injury. To insert a drill bit, proceed as follows: ... -
Page 12: Use
Original Instructions Fig. 4 For forward (clockwise) rotation, push the forward / reverse switch to the position of diagram. For reverse (counterclockwise) rotation, push the forward / reverse switch to the position of diagram. WARNING: Although an interlock prevents reversing the tool while the motor is running, allow it to come to a full stop before reversing. - Page 13 Original Instructions Hole drilling When attempting to drill a large diameter hole, it is sometimes best to start with a smaller drill bit then work up to the required size. This prevents overloading the drill. WARNING! Many accidents occur because of unforeseeable situations. Please pay attention that drilling-out a small hole may cause the drill bit to jam in the hole, especially when drilling metal.
-
Page 14: Service & Maintenance
Original Instructions Mark off the centre of the hole using a centre punch. Use a suitable lubricant for the material you are working on. Begin drilling at a very low speed to prevent the bit from slipping off the starting point. Always clamp sheet metal. - Page 15 Original Instructions All the bearings in this tool are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions, therefore no further lubrication is required. Environment This symbol indicates that TESCO participate in the environment protection in applying the directive WEEE 2012/19/EU.
