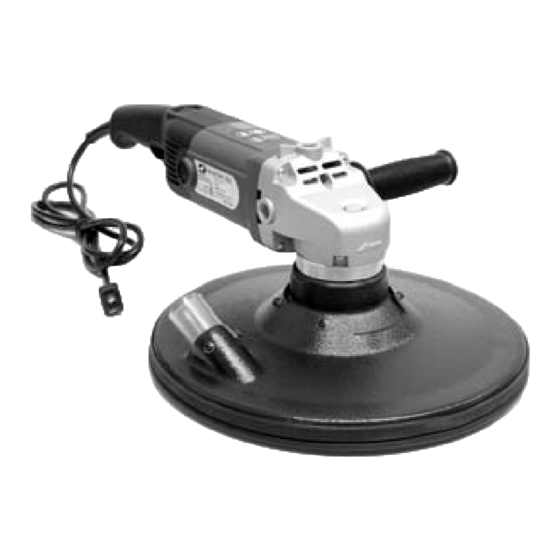

Dynabrade 51612 Safety, Operation And Maintenance

11" Random Orbital Sanders
Electronic Variable Speed
Models:
51612 - Non-Vac
- 0-3,000 RPM Dial
- Variable Speed On/Off Switch
- 120V
51613 - Central-Vac (1-1/4" Port)
- 0-3,000 RPM Dial
- Variable Speed On/Off Switch
- 120V
Read and understand this tool manual before operating your tool. Follow all safety rules for the protection of operating personnel as well
as adjacent areas. For safety information, refer to Code of Federal Regulation – CFR 29 Part 1910, European Committee for Standards (EN)
Hand Held Electric Motor Operated Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
Some dust created by grinding, drilling, and other construction activities contain chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Caution: Hand, wrist and arm injury may result from repetitive work, motion and overexposure to vibration.
Tool Intent: Dynabrade Random Orbital Sander for sanding, leveling solid surfaces, fillers, etc.
WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and /or serious personal injury.
Work Area
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which ignite
the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.
Electrical Safety
1. Double Insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in
any way. Double Insulation
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
3. Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts.
Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
SAFETY LEGEND
WARNING
WARNING
WARNING
GENERAL SAFETY RULES
SAVE THESE INSTRUCTIONS
eliminates the need for the three wire grounded power cord and grounded power supply system.
WARNING
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Electric shock hazard. Avoid bodily contact with
grounded objects, bodies of water.
Do not damage cord set.
WARNING
(continued on next page)
Parts Page Reorder No. PD05•28
Effective July, 2005
Supersedes PD05•08
WARNING
WARNING
WARNING
C US
