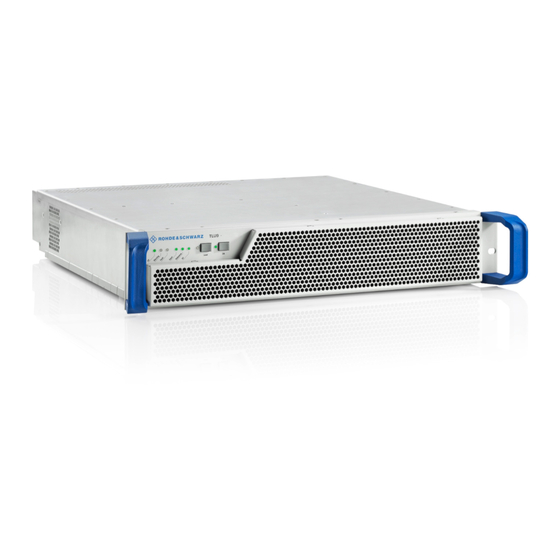

Rohde & Schwarz TLx9 Series System Manual

Transmitter system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
R&S
TLx9
Transmitter System
System Manual
(I6ÀÊ2)
2506506002
For information only!
This manual, dated July 9, 2018 reflects the
technical status as of that date. There may
have been technical changes since that time.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLx9 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz TLx9 Series

Summary of Contents for Rohde & Schwarz TLx9 Series

  • Page 1 ® R&S TLx9 Transmitter System System Manual For information only! This manual, dated July 9, 2018 reflects the (I6ÀÊ2) technical status as of that date. There may 2506506002 have been technical changes since that time.
  • Page 2 ® This manual describes the following R&S TLx9 models: ● ® R&S TLx9 (2506.5001.10), 1HU, 15/10/5 W ● ® R&S TLx9 (2506.5001.20), 2HU, 200/100/50/25 W The software contained in this product uses several valuable open source software packages. For information, see the "Open Source Acknowledgment"...
  • Page 3 Quality management Certified Quality System ISO 9001 and environmental Certified Environmental System management ISO 14001 Sehr geehrter Kunde, Dear customer, Cher client, Sie haben sich für den Kauf You have decided to buy a Vous avez choisi d’acheter un eines Rohde & Schwarz Produk- Rohde &...
  • Page 5 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...

  • Page 9: Table Of Contents

    ® Contents R&S TLx9 Contents 1 Information about this Manual..............7 2 Safety Instructions.................9 Safety Instructions for Transmitter Systems and Equipment........9 General Safety Instructions..................10 2.2.1 Basic Safety Instructions....................10 Special Hazard Information..................17 2.3.1 Hazards from AC Supply Voltage..................17 2.3.1.1 AC Power Supply......................17 2.3.1.2 Changing Fuses......................
  • Page 10 ® Contents R&S TLx9 3.1.4.11 GapFiller Board......................38 3.1.4.12 TSP901 (Transmitter Status Panel) of 1HU device ............39 3.1.4.13 TSP901 (Transmitter Status Panel) of 2HU device............40 3.1.4.14 TDU901 (Transmitter Display Unit)................41 3.1.4.15 Power Amplifier Module....................42 3.1.4.16 Power Supplies......................43 3.1.4.17 Capacitor Backup Battery.....................
  • Page 11 ® Contents R&S TLx9 3.2.2.5 Preparing RF Carrier Loop....................61 3.2.2.6 Connecting User Interface.................... 61 3.2.2.7 Connecting AC Power Supply..................62 Commissioning R&S TLx9..................62 Annex....................63 A R&S TLx9 Interface Description............63 Base unit and Exciter / GapFiller Board Interfaces..........63 A.1.1 Overview........................
  • Page 12 ® Contents R&S TLx9 System Manual 2506.5060.02 ─ 03...

  • Page 13: Information About This Manual

    ® Information about this Manual R&S TLx9 1 Information about this Manual This manual is part of the documentation for the R&S TLx9 transmitter family from Rohde & Schwarz. The individual manuals for the transmitter family have a modular structure and complement each other. Structure The system manual, which is the central and overarching part of the overall documen- tation, describes all the steps involved in installing a transmitter.
  • Page 14 ® Information about this Manual R&S TLx9 System Manual 2506.5060.02 ─ 03...

  • Page 15: Safety Instructions

    ® Safety Instructions R&S TLx9 Safety Instructions for Transmitter Systems and Equipment 2 Safety Instructions 2.1 Safety Instructions for Transmitter Systems and Equipment Compliance with safety regulations The safety regulations specified in this manual must always be complied with. The following points require special attention: ●...

  • Page 16: General Safety Instructions

    ® Safety Instructions R&S TLx9 General Safety Instructions tions on working with hazardous products (coolant) must be observed; see the sec- tion "Material Safety Data Sheets" under "EC Safety Data Sheet – Antifrogen". 2.2 General Safety Instructions This section contains general safety instructions applying to all products manufactured or sold by Rohde &...
  • Page 17 ® Safety Instructions R&S TLx9 General Safety Instructions basic knowledge of English. It must therefore be ensured that only skilled and special- ized staff or thoroughly trained personnel with the required skills are allowed to use the product. If personal protective equipment is required for using Rohde & Schwarz prod- ucts, this will be indicated at the appropriate place in the product documentation.
  • Page 18 ® Safety Instructions R&S TLx9 General Safety Instructions words in connection with unrelated products or documentation can result in misinter- pretation and in personal injury or material damage. Operating conditions, operating positions and operating locations The product may be operated only under the operating conditions, in the operation positions and at the operating locations specified by the manufacturer, without the pro- duct's ventilation being obstructed.
  • Page 19 ® Safety Instructions R&S TLx9 General Safety Instructions 3. Intentional interruption of the protective conductor either along the feed line or in the product itself is not permitted. Doing so can result in the danger of an electric shock from the product. If extension cables or multipoint connectors are used, they must be checked on a regular basis to ensure that they are safe to use.
  • Page 20 ® Safety Instructions R&S TLx9 General Safety Instructions 14. Use suitable overvoltage protection to ensure that no overvoltage (such as that caused by a bolt of lightning) can reach the product. Otherwise the person operat- ing the product will be exposed to the danger of an electric shock. 15.
  • Page 21 ® Safety Instructions R&S TLx9 General Safety Instructions 6. In the event of fire, toxic substances (gases, fluids, etc.) can be discharged from the product and damage the health of personnel. If a fire occurs, appropriate meas- ures must therefore be taken (e.g. breathing masks and protective clothing). 7.
  • Page 22 ® Safety Instructions R&S TLx9 General Safety Instructions remains safe to use, always replace cells or batteries with the appropriate Rohde & Schwarz type (see the replacement parts list). 8. Cells and batteries must be recycled and kept separate from residual waste. Accu- mulators and batteries that contain lead, mercury or cadmium must be disposed of as hazardous waste.

  • Page 23: Special Hazard Information

    ® Safety Instructions R&S TLx9 Special Hazard Information 2.3 Special Hazard Information 2.3.1 Hazards from AC Supply Voltage All voltages of Urms > 30 V AC or U > 60 V DC must be regarded as constituting a shock hazard. When working with voltages that constitute a shock hazard, appropriate measures must be taken to prevent exposure to danger.

  • Page 24: Hazards From Rf Radiation

    ® Safety Instructions R&S TLx9 Special Hazard Information Wear suitable protective gear when necessary. ● Before opening any equipment or removing a particular cover, turn off the power supply and wait 5 minutes to ensure that capacitors have discharged sufficiently. ●...

  • Page 25: Rules When Working On An Open Amplifier

    ® Safety Instructions R&S TLx9 Special Hazard Information 2.3.3.4 Rules When Working on an Open Amplifier Operation with RF power is not permitted if the instrument has been opened or covers have been removed. System Manual 2506.5060.02 ─ 03...
  • Page 26 ® Safety Instructions R&S TLx9 Special Hazard Information System Manual 2506.5060.02 ─ 03...

  • Page 27: Transmitter System R&S Tlx9

    . With the retransmitter option it is going to support DVB-T/T2 only. Analog TV standards are not supported. The TLx9 series follows the concept of one product for all scenarios. The TLx9-plat- form is able to address the applications digital TV transmitter, digital radio transmitter for band III and GapFiller for many digital standards.

  • Page 28: Rack Design

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 ● Common Remote Management over Web-Interface and SNMP. All transmitters of one redundancy system are: – visible over the management interfaces as one system – able to be controlled, monitored and managed by the operator of the TLx9 as one system ●...

  • Page 29: Tlx9 System Applications

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-3: TLx9 front view with air filter (2 HU) It allows inserting up to two hardware option modules (Re-TX, Sat RX, 1+1 control option etc.) to adjust the configuration for several different scenarios. Figure 3-4: TLx9 back view, no options mounted (2 HU) 1 = Option slot A 2 = Option slot B...
  • Page 30 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 System Manual 2506.5060.02 ─ 03...

  • Page 31: Tlx9 Redundancy Systems

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.3 TLx9 redundancy systems The TLx9 will support a maximum of up to 8 active transmitters in an N+1 system (8+1). For system configurations (e.g. N+1) no additional external control devices are necessary.
  • Page 32 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Backup TX wit ASI feeding: System Manual 2506.5060.02 ─ 03...
  • Page 33 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 N+1 with ASI feeding (max. 8+1): System Manual 2506.5060.02 ─ 03...
  • Page 34 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 N+1 with LAN feeding (max. 8+1): System Manual 2506.5060.02 ─ 03...

  • Page 35: Modules And Devices

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4 Modules and devices 3.1.4.1 Overview Figure 3-6: Block diagram System Manual 2506.5060.02 ─ 03...

  • Page 36: Inside View (1Hu)

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.2 Inside View (1HU) Figure 3-7: Inside View (1HU) 1 = Exciter / GapFiller board 2 = Backplane 3 = Capacitor backup battery 4 = System power supply 5 = Power Amplifier module 6 = Power Amplifier power supply 7 = Fan E1...
  • Page 37 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Ref. Module Comment Part number des. Mini LAN Switch Board TLx9-M6 (Option slot B) 2109.2380.03 LAN Switch Board TCE900-M6 (Option slot B) 2109.2897.02 1+1 RF Switch Board TLx9-B59 (Option slot A/B) 2506.8598.02 PA / System Fan...

  • Page 38: Inside View (2Hu)

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.4 Inside View (2HU) Figure 3-8: Inside View, example 200 W (2HU) 1 = Fan E2 2 = Fan E1 3 = Fan E3 4 = Capacitor backup battery 5 = System power supply 6 = Power Amplifier power supply 7 = Backplane...

  • Page 39: Replaceable Modules (2Hu)

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.5 Replaceable Modules (2HU) Ref. Module Comment Part number des. EMI Filter D-SUB 9/15 Pole Filter Circuit Boards 2507.2264.02 TDK Lambda HWS150A-12 12 V system power supply 2506.7604.00 TSP901 Transmitter Status Panel...

  • Page 40: Option Keys

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.6 Option Keys Option Part number Comment Service-K0 Service Key TLX9-FACTORY TLx9-Factory TIME-CONTROL Reset time monitoring data TLx9K0 Demo key TLX9-K02 2506.9020.02 Option key SNMP TLX9-K06 2506.9065.02 Option key DTMB (Transmitter only) TLX9-K08 2506.9088.02...

  • Page 41: Material Number Assignment

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Option Part number Comment TLX9-K80 2506.9807.02 Option key SYSTEM CONTROL TLX9-K83 2506.9836.02 Option key 10 W TLX9-K84 2506.9842.02 Option key 15 W TLX9-K85 2506.9859.02 Option key 50 W 3.1.4.7 Material Number Assignment Material No.

  • Page 42: Option Boards

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 * The air filter for 1 HU TLU9 is directly installed at the device frame. 3.1.4.8 Option Boards The following table shows all possible combinations for the plug‑in of option boards: Device Option A Option B...

  • Page 43: Exciter Board

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-11: Backplane, example 2HU 3.1.4.10 Exciter Board This board provides the TLx9 Exciter functions, depending on the HW fitting variant: ● External (customer) interfaces ● Video input signal handling ●...

  • Page 44: Gapfiller Board

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-12: Exciter Board, example type Advanced 3.1.4.11 GapFiller Board The GapFiller board replaces the Exciter board for GapFiller functions. The GapFiller is integrated in the x9 transmitter family and supports all commercially available broadcast standards;...

  • Page 45: Tsp901 (Transmitter Status Panel) Of 1Hu Device

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 GapFiller Receiver: ● High performance echo cancellation algorithm: at least -25 dB echo cancellation gain ● The echo cancellation settings are automatically adapted to the specific echo situa- tion at the installation site ●...

  • Page 46: Tsp901 (Transmitter Status Panel) Of 2Hu Device

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-14: Local operation for 1HU device 3.1.4.13 TSP901 (Transmitter Status Panel) of 2HU device The TSP901 allows local operation of a transmitter and shows basic informations. Figure 3-15: TSP901 (Transmitter Status Panel) For N+1 and MultiTX transmitters, each individual transmitter has a separate TSP901, which allows local operation of the single transmitters.

  • Page 47: Tdu901 (Transmitter Display Unit)

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Reference signal (10 MHz/ PPS/GPS…) is not present and is not required, since frequency regulation source is set to "Manual" Transmitter RF OK Transmitter RF Warning Transmitter RF Fail Transmitter program off Local Transmitter Local/Remote...

  • Page 48: Power Amplifier Module

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Tip: To cancel an inadvertently selected action, slide your finger to the side away from the button highlighted orange and then lift your finger off the touchscreen. The TDU901 Touch-Screen is existing in two variants.

  • Page 49: Power Supplies

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.16 Power Supplies Fitting variants: ● 200 W PA: 12 V PS and 48 V PS and adapter card and EC11 AC connector ● 100 W PA: 12 V PS and 36 V PS and Euro AC connector ●...

  • Page 50: Asi Distribution Board

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-19: IPM2/4 Processor Board 3.1.4.19 ASI Distribution Board For distribution of ASI inputs between active and reserve TLx9 transmitter. Installed in one of the TLx9 option slots for 1+1 or N+1 configuration. Figure 3-20: ASI Distribution Board System Manual 2506.5060.02 ─...

  • Page 51: Dvb-T/T2 Receiver

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.20 DVB-T/T2 Receiver This module is a complete receiver for DVB-T and DVB-T2. Output of the module is a MPEG transport stream (ASI) and a set of measurement values (RF power, MER, BER, packet error,…).

  • Page 52: Mini Lan Switch Board

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-22: DVB-S/S2 Receiver 3.1.4.22 Mini LAN Switch Board This board is offering 4 GBit Ethernet ports. Two LEDs per interface are for signaling ● Connectivity / activity (green LED) ●...

  • Page 53: Lan Switch Board

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.4.23 LAN Switch Board This board is offering 8 GBit Ethernet ports. Two LEDs per interface are for signaling ● Connectivity / activity (green LED) ● Valid Gigabit Ethernet connection (yellow LED) Figure 3-24: LAN Switch Board 3.1.4.24 Local LAN2 Board...

  • Page 54: Rf Switch Board

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-25: Local LAN2 Board 3.1.4.25 RF Switch Board This board as a TLx9 option card is to be mounted in the redundancy device (i.e. TX B) and has no fitting variant in this module.

  • Page 55: 1+1 Rf Switch For 15W Backup Tx Systems

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-27: GapFiller Redundancy in 1+1 Systems with Single Antenna 1+1 RF Switch for 15W Backup TX Systems In this configuration, the optional ASI board is required and has to be mounted in the redundancy device (i.e.

  • Page 56: Gapfiller 1+1 15W Redundancy System With Rf Switching

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-29: RF Switch Board 3.1.4.26 GapFiller 1+1 15W Redundancy System with RF Switching In this configuration, 2 RF switch boards are required and has to be mounted in the redundancy device (i.e.

  • Page 57: Specifications

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 Figure 3-30: GapFiller 1+1 15W Redundancy System with RF Switching 3.1.5 Specifications 3.1.5.1 General Data DVB-T DVB-T2 ISDB-T Frequency range UHF band IV/V (step size 1 Hz): 470 MHz to 790 MHz Channel bandwidth 6, 7, or 8 MHz 5, 6, 7, 8 or 10...
  • Page 58 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 DVB-T DVB-T2 ISDB-T 470 to 530 MHz: ≤ 33 dBc Harmonic distance 530 to 790 MHz: ≤ 50 dBc ≤ 0.5 dB Flatness with predis- tortion ≤ 1.65 VSWR at RF Output (for VSWR ≥...
  • Page 59 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 DVB-T DVB-T2 ISDB-T Cooling system Air-cooled Max. installation alti- 2000 m (above sea level) tude Operating temperature +1 °C to +45 °C (Technical data guaranteed) Permissible tempera- 0 °C to +50 °C (Technical data not guaranteed ture Maximum relative...
  • Page 60 ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 DVB-T DVB-T2 ISDB-T Vibration (sinusoidal) 5 Hz to 150 Hz, max. 1.8 g at 55 Hz, max. 0.5 g from 55 Hz to 150 Hz Meets DIN EN 60068-2-6 Vibration (random) 8 Hz to 500 Hz, acceleration 1.2 g (rms) Meets DIN EN 60068-2-64...

  • Page 61: Inputs

    ® Transmitter System R&S TLx9 R&S TLx9 Design and Function – R&S TLx9 3.1.5.2 Inputs DVB-T DVB-T2 ISDB-T Input signals TS over IP TS over IP TS over IP Data rate 3 Mbps to 30 Mbps 3 Mbps to 50 Mbps 32.507937 Mbps Data inputs 2 x ASI...

  • Page 62: Quality

    ® Transmitter System R&S TLx9 R&S TLx9 Installation R&S TLx9 DVB-T DVB-T2 ISDB-T Hierarchical coding included - - - - - - PAPR - - - - - - Rot. constellation - - - - - - DVB-T2 modes - - - single PLP - - - multi PLP...

  • Page 63: Unpacking Instrument

    ® Transmitter System R&S TLx9 R&S TLx9 Installation R&S TLx9 ● R&S TLx9 all-in-one transmitter system, integrated in a 19” x 1 or 2 HU housing (depending on the type) ● Short-circuit connector for X6 ● Power cable (type depending on the target country) ●...

  • Page 64: Overview Of Connectors

    ® Transmitter System R&S TLx9 R&S TLx9 Installation R&S TLx9 Please refer to the system circuit diagram for the system wiring applicable to your sys- tem. 3.2.2.1 Overview of Connectors Dependig on the transmitter type, maybe not all of the shown connectors are available. Figure 3-31: Connectors on rear panel of R&S TLx9 (left side) Figure 3-32: Connectors on rear panel of R&S TLx9 (mid) Figure 3-33: Connectors on rear panel of R&S TLx9 (right side)
  • Page 65 ® Transmitter System R&S TLx9 R&S TLx9 Installation R&S TLx9 Figure 3-34: RF output and RF monitor connectors on rear panel of R&S TLx9 Figure 3-35: Terminal supply and Mains connectors on rear panel of R&S TLx9 Signal Connection point Remarks Name/Description MAINS...

  • Page 66: Connecting Input Signals

    ® Transmitter System R&S TLx9 R&S TLx9 Installation R&S TLx9 Signal Connection point Remarks Name/Description 1PPS IN 1 PPS input REF MONITOR Reference monitor output (10 MHz or 1 PPS) TS LAN1 Transport stream Input feeding TS LAN2 Transport stream Input feeding RF_OUT RF output RF_MON...

  • Page 67: Connecting Antenna System

    ® Transmitter System R&S TLx9 R&S TLx9 Installation R&S TLx9 2. Alternatively, feed the 1 pps signal of an external reference source via X23 (1PPS 3.2.2.4 Connecting Antenna System Risk of RF burns Before connecting the antenna cable, make sure that the instrument cannot output RF at the output.

  • Page 68: Connecting Ac Power Supply

    ® Transmitter System R&S TLx9 R&S TLx9 Commissioning R&S TLx9 Rohde & Schwarz recommends the use of an double shielded RJ-45 cable which com- plies with the CAT 6 specification 3.2.2.7 Connecting AC Power Supply The instrument can be damaged by overvoltage. Make sure that the AC supply voltage provided by your local power supply network complies with the specifications of the power supply unit installed in your instrument.

  • Page 69: Annex

    ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Annex A R&S TLx9 Interface Description A.1 Base unit and Exciter / GapFiller Board Interfaces A.1.1 Overview Signal Connection point Remarks Name/Description MAINS Power supply AC input LAN REMOTE Remote LAN connection LAN LOCAL...

  • Page 70: Description

    ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Signal Connection point Remarks Name/Description RECEIVER Receiver input for Exciter / GapFiller Board RF Switch Interface to control a mechanical RF switch A.1.2 Description Table A-1: X1 - Mains Signal Name/Description Direction Value range...
  • Page 71 ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Table A-3: X6 - TX: 9-pin Sub-D socket Signal Direction Value range Connection Remarks point Name/Description 0 to + 8,9 V ± 10 % SORT1 / Position1 Bidirec- X6.1 tional...
  • Page 72 ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Table A-5: X12 - Terminal Supply: 4P connector Signal Name/Description Direction Value range Connection Remarks point 12 V DC ± 1,5 V TERMINAL SUPPLY Output X12.1 = 1.6 A max.
  • Page 73 ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Ω Table A-10: X23 – 1PPS IN: BNC jack 50 Signal Direc- Value range Connection Remarks tion point Name/Description 1PPS_EXTERN Input 3.3 V-LVTTL or TTL X23.1 Seconds pulse from external GPS...
  • Page 74 ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Signal Direction Value range Connection Remarks point Name/Description BI_DD+ Bidirectional = 670 to 820 mV X31.7 odiff BI_DD- Bidirectional = 750 mV typ. X31.8 idiff Ω...
  • Page 75 ® R&S TLx9 Interface Description R&S TLx9 Base unit and Exciter / GapFiller Board Interfaces Table A-19: X83 - RF SWITCH: 15-pin Sub-D socket Signal Direc- Value range Connec- Remarks tion tion point Name/Descrip- tion +12V ± 20 % +12V_RFSW Output X83.1 This pin is protected by a...

  • Page 76: Option Board Interfaces

    ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Signal Direc- Value range Connec- Remarks tion tion point Name/Descrip- tion OVER_VOLTAGE Input 2 states: 0 V / 12 V X83.12 Connect to 0V_RFSW is Connect to 12V_RFSW is Over Voltage Bidirec- X83.13 tional...
  • Page 77 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Table A-21: X51 - LAN2: 8-pin RJ-45 socket Signal Direction Value range Connection Remarks point Name/Description BI_DA+ Bidirectional = 670 to 820 mV X51.1 odiff BI_DA- Bidirectional = 750 mV typ.
  • Page 78 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Table A-24: X54 - LAN5: 8-pin RJ-45 socket Signal Direction Value range Connection Remarks point Name/Description BI_DA+ Bidirectional = 670 to 820 mV X54.1 odiff BI_DA- Bidirectional = 750 mV typ.

  • Page 79: Local Lan2 Board

    ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Table A-27: X57 - LAN8: 8-pin RJ-45 socket Signal Direction Value range Connection Remarks point Name/Description BI_DA+ Bidirectional = 670 to 820 mV X57.1 odiff BI_DA- Bidirectional = 750 mV typ.

  • Page 80: Dvb-T/T2 Rx

    ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Signal Direction Value range Connection Remarks point Name/Description Bidirectional -1 V to +1 V X3.J7 Differential to D4- Impedance: 100 Ω Bidirectional -1 V to +1 V X3.J8 Differential to D4+ Impedance: 100 Ω...

  • Page 81: Dvb-S/S2 Rx

    ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces A.2.4 DVB-S/S2 RX Ω Table A-32: X75 – RF IN 1: F jack 75 Signal Direction Value range Connection Remarks point Name/Description RF IN 1 Bidirectional Input: X75.1 RF input, LNB output 950 MHz to 2150 MHz -80 dBm to -10 dBm,...
  • Page 82 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Ω Table A-35: X25 – TS OUT: BNC jack 75 Signal Direc- Value range Connection Remarks tion point Name/Description ASI OUT 1 Output = 400 mV to 800 X25.1 ASI output 75 Ω...
  • Page 83 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Signal Direction Value range Connection Remarks point Name/Description A1[3] Output X36.1.A26 CI1 addr 3 A1[2] Output X36.1.A27 CI1 addr 2 A1[1] Output X36.1.A28 CI1 addr 1 A1[0] Output X36.1.A29 CI1 addr 0 D1[0] Bidirectional X36.1.A30...
  • Page 84 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Signal Direction Value range Connection Remarks point Name/Description WAIT1 Output X36.1.A59 INPACK1 Output X36.1.A60 REG1 Output X36.1.A61 MOVAL1 Input X36.1.A62 CAM data out MOSTRT1 Input X36.1.A63 CAM data out MDO1[0] Input X36.1.A64 CAM data out...
  • Page 85 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Signal Direction Value range Connection Remarks point Name/Description MCLKI2 Output X36.2.A20 CAM data in A2[12] Output X36.2.A21 CI1 addr 12 A2[7] Output X36.2.A22 CI1 addr 7 A2[6] Output X36.2.A23 CI1 addr 6 A2[5] Output X36.2.A24...

  • Page 86: 1+1 Asi Distribution Board

    ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Signal Direction Value range Connection Remarks point Name/Description MDI2[4] Output X36.2.A53 CAM data in MDI2[5] Output X36.2.A54 CAM data in MDI2[6] Output X36.2.A55 CAM data in MDI2[7] Output X36.2.A56 CAM data in MCLKO2 Input X36.2.A57...
  • Page 87 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Ω Table A-40: X20A – OUT: BNC jack 75 Signal Direction Value range Connection Remarks point Name/Description ASI_OUT1_ACTIV Output = 400 mV to 800 X20A.1 ASI output 1 Active (to TX A) 19.39 to 270 Mb/s Bidirectional X20A.2...

  • Page 88: Rf Switch Board

    ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces A.2.6 RF Switch Board Ω Table A-44: X60A - RF IN/OUT: SMA socket 50 Signal Direction Value range Connection Remarks point Name/Description < 20 W X60A Bidirectional X60A.1 This port can be AVG, max.
  • Page 89 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces Ω Table A-47: X60D - RF IN/OUT: SMA socket 50 Signal Direction Value range Connection Remarks point Name/Description < 20 W X60D Bidirectional X60D.1 This port can be AVG, max. used as output to 174 MHz to 790 MHz a dummy load in...
  • Page 90 ® R&S TLx9 Interface Description R&S TLx9 Option Board Interfaces System Manual 2506.5060.02 ─ 03...
