OPERATION AND FUNCTION

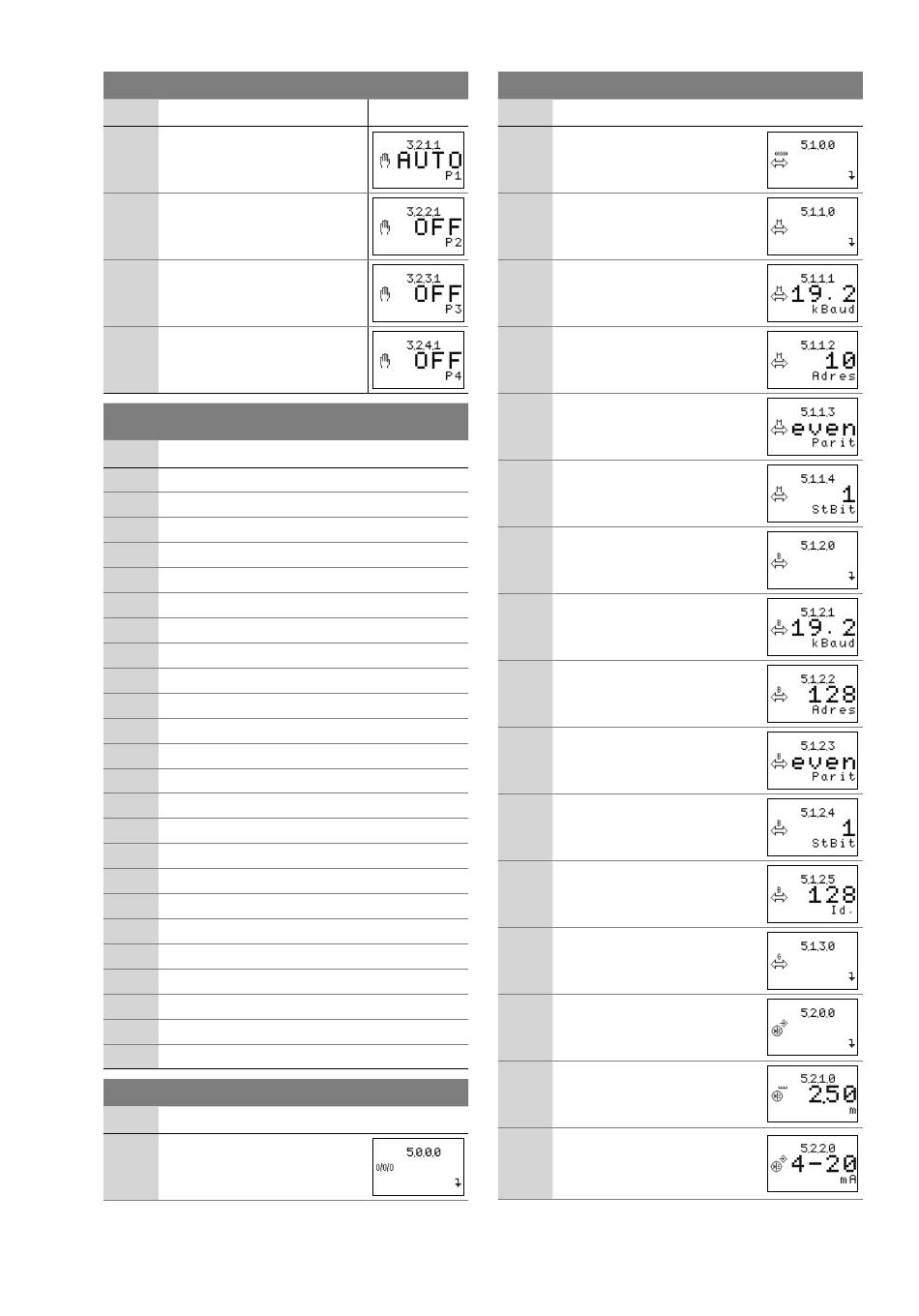

Menu 3: Pump activation
No. Description
Operating mode, pump 1
3.2.1.1 Values: OFF, MANUAL, AUTO
Factory setting: AUTO
Operating mode, pump 2
3.2.2.1 Values: OFF, MANUAL, AUTO
Factory setting: AUTO
Operating mode, pump 3
3.2.3.1 Values: OFF, MANUAL, AUTO
Factory setting: AUTO
Operating mode, pump 4
3.2.4.1 Values: OFF, MANUAL, AUTO
Factory setting: AUTO
Menu 4: Display of current settings and basic switchgear
data
No. Description
4.1.0.0 Current operating values
4.1.1.0 Current level
4.1.2.0 Current control values
4.1.2.1 Base-load pump on
4.1.2.2 Base-load pump off
4.1.2.3 Peak-load pump 1 on
4.1.2.4 Peak-load pump 1 off
4.1.2.5 Peak-load pump 2 on
4.1.2.6 Peak-load pump 2 off
4.1.2.7 Peak-load pump 3 on
4.1.2.8 Peak-load pump 3 off
4.1.4.0 Limit values
4.1.4.1 Dry-running protection level
4.1.4.2 High water alarm level
4.2.0.0 Operating data
4.2.1.0 Total running time of the system
4.2.2.x Running time of the individual pumps
4.2.3.0 Unit switching cycles
4.2.4.x Switching cycles of the individual pumps
4.3.0.0 Details of switchgear
4.3.1.0 Switchgear type
4.3.2.0 Serial number (as ticker format)
4.3.3.0 Software version
4.3.4.0 Firmware version
Menu 5: Basic switchgear settings
No. Description
5.0.0.0 Basic settings
Installation and operating instructions Wilo-Control SC-L
Menu 5: Basic switchgear settings
Display No.
5.1.0.0 Communication
5.1.1.0 Modbus
Baud rate
5.1.1.1 Values: 9.6, 19.2, 38.4, 76.8
Factory setting: 19.2
Slave address
5.1.1.2 Value range: 1 to 247
Factory setting: 10
Parity
5.1.1.3 Values: even, non, odd
Factory setting: even
Stop bits
5.1.1.4 Values: 1, 2
Factory setting: 1
5.1.2.0 BACnet
Baud rate
5.1.2.1 Values: 9.6, 19.2, 38.4, 76.8
Factory setting: 19.2
Slave address
5.1.2.2 Value range: 1 to 255
Factory setting: 128
Parity
5.1.2.3 Values: even, non, odd
Factory setting: even
Stop bits
5.1.2.4
Values: 1, 2
Factory setting: 1
BACnet instance device ID
5.1.2.5
Value range: 0 to 9999
Factory setting: 128
5.1.3.0 GSM**
5.2.0.0 Sensor settings
Measurement range
5.2.1.0
Value range: 0 to 12.50
Factory setting: 2.50
Display
Sensor type
Values: 0-10 V, 2-10 V, 0-20 mA,
5.2.2.0
4-20 mA
Factory setting: 4-20 mA
Description Display
