Installation
and
Maintenance
Manual
INVERTER-DRIVEN
MULTI-SPLIT SYSTEM
HEAT PUMP
AIR CONDITIONERS
Type
TIWM006B21S
TIWM008B21S
TIWM012B21S
Wall Mount
TIWM015B21S
TIWM018B21S
TIWM024B21S
TIWM030B21S
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
INSTALLING THIS HEAT
PUMP AIR CONDITIONER.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Model
P5417052

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIWM006B21S and is the answer not in the manual?

Questions and answers

Related Manuals for York TIWM006B21S

Summary of Contents for York TIWM006B21S

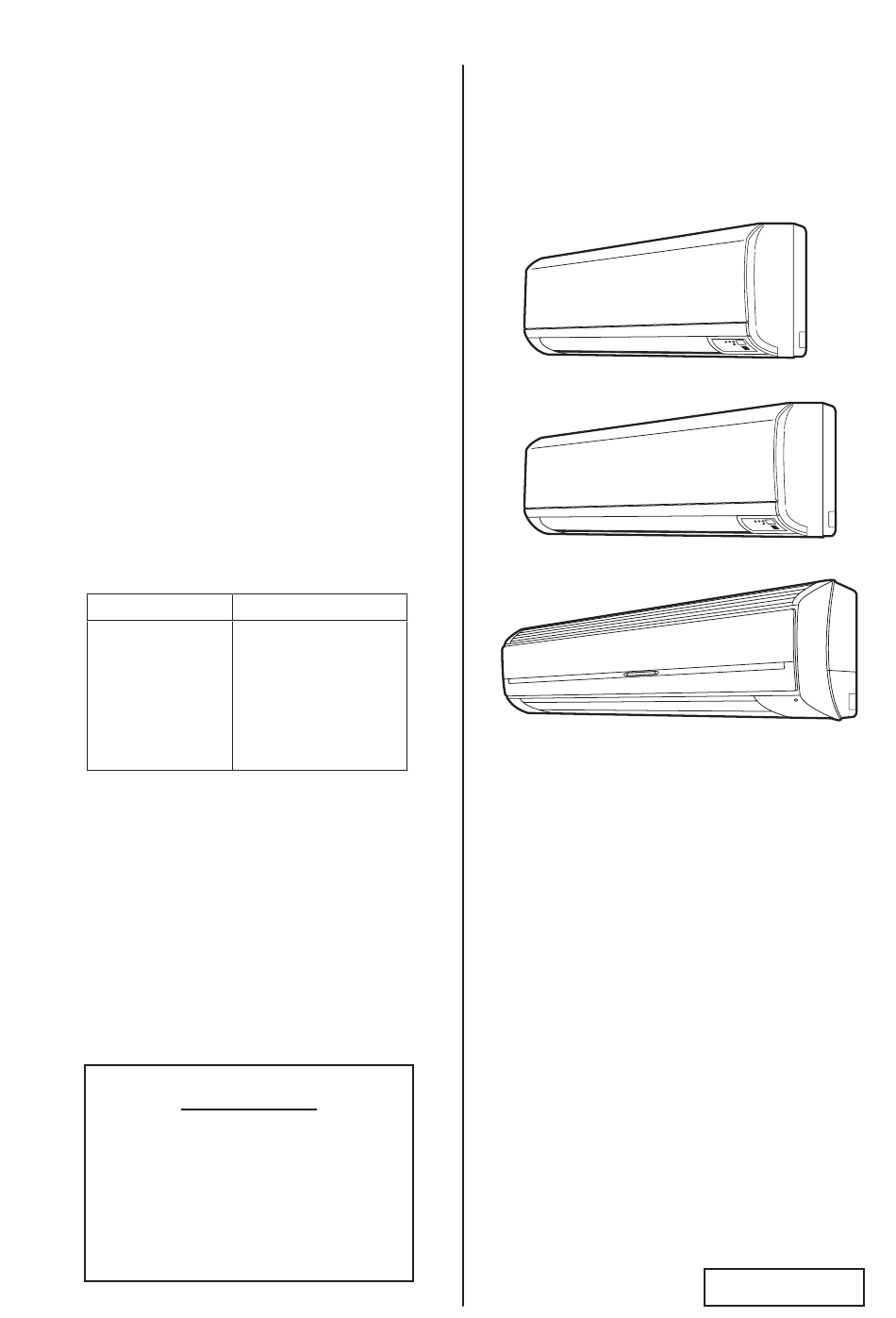

  • Page 1 Installation Maintenance Manual INVERTER-DRIVEN MULTI-SPLIT SYSTEM HEAT PUMP AIR CONDITIONERS Type Model TIWM006B21S TIWM008B21S TIWM012B21S Wall Mount TIWM015B21S TIWM018B21S TIWM024B21S TIWM030B21S IMPORTANT: READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLING THIS HEAT PUMP AIR CONDITIONER. KEEP THIS MANUAL FOR FUTURE REFERENCE.
  • Page 2 ATTENTION Each model number and all matching model numbers within a system must have the same version of software. Follow these steps to verify that your product model numbers have the same version of software. • Access the main printed circuit board in each product. •...
  • Page 3 Important Notice ● Johnson Controls Inc. pursues a policy of continuing improvement in design and performance in its products. As such, Johnson Controls Inc. reserves the right to make changes at any time without prior notice. ● Johnson Controls Inc. cannot anticipate every possible circumstance that might involve a potential hazard. ●...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..............................1 2. Safety Instructions ............................1 3. Before Installation ............................7 3.1 Combination of Outdoor Unit and Indoor Unit ..................7 3.2 Transportation and Handling ........................7 3.3 Factory-Supplied Accessories ........................7 4. Installation Location ............................9 5. Installation Work ............................10 5.1 Installation ............................10 5.2 Working Procedure ..........................13 5.2.1...

  • Page 5: Introduction

    Introduction Read following sections carefully before installing this product. Read over the "Installation and Maintenance Manual" for the outdoor unit as well. Forward this information, and the warranty to all installers and users. Ask end users to maintain copies for future reference. (Refrigerant Piping Work) (Electrical Wiring Work) (Ref.
  • Page 6 ● Do not touch or adjust any safety devices inside the indoor or outdoor units. All safety features, disengagement, and interlocks must be in place and functioning correctly before the equipment is put into operation. If these devices are improperly adjusted or tampered with in any way, a serious accident can occur.
  • Page 7 ▫ A room: Properly insulate any refrigerant tubing run inside a room to prevent “sweating” that can cause dripping and water damage to wall and floors. ▫ Damp or uneven areas: Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the unit to prevent water damage and abnormal vibration.
  • Page 8 Refrigerant Precautions To reduce the risk of serious injury or death, the following refrigerant precautions must be followed. ● As originally manufactured, this unit contains refrigerant installed by Johnson Controls. Johnson Controls uses only refrigerants that have been approved for use in the unit’s intended home country or market.
  • Page 9 ● Clamp electrical wires securely with a cable band after all wiring is connected to the terminal block. In addition, run wires securely through the wiring access channel. ● When installing the power lines, do not apply tension to the cables. Secure the suspended cables at regular intervals, but not too tightly.
  • Page 10 ● Proper handling of this unit requires two-people. Safe handling and installing the indoor unit requires the strength of two people. Mounting the unit alone may cause injury due to fall of the unit. Although the unit may be girded with steel banding, do not use it for transportation. Avoid contact with finned surfaces of the heat exchanger as sharp edges can cause severe injury to hands and fingers.

  • Page 11: Before Installation

    Wired Controller Cables from Power 8.5. Supply Wirings Cable Band 7/16 ID (11 ID) Logo Label for Logo Label Refer to the HITACHI Brand instruction paper attached together with Logo Label for the logo labels. Logo Label YORK Brand P5417052...
  • Page 12 NOTICE The controller, and branch piping are optional accessories and are not included with the indoor unit. If necessary, please contact your contractor. (2) Do not insert or leave any foreign objects inside the indoor unit and verify that no foreign objects remain inside in the indoor unit before the installation and Test Run.

  • Page 13: Installation Location

    Installation Location Unit: inch (mm) (1) Install the indoor unit with a proper clearance around it for operation, maintenance working space and safety, as shown in the illustration at right. Unit: inch (mm) Unit Type 006 to 012 5-7/8 (150) 3-15/16 (100) Min.

  • Page 14: Installation Work

    The dimensions of the mounting plate (accessory) and the unit installation are indicated in following figures. NOTE: Install both mounting plate and air conditioning unit to conform with the drawing below. TIWM006B21S and TIWM008B21S Unit: inch (mm) Exterior Contour for Indoor Unit...
  • Page 15 TIWM012B21S Unit: inch (mm) Exterior Contour for Indoor Unit 10-1/16 15-1/16 10-3/8 Left Side of Min. Right Side of Min. 11-3/4 Service Space 3-15/16 Service Space 3-15/16 11-1/2 12-3/4 5-3/8 4-3/16 9-1/16 9-7/16 9/16 1-1/8 1-1/4 1-1/8 1-1/8 9/16 1-5/8 1-3/4 1-1/4 1-1/4 1-5/8 2-5/8 11/16...
  • Page 16 TIWM015B21S, TIWM018B21S, TIWM024B21S and TIWM030B21S Unit: inch (mm) Exterior Contour for Indoor Unit 21-1/16 17-1/16 Min. Left Side of Min. Right Side of 30-11/16 7-7/8 Service Space 3-15/16 Service Space 13-9/16 13-9/16 22-1/16 13/16 × 5 4-1/8 3-15/16 9-13/16 3-15/16 4-1/8 3-7/16 1-1/8...

  • Page 17: Working Procedure

    (5) Open the piping hole slightly lower to the outside as shown in the figure below. Wall Indoor Side 1/16 to 3/16 inch (2 to 5mm) Hole for Piping Outdoor Side Correct Mounting on Studs TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S Screw for Mounting Plate Mounting Plate Hole for...

  • Page 18: Mounting Indoor Unit Onto A Poured Concrete Wall Or Concrete Block Wall

    5.2.3 Mounting Indoor Unit onto a Poured Concrete Wall or Concrete Block Wall Attach the mounting plate to a concrete wall or a concrete block wall with screws and plugs (anchors). Install the mounting plate directly to the wall by the field-supplied plug as shown in the figure below. Mount the unit according to the plug depth specified by the manufacturer.

  • Page 19: Removing Flat Panel

    NOTICE Remove and attach the flat panel with both hands. When installing or removing the front panel, do not use excessive force as it and other portions can easily break. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S (1) Removing Flat Panel (1) Removing Flat Panel (a) Hold both sides of the flat panel and lift it up.

  • Page 20: Position Of Piping Connection

    Exterior Contour Left Rear Side Hole for Indoor Unit for Pipe and Wire Insulation Refrigerant Gas Pipe For Rear Side Piping Unit: inch (mm) Gas Piping Model Diameter TIWM006B21S 15-9/16 4-3/16 9-9/16 TIWM008B21S (12.7) (395) (107) (243) 15-9/16 4-3/16 10-5/16 TIWM012B21S (12.7)
  • Page 21 • For the pipe installation embedded in the wall, the positions for piping are as follows. Exterior Contour for Indoor Unit Unit: inch (mm) Model Refrigerant and Condensate Pipe Connection TIWM006B21S 1-3/4 25-1/8 4-3/16 2-9/16 Refrigerant and Condensate TIWM008B21S...

  • Page 22: Refrigerant Piping Work

    Refer to the "Installation and Maintenance Manual" for the outdoor unit. (2) Select the piping size from the following table. Table 6.1 Piping Size inch (mm) Model Gas Piping Liquid Piping TIWM006B21S TIWM008B21S 1/2 (12.7) 1/4 (6.35) TIWM012B21S TIWM015B21S TIWM018B21S TIWM024B21S 5/8 (15.88)

  • Page 23: Piping Connections

    Piping Connections (1) Perform the flaring work as shown below. inch (mm) Diameter -0.02 (-0.4) 1/4 (6.35) 0.36 (9.1) 3/8 (9.52) 0.52 (13.2) 0.4 ~ 0.8R 1/2 (12.7) 0.65 (16.6) 5/8 (15.88) 0.78 (19.7) (2) Use specific flare nut attached with the unit. (3) Verify that there are no scratches, burrs stuck to internal surfaces, or surface deformations at the flared opening.
  • Page 24 (11) For Left Side Piping Perform the following piping connection work. (a) It is recommended that the piping connection work be performed by 2 people: one supports the indoor unit and the other performs the piping connection. Take care not to uncouple the indoor unit from the mounting plate.

  • Page 25: Condensate Piping

    (1) Standard condensate connection is on the rear of the unit, viewed from the discharge grilles. The condensate connection can also be connected to the left side of the unit. Refer to the section 5.2.7 for details. Exterior Contour for Indoor Unit Unit: inch (mm) Model Condensate Piping TIWM006B21S Connection (VP16) 22-3/8 4-3/16 1-3/4 2-9/16 TIWM008B21S...
  • Page 26 (2) When the left side condensate connection is performed, remove the cap from the left side condensate, and then attach this cap to the right side condensate in order to change the condensate connection from the right side to the left side. If the cap is tight, carefully remove it with pliers.

  • Page 27: Electrical Wiring

    Electrical Wiring Perform electrical wiring work according to this manual and the "Installation and Maintenance Manual" for the outdoor unit. ● All electrical work must be done as outlined in this manual and in accordance with this manual. Substandard work can result in fire and damage to the unit. ● Use specified cables between units and choose the cables correctly. If not, an electrical shock or fire may occur. ● Do not open the service cover or access panel for the indoor or outdoor units without turning OFF the main power supply. It can result in an electrical shock. ● Turn OFF the main power switch of the indoor unit and the outdoor unit before attempting any electrical wiring work or a periodical check is performed. If not, it will result in an electric shock or a fire.

  • Page 28: General Check

    General Check (1) Make sure that the field-selected electrical components: (main power switches, circuit breakers, wires, conduit connectors, and wire terminals) have been properly labeled in accordance with electrical data as specified in the "Engineering Manual" for the indoor units. Make sure that the components comply with the National Electrical Code (NEC).
  • Page 29 Communication Sensitive Fuse Ampacity) Wiring Current Current Wiring Size Cable Size Current Size (Main) [mA] TIWM006B21S TIWM008B21S TIWM012B21S TIWM015B21S 208/230V 18 (0.82) 18 (0.82) 18 (0.82) 60Hz TIWM018B21S TIWM024B21S TIWM030B21S NOTES: 1) Follow local codes and regulations when selecting field wires.

  • Page 30: Electrical Wiring For Indoor Unit

    Setting DIP switches may be required, depending on the combination with the outdoor unit. (1) Connect the power supply wirings (L1 and L2) to the terminal block correctly. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S Power Supply Line Power Supply Line...

  • Page 31: Position Of Electrical Wiring Connection

    ● Make sure that the terminals do not come into contact with the electrical box. If the terminals are too close to the surface, it can result in the activation of the circuit protection, heat generation and fire at the terminal connection, and an electrical shock. (1) The electrical wiring connections at the terminal block for the indoor unit are shown in the figures below. Check the outdoor unit configuration before the wiring work begins. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S (Mp) (Mp) (Field-Wiring Connection Side)
  • Page 32 (7) The electrical wiring connection for the indoor unit is shown in the section 8.2.2 and Fig. 8.1 below. (8) If Power Supply Voltage (208V/230V) is introduced into the Communication Line: If 208V/230V are applied to the communication line at (Terminals 1 and 2 of TB2) by mistake, the fuse on the PCB for the communication line will blow.
  • Page 33 (10) Wired Controller Connections. DIP Switch PCB When the wired controller or receiver kit is used, the setting Wired of SW2 is required. Wireless Change to “Wired” . (a) Wired Controller at each unit for an individual operation setting Indoor Unit Indoor Unit Outdoor Unit Wired...

  • Page 34: Wiring Connections

    Wiring Connections The wiring connection for the indoor unit is shown below. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S (1) Insert the wires from the rear of indoor unit (1) Insert the wires from the rear of indoor unit as shown in the figure below.

  • Page 35: Conduit Connection

    Conduit Connection The conduit connection for this unit is shown below. Remove the front panel to connect the conduit. TIWM006B21S to TIWM012B21S (1) Hold both sides of the flat panel and lift it up. Open the flat panel fully and slightly extend the right arm shaft outward. After the shaft is removed from the front panel, pull the flat panel and remove it.
  • Page 36 (5) From the rear, insert the conduit for power wiring through the connecting hole on the conduit plate. Insert communication cable through the designated connecting hole (with rubber bushing), on the conduit plate. Ensure that the locknut is installed after the conduit plate as shown in the "Conduit Attachment Detail"...
  • Page 37 TIWM015B21S to TIWM030B21S (1) Hold both ends of the flat panel and lift up. Open and fully extend the flat panel and push the right arm shaft inward. After the shaft is separated from the front panel, pull the flat panel forward with the right arm shaft slightly pushed inward and remove the flat panel.
  • Page 38 (5) From rear of the unit, insert the conduit for power wiring through the connecting hole on the conduit plate. Insert communication cable through the designated connecting hole (with rubber bushing), on the conduit plate. Ensure that the locknut is installed after the conduit plate as shown in the "Conduit Attachment Detail"...
  • Page 39 TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S Secure the PVC Tube by Secure the PVC Tube by Cable Band (Accessory) Cable Band (Accessory) Communication Cable Communication Cable Power Supply Power Supply Wiring Wiring PVC Tube PVC Tube Wired Controller Wired Controller Cable Cable NOTES: • Insert the communication cable and wired controller cable into the PVC tube “VW-1 600V” (Accessory) to separate from the power supply wiring for the indoor unit.

  • Page 40: Dip Switch Settings

    (1) Turn OFF the power supply to both indoor and outdoor units before adjusting DIP switch settings. Otherwise, the settings are invalidated and do not take effect. (2) Correct DIP switch settings are shown here. Remove the panel to make these adjustments and reattach when finished. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S DIP Switch PCB (PCB2)
  • Page 41 (6) Fuse Recovery (DSW7) (This DIP switch is located at PCB1.) Factory Setting When introducing high voltage to terminals 1 and 2 of TB2, the (0.5A) fuse on the PCB is cut. In such a case, first, reconnect the wiring correctly to TB2, and then adjust the No.1 pin to ON.

  • Page 42: Function Selection By Wired Controller

    Function Selection by Wired Controller Each function can be selected with the wired controller. Refer to the “Installation and Maintenance Manual” for the wired controller and the “Engineering Manual” for details. (1) Press and hold "Menu" and "Back/Help" simultaneously for at least 3 Test Run Menu seconds during the normal mode (when unit is not operated).

  • Page 43: Setback Operation

    Function Setting Condition (Underlined Part is Factory Setting) Optional Function Selection Unit Item Automatic COOL/HEAT Operation Available Available Dual Setpoint Available Available Cooling/Heating Changeover Temperature (1.0) (1.5) (2.0) (2.5) (3.0) (0.5) Setback Temperature Adjustment (During card key removal, setpoint is set back) (2.5) (3.0) (3.5)

  • Page 44: Test Run

    9. Test Run Test Run with Wired Controller 9.1.1 Before Test Run Verify that there are no problems with the installation, and do not perform Test Run until all the following conditions have been resolved. Refer to the "Installation and Maintenance Manual" for the outdoor unit for details on Test Run operations from the outdoor unit.
  • Page 45 86°F (30°C) during the heating operation. After that, it is adjusted lower. When the “Stop” switch is engaged by the wired controller, the swing louver will close down automatically and the operation will stop. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S NOTE: Do not move the louver by hand.
  • Page 46 (d) Though temperature recordings by the thermistors are invalid during the Test Run phase, the protection devices are valid. For VRF System According to the label; “Checking Method by 7-Segment Display” affixed to the inside of the front cover of the outdoor unit, check temperature, pressure, and operation frequency, and interconnected indoor unit numbers by 7-Segment displays.

  • Page 47: Test Run With Wireless Controller

    Test Run with Wireless Controller NOTICE: ● When operating multiple indoor units simultaneously with the wireless controller, an optional receiver kit is required. (This operation is NOT available if a receiver is installed with indoor units.) ● Referring to the attached wireless controller connected to the unit, the value for “Identifying Indoor Units Installed Side by Side”...
  • Page 48 86°F (30°C) during the heating operation. After that, it is adjusted lower. When the “Stop” switch is engaged by the wired controller, the swing louver will close down automatically and the operation will stop. TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S P5417052...
  • Page 49 Change the airflow direction by “ ” or “ ” on the wired controller. Louver Louver TIWM006B21S to TIWM012B21S TIWM015B21S to TIWM030B21S (f) Though temperature readings detected by the thermistors are invalid during the Test Run phase, the protection devices are valid.

  • Page 50: Alarm Code

    Alarm Code Alarm (Troubleshooting) Code Table Code Category Nature of Problem Likely Cause Activation of a protection device Activation of the float switch; (High water level present in Indoor Unit (Float switch) the condensate pan.) A problem exists in the piping. Activation of protection device;...
