Summary of Contents for ITS Telecom VK 30.03

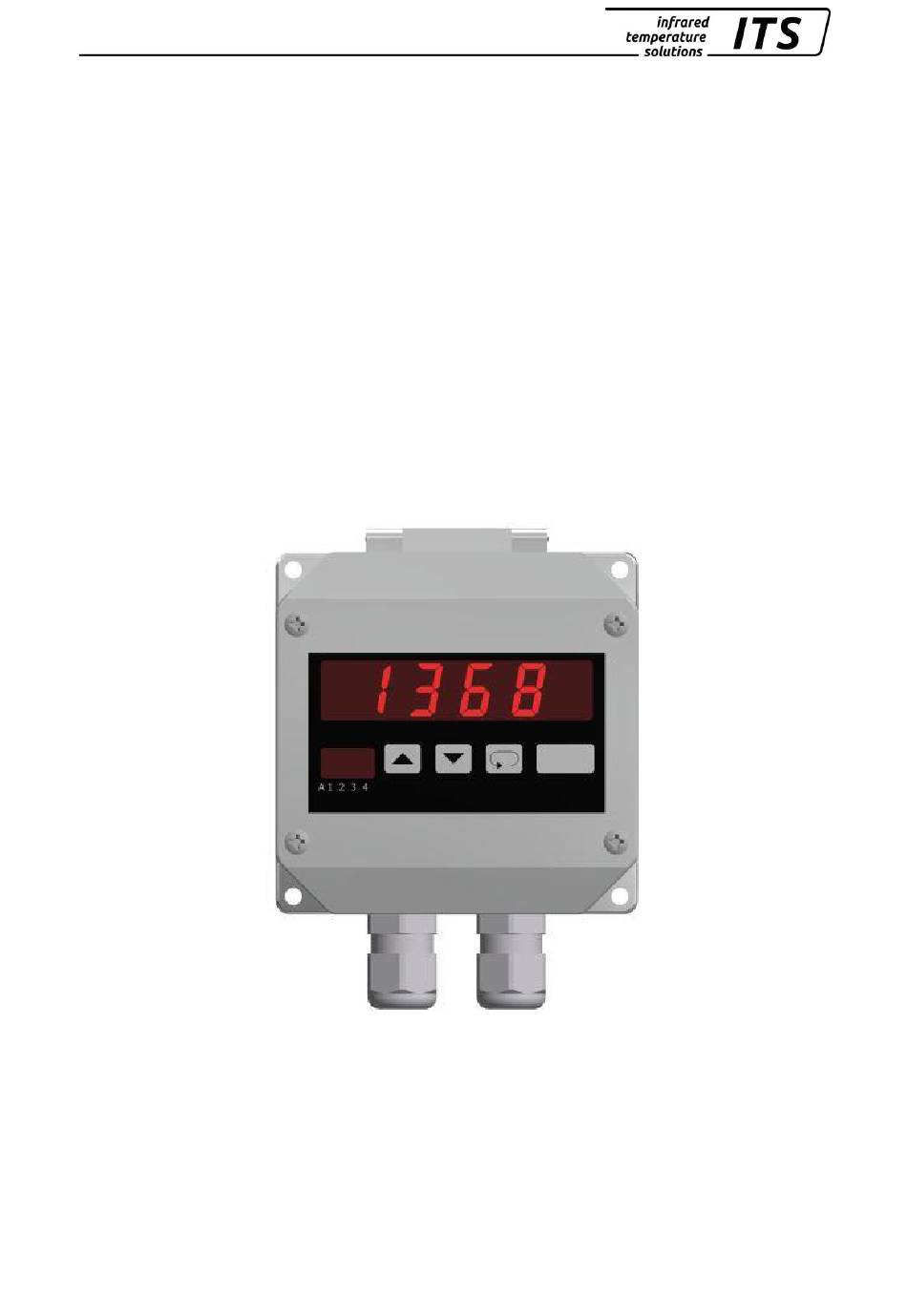

- Page 1 Operating manual VK 30.03 Material selections switch VK 30.03 Ident.-No.: 109 8756 12/2018...
-
Page 2: Table Of Contents
General ..................4 Connection ................. 4 Connection plan ..............4 Current output 4 – 20 mA ..........4 Parameterization VK 30.03 ..........6 Parameterization pyrometer PA ..........7 Configuration I/O (configuration layer: C010) ....7 Display of internal measured values ........7 Shipping, Packaging and Disposal ........... -
Page 3: Miscellaneous
Operating manual VK 30.03 Miscellaneous Information about this manual The Operating Manual shall enable the user to install the material selec- tion switch and those accessories, which are necessary. Before starting installation, be sure to read and understand this entire... -
Page 4: Copyright
Operating manual VK 30.03 Copyright This Operating Manual should be treated as confidential. It is solely in- tended for use by persons involved with the instrument. This manual may not be made available to a third party without prior Manufacturer’s consent. -
Page 5: User's Responsibility
Operating manual VK 30.03 User’s responsibility The material selection switch may only be used when it is in perfect working condition. Safety requirements The instrument works with an operating voltage of 24 VDC. The voltage re- quired for operation must be supplied by a separate power supply. This power supply unit must conform to directive IEC 61010 . -
Page 6: General
Power supply GND Current output 4 – 20 mA The material selections switch VK 30.03 has an active linear current out- put. For the connection to the PA pyrometer a 500 Ω resistor (not includ- ed in the delivery) must be installed between the analogue input of the... - Page 7 Operating manual VK 30.03 Pyrometer PA PIN 3 GN (green) Analogue output 2 /analogue input PIN 8 RD (red) L- (GND) VK 30.03 Clamp 4 Current output L – (GND) Clamp 3...
-
Page 8: Parameterization Vk 30.03
Operating manual VK 30.03 Parameterization VK 30.03 In the following example, the material selector switch for external emissivity ratio adjustment is configured with a value range from 100.0 to 110.0. Display Description Current set point value. To change the values, use the arrow keys... -
Page 9: Parameterization Pyrometer Pa
Parameterization pyrometer PA The current output 2 of the pyrometer is deactivated by default. In order to use the VK 30.03, you must parameterize the analogue output 2 as voltage input and assign it to the emissivity or emissivity ratio. -
Page 10: Shipping, Packaging And Disposal
Operating manual VK 30.03 Shipping, Packaging and Disposal Inspecting your shipment Unpack and inspect the entire shipment immediately upon receipt to make sure it is complete and undamaged. If the container/package shows visible signs of damage, please refuse the shipment. If this is not possible, accept the shipment on the condition that the freight carrier’s delivery record is noted with the extent of the... - Page 11 Operating manual VK 30.03...
