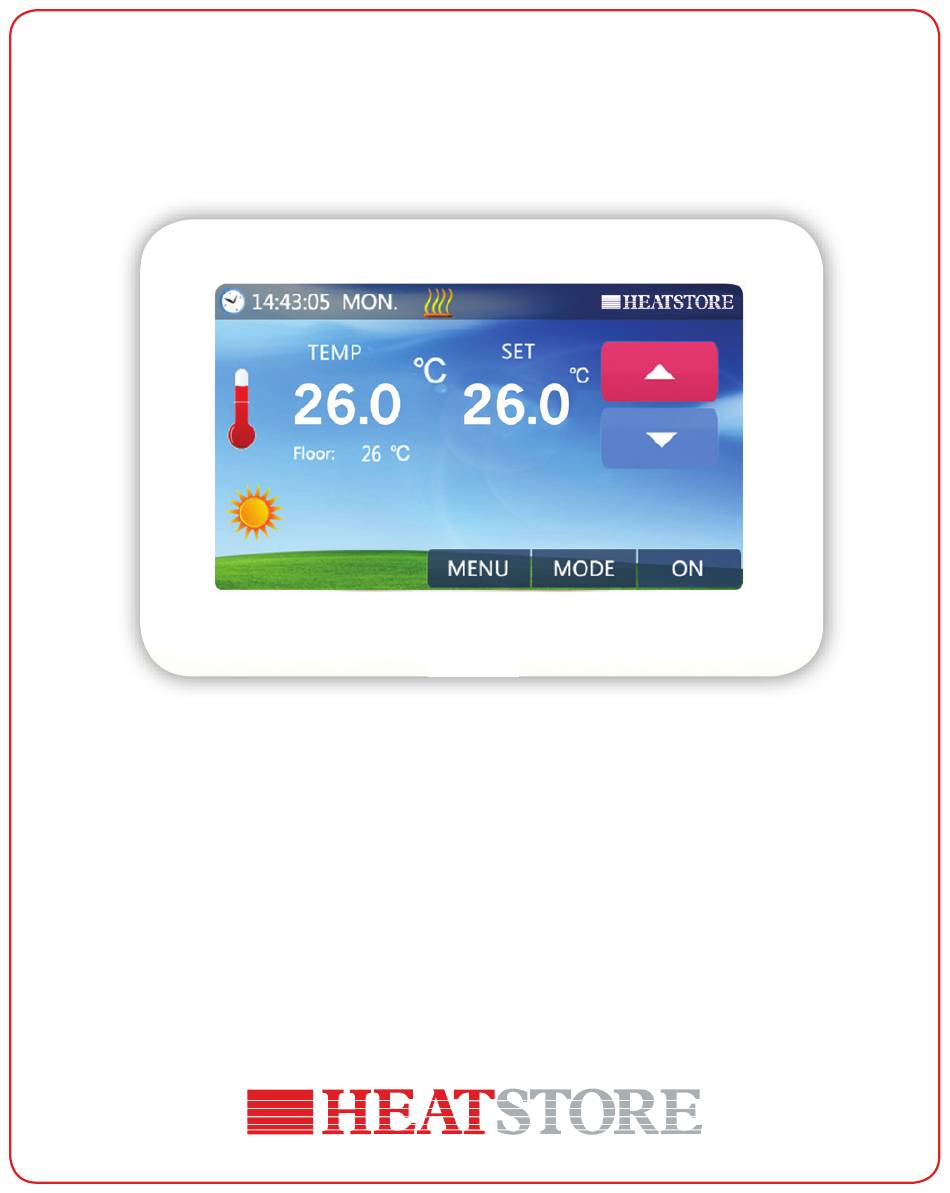

HSUFCDC Colour Touchscreen Thermostat
Installation and Operating Instructions
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC
SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY AND
RETAIN FOR FUTURE REFERENCE.
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF
THIS PRODUCT, CONSULT A COMPETENT ELECTRICIAN.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSUFCDC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heatstore HSUFCDC

Summary of Contents for Heatstore HSUFCDC

  • Page 1 HSUFCDC Colour Touchscreen Thermostat Installation and Operating Instructions IMPORTANT SAFEGUARDS WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED. PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE. IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF...

  • Page 2: Before You Begin

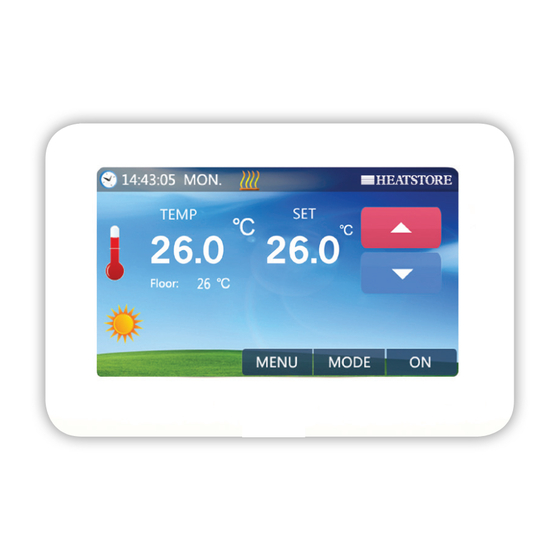

    • Do not install this thermostat in a wet zone. HSUFCDC Colour Touchscreen Thermostat HSUFCDC Colour Touchscreen Thermostat is a digital thermostat, which is designed for electric floor heating systems with a maximum load of up to 16A (3600W). The thermostat features a 4.3” colour touchscreen display and 4 languages.

  • Page 3: Wiring Diagram

    Wiring diagram Loosen the tension screws to allow the wires to be inserted and fixed. Position the cables as shown in the wiring diagram and ensure each screw is tightened correctly. Ensure system is correctly earthed. 3600W/16A 230V/AC Sensor Installation Push the three clips located on the bottom of the thermostat in with a screwdriver, releasing the face plate.
  • Page 4 Fix thermostat to the wall Align the holes in the back of the thermostat with the holes in your pre installed electrical back box and fix in place with the screws provided. Now reconnect the ribbon connection and re-seat the face plate (bottom edge first).
  • Page 5 Interface 1. On / Off button 8. Heating icon 2. Mode button 9. Weekday icon 3. Menu button 10. Ambient temperature 4. Down button 11. Clock icon 5. Up button 12. Temperature icon 6. Mode icon 13. Floor temperature 7. Set temperature 14.
  • Page 6 Icon key Menu Mode Language selection Holiday mode Press to choose one of Once selected, enables four languages ‘Holiday mode’ Pre-set temperatures Boost mode Use to define pre-set Once selected, enables temperatures ‘Boost mode’ Program review Economy mode Use to check your 5+1+1 Once selected, enables day schedule ‘Economy mode’...

  • Page 7: Schedule Settings

    Schedule settings Press Menu Button, then press to review your weekly schedule. Select Mon - Fri, Sat or Sun to edit your custom heating schedule. Example: if you want to edit Sun schedule, press Sun column to enter the edit page as shown. Every setting can be selected and edited with the buttons.

  • Page 8: Language Select

    Edit time & date Press MENU button, then button to edit date and time with buttons. Press APPLY to save the changes. Mode pre-set temp. Press Menu button, then button to select a mode. Now edit that modes temperature with buttons.

  • Page 9: Protection Settings

    Protection settings Press Menu then button to enter protection settings page. You can set Over Protection temperature & Low Protection temperature with buttons. Press APPLY to save the changes. High protection: This is an overheat protection setting designed to monitor the floor temperature and limit it to a level set by you.

  • Page 10: Parameter Settings

    Parameter settings To access parameter settings switch the thermostat OFF and immediately press for 2 seconds. You can set the desired values by pressing << or >> , and go to other pages by pressing Pre or Next. Please note the upper limit should be no higher than 28 C to conform with European regulations.
  • Page 11 Dimensions 60mm 31mm 19mm 94mm 4.3” 130mm...
  • Page 12 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. 3 Year Warranty ISSUE 1 HSUFCDC 0415 Telephone: Fax: 0117 923 5375 0117 923 5374 Victoria Road, Avonmouth, Bristol BS11 9DB www.heatstore.co.uk...
