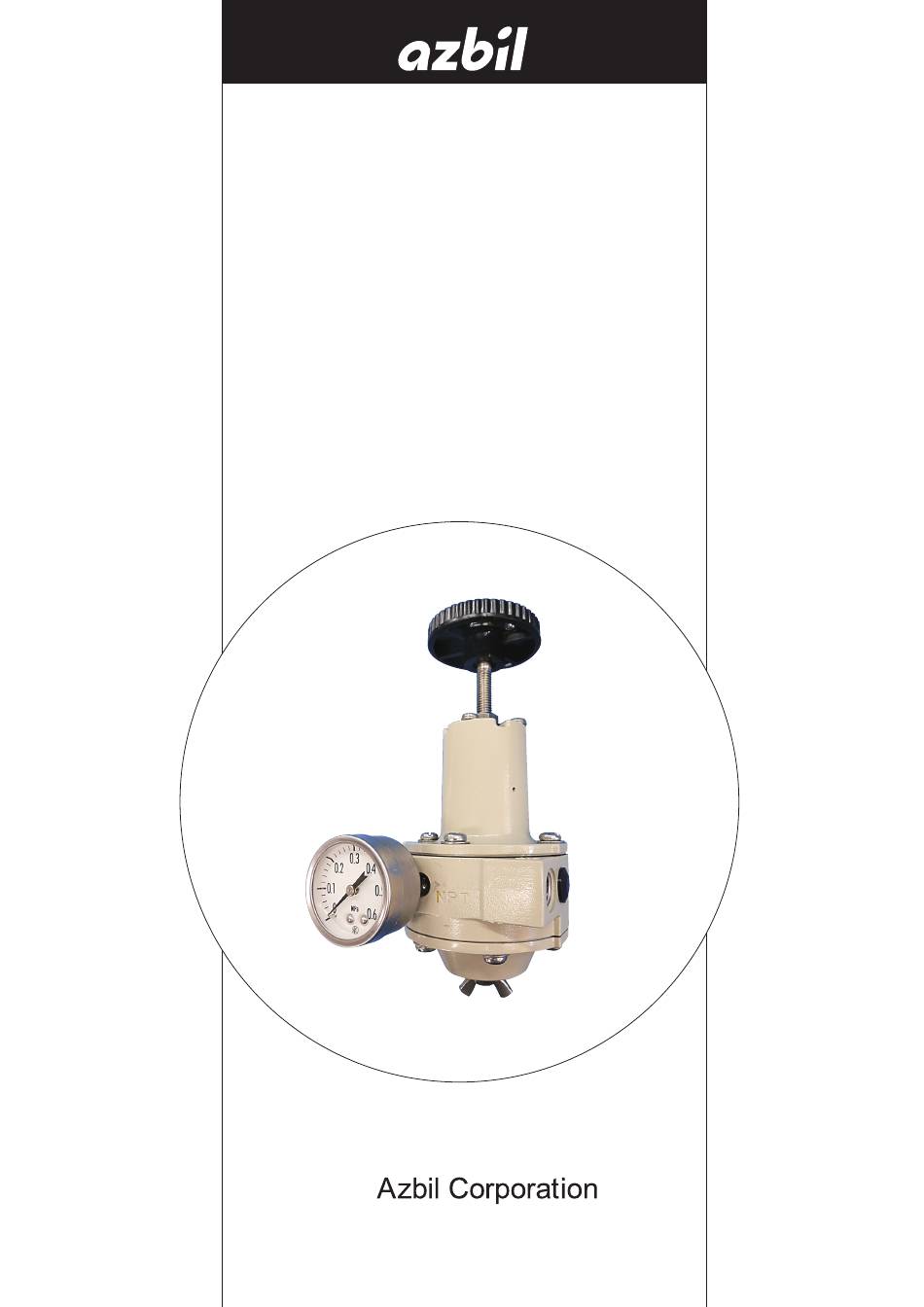

- Page 1 CM2-KZV100-2001 Pressure Regulator with Air Filter (Airset) Model: KZ03 User’s Manual...
- Page 2 In no event is Azbil Corporation liable to anyone for any indirect, spe- cial or consequential damages. The information and specifications in this document are subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents 1 : Description ..................... 1 (Refer to the illustrations on page 2) ....1 2 : Operational Principal 3 : Structure ......................2 4 : Standard Specifications .................. 3 5 : Maintenance ....................3 6 : Model Selection ....................4 7 : Dimensions and Installation ................ -
Page 5: Description

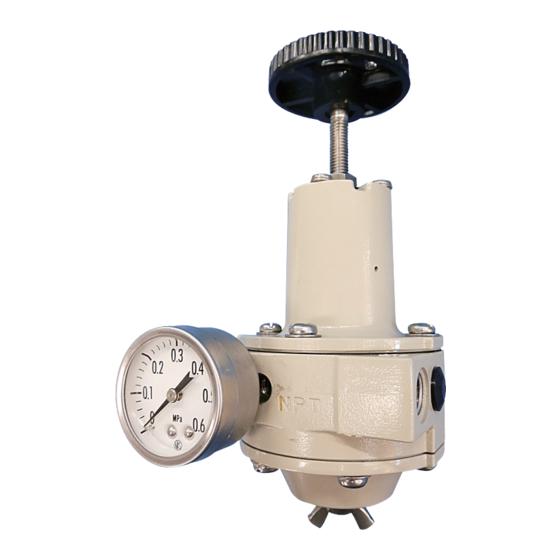

Azbil Corporation 1 : Description The Type KZ03 pressure regulator with air filter filters the supply air and regulates the output pressure for various pneumatic equipment. KZ03-1 140 kPa (image with optional gauge) KZ03-2 for Variable output (Max. 400 kPa) KZ03-3 for Variable output (Max. -
Page 6: Structure
Azbil Corporation 3 : Structure Fixed air pressure type Variable air pressure type Secondary Primary Parts Material Qty. Parts Material Qty. Aluminum diecast ADC12 1 Cap Nylon 6 11 Filter cover Stainless steel rod SUS304 2 Bonnet Aluminum diecast 12 Wing bolt... -
Page 7: Standard Specifications
Azbil Corporation 4 : Standard Specifications The Pressure Regulators with Air Filter control the air pressure so each point of use off the air line is supplied with constant air pressure. Type KZ03-1 KZ03-2 KZ03-3 Primary pressure (kPa) Secondary pressure + more than 50 (970 max.) Secondary pressure (kPa) 140 ±... -
Page 8: Model Selection
Azbil Corporation 6 : Model Selection Model Selection Optional specification selection Selection condition, specification of pressure gauge, others KZ03 -III, -IV Pressure Model Piping pressure gauge KZ03 Available supply pressure (Ps): Ps = 140 ± 4 kPa Available supply pressure (Ps): Ps ≤ 400 kPa (with pressure adjustment wheel) Available supply pressure (Ps): 400<... -
Page 9: Dimensions And Installation
Azbil Corporation 7 : Dimensions and Installation Install this device vertically (with the drain plug facing down). Air pressure output PT1/4 or NPT1/4 internal screw Air pressure input PT1/4 or NPT1/4 internal screw M4 internal screw A-A current figure 40 pressure meter 183 max. -
Page 10: Applications
Azbil Corporation 8 : Applications 1. Supplying air to field instruments and valve etc. (process control) Pressure regulator with air filter Pressure Differential regulator pressure with air filter transmitter Control valve 2. Operate air pressure cylinder compressor, motor, etc. Regulator Compressor 3. - Page 11 Azbil Corporation 4. Discarding of chips, parts cleaning, air chucking Nozzle Compressor Regulator 5. Spray gun Regulator Compressor 6. Other Air driver, nut runner, wire wrapping, etc. of auto assembly machine, and train car- door closer KZ03 - Pressure Regulator with Air Filter (Airset)
- Page 12 Warranty period and warranty scope 1.1 Warranty period Azbil Corporation’s products shall be warranted for one (1) year from the date of your purchase of the said products or the delivery of the said products to a place designated by you.
- Page 13 Although acceleration of the above situation varies depending on the conditions or environment of use of the products, you are required not to use any Azbil Corporation’s products for a period exceeding ten (10) years unless otherwise stated in specifications or instruction manuals.
- Page 15 Document Number: CM2-KZV100-2001 Document Name: Pressure Regulator with Air Filter (Airset) Model KZ03 User’s Manual Date: 1st edition: Dec. 2003 4th edition: May 2019 Issued/Edited by: Azbil Corporation...
