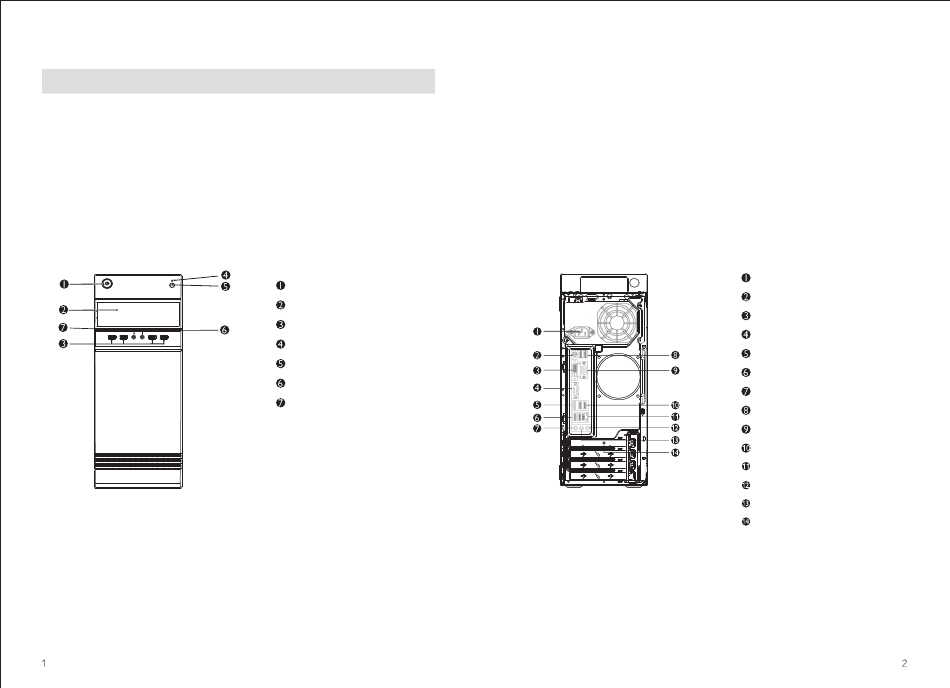

Product diagram

Please refer to the contents of the packing list for specific accessories.
If any parts are missing or damaged, please contact the dealer in time.
Host switch power supply/power indicator light
CD driver
USB interface in front (2 or 4)
Hard disk activity indicator light
Reset button
Audio microphone input in front
Audio line output in front
Note: all in kind prevail.
Connection method is for reference only. For external equipment
other than unpacking accessories, please judge its compatibility by
referring to the materials before the equipment.
The appearance of the specific product model shall be subject to the
real product. This picture is only a hint. For details, please consult
haier after-sales service or customer service.
Host power socket
PS/2 Keyboard/Mouse Port
DVI-D Port
Serial Port
HDMI Port
USB 2.0 Port
Audio microphone input(Pink)
USB 2.0 Port
VGA Port
USB 3.1 Gen 1 Port
RJ-45 LAN Port
Audio line input(Blue)
Audio line output(Green)
Combo Audio Jack
