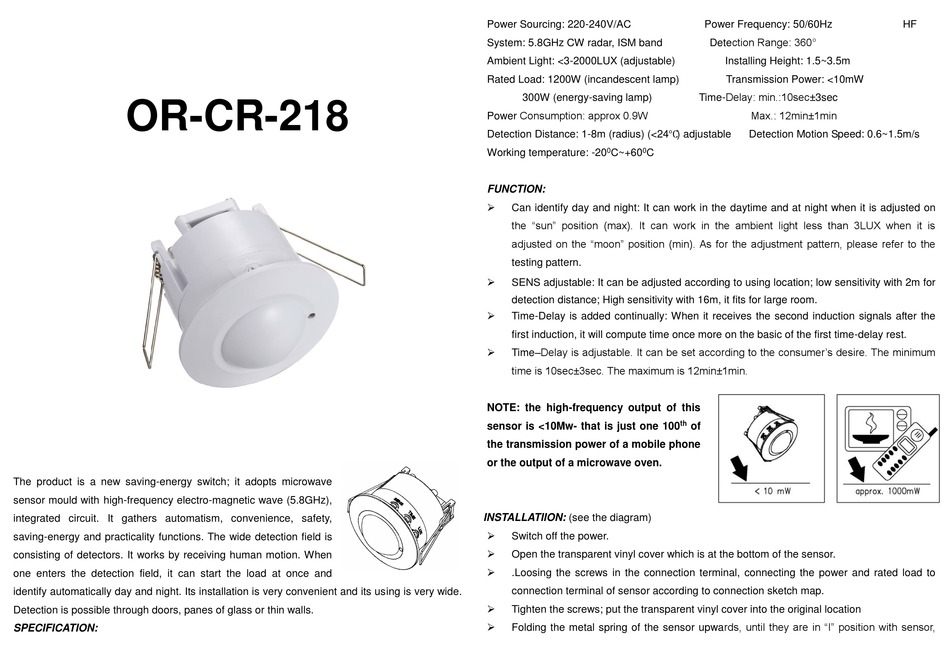

Orno OR-CR-218 Manual

OR-CR-218
The product is a new saving-energy switch; it adopts microwave
sensor mould with high-frequency electro-magnetic wave (5.8GHz),
integrated circuit. It gathers automatism, convenience, safety,
saving-energy and practicality functions. The wide detection field is
consisting of detectors. It works by receiving human motion. When
one enters the detection field, it can start the load at once and
identify automatically day and night. Its installation is very convenient and its using is very wide.
Detection is possible through doors, panes of glass or thin walls.

SPECIFICATION:

Power Sourcing: 220-240V/AC
System: 5.8GHz CW radar, ISM band
Ambient Light: <3-2000LUX (adjustable)
Rated Load: 1200W (incandescent lamp)
300W (energy-saving lamp)
Power Consumption: approx 0.9W
Detection Distance: 1-8m (radius) (<24℃) adjustable
Working temperature: -20 0 C~+60 0 C

FUNCTION:


Can identify day and night: It can work in the daytime and at night when it is adjusted on
the "sun" position (max). It can work in the ambient light less than 3LUX when it is
adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the
Testing pattern.

SENS adjustable: It can be adjusted according to using location; low sensitivity with 2m for
detection distance; High sensitivity with 16m, it fits for large room.

Time-Delay is added continually: When it receives the second induction signals after the
first induction, it will compute time once more on the basic of the first time-delay rest.
 Time–Delay is adjustable. It can be set according to the consumer's desire. The minimum
time is 10sec±3sec. The maximum is 12min±1min.
NOTE: the high-frequency output of this
sensor is <10Mw- that is just one 100
the transmission power of a mobile phone
or the output of a microwave oven.
INSTALLATIION: (see the diagram)

Switch off the power.

Open the transparent vinyl cover which is at the bottom of the sensor.

.Loosing the screws in the connection terminal, connecting the power and rated load to
connection terminal of sensor according to connection sketch map.

Tighten the screws; put the transparent vinyl cover into the original location
 Folding the metal spring of the sensor upwards, until they are in "I" position with sensor,
Power Frequency: 50/60Hz
Detection Range: 360°
Installing Height: 1.5~3.5m
Transmission Power: <10mW
Time-Delay: min.:10sec±3sec
Max.: 12min±1min
Detection Motion Speed: 0.6~1.5m/s
th
of
HF
