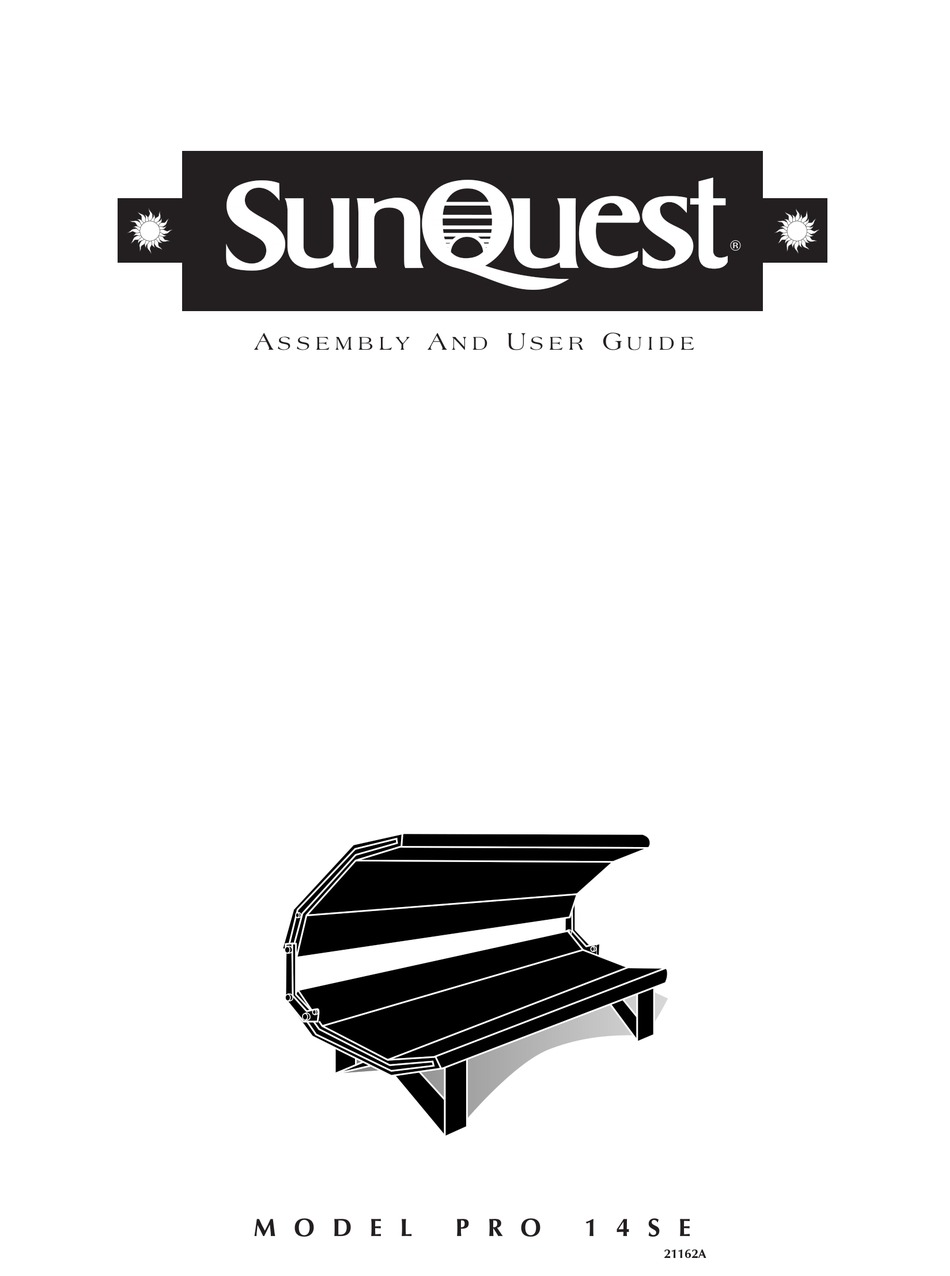

- Page 1 ¨ S S E M B L Y S E R U I D E M O D E L P R O 1 4 S E 21162A...
- Page 2 Warranty What Is Covered? SunQuest warrants your tanning unit to be free of structural defects in its material and workmanship, under normal use, for its lifetime. SunQuest will repair or replace, at their discretion, any defect to the structure which affects the performance of the unit.
-
Page 3: Table Of Contents
elcome Congratulations on your purchase of this technologically advanced sun tanning unit. It has been designed to provide years of dependable service for you. Please read all the instructions in this booklet before installing and using the unit. Always be sure to observe all safety precautions. ontents Safety Information................ -
Page 4: Safety Information
21 CFR 1040.20. Other types of eyewear may not provide adequate protec- tion. • Disconnect power cord before attempting to clean, relamp, or engage in the maintenance of this product. ONLY THE FOLLOWING LAMPS HAVE BEEN CERTIFIED FOR USE IN THE MODEL PRO 14SE: Velocity Wolff Model 71T12100W Diamond Sun S Wolff Model 71T12100W THIS EQUIPMENT MUST BE CONNECTED TO A GROUNDED OUTLET. -
Page 5: Installation
nstallation Unpacking and Inspection Your sunbed comes in two cardboard cartons, one for the bench and one for the canopy or top deck. Open the cartons and remove the bench and canopy as follows. The bench and canopy are each wrapped in plastic. With a helper, grasp the bench and pull it from the carton bottom, leaving the plastic wrap and the carton packaging. -
Page 6: Tools Required
Installation-Tools Required Tools Required You’ll need the following tools to assemble your sunbed: Utility Knife Adjustable Wrench Allen Wrench (Supplied in Hardware Box) -
Page 7: Pre-Installation Planning
Installation-Pre-Installation Planning Pre-Installation Planning Before you begin to assemble your sunbed, you should observe the following pre- installation considerations. • Your sunbed operates from a 120V ac source. You should have a NEMA 5-20R electrical outlet (like the type shown below) installed in the room in which you will use the unit. -
Page 8: Assembly Procedures
Installation-Assembly Procedures Assembly Procedures Hardware Inventory Before you begin, use the utility knife to cut open the Hardware Box and remove the small bag of hardware. In addition to a small allen wrench and pillow, make sure you have the following hardware items. Allen-Head Bolt 5/16"... - Page 9 Installation-Assembly Procedures Attaching Legs to Bench Lay the bench upside down on the floor. Locate the two legs and attach to the bench as shown below. 1. Using the 5/16" x 1" bolts and the 5/16" washers, attach the legs to the bed as shown.
- Page 10 Installation-Assembly Procedures Attaching Hinge Brackets to Bench Locate the two hinge brackets and attach to the bench as shown below. 1. Attach the left and right hinge brackets to each side of the bench as shown below, making sure that the flanges of the hinge brackets face the bed frame. Tighten the bolts on one of the brackets until seated, then an additional half turn.
- Page 11 Installation-Assembly Procedures Attaching Canopy to Bench Attach the canopy to the bench as shown below. This will require at least two people. 1. Install a pivot stud in each end of canopy as shown. Tighten with wrench until seated then an additional turn. Be sure to leave short threaded end protruding out. CANOPY PIVOT STUD...
- Page 12 Installation-Assembly Procedures Attaching Gas Springs Attach the gas springs (located in canopy box) between the canopy and the bench as shown below. You will need another person to help you lift the canopy. 1. Install a ball end on each side of canopy as shown. Tighten with wrench until seated plus an additional half turn.
-
Page 13: Making Electrical Connections
Installation-Making Electrical Connections Making Electrical Connections Make electrical connections as shown below. Warning! Be sure ac power is disconnected before connecting cables. 1. Connect the canopy to bench power cord to the bench receptacle. The plug is polarized. Align the terminals and firmly push on until seated then tighten the threaded locking ring, as shown. -
Page 14: Operation
peration Before You Tan Before using your sunbed, please note the following important precautions: • Your skin should be free of cosmetics, tanning oils, or other body lotions prior to tanning except for those specifically made for use with tanning devices. -
Page 15: Using Your Sunbed
Operation-Using Your Sunbed Using Your Sunbed Once you have read Before You Tan and Exposure Times, you are ready to use your sunbed. Proceed as follows. WARNING! Your sunbed is designed for individual use. Only one pair of protective goggles is provided. Always wear these or another approved pair of goggles. -
Page 16: Care And Maintenance
Ammonia may damage the acrylic shield. Spray the acrylic lightly with disinfectant and wipe dry with a clean soft cloth. We recommend SunQuest disinfectant and SunQuest acrylic cleaner. Thorough Periodic Cleaning... -
Page 17: Replacing Lamps
Care & Maintenance-Replacing Lamps Replacing Lamps Introduction To be assured of maximum tanning effectiveness, change lamps after approximately 800-1000 hours of use. Tanning will continue after this time but at a slower rate. To ensure trouble-free operation of your sunbed, replace the lamp starters whenever the lamps are replaced. - Page 18 Federal regulations and will void your warranty. These lamps have an average life span of 800-1000 hours of effective tanning use. Lamps used longer than that lose their effectiveness even though they will continue to light. Only the following lamp types have been certified for use in SunQuest Solariums Pro 14SE Application...
-
Page 19: Timer Maintenance
Care & Maintenance-Timer Maintenance Timer Maintenance Your SunQuest sunbed is equipped with a backup shut-off timer which will automatically turn off the sunbed in the unlikely event of a malfunction of the pri- mary timer. This important safety feature also prevents the user from re-setting the timer before the end of the pre-set maximum time interval. -
Page 20: Troubleshooting
roubleshooting Problem/Solution Chart Problem Solution Lamps fail to light 1. Check source of ac power. Reset circuit breaker or replace fuse if necessary. 2. Make sure the unit is plugged into outlet. 3. Make sure cord between canopy and bench is properly connected. -
Page 21: Obtaining Service
Indianapolis, IN 46278-2900 Have the following information ready when calling ETS to order parts or service for your bed: Date Purchased Canopy Serial Number Bench Serial Number Manufactured for SunQuest by: Spectrum Products, Inc. 6220 Churchman Bypass Indianapolis, Indiana 46203... - Page 22 NOTES...
- Page 23 NOTES...
Need help?
Do you have a question about the Pro 14SE and is the answer not in the manual?
Questions and answers
I have a Pro 14S bed. The lid lights and one base light work. One of the balasts blew a fuse. I replaced the balest. but fuses kept blowing when ever I turned the unit on
Blown fuses on a Sunquest Pro 14SE tanning bed after replacing the ballast could be caused by the following:
1. Faulty or Incorrect Ballast – Ensure the new ballast is compatible with the tanning bed and properly installed.
2. Short Circuit – Check wiring connections for any exposed or damaged wires that could be causing a short.
3. Overloaded Circuit – Verify that the tanning bed is connected to a power source that meets its electrical requirements.
4. Defective Lamp or Component – A malfunctioning lamp or other electrical component could be drawing excessive current.
5. Faulty Timer or Power Supply – If the timer system or power source is malfunctioning, it could cause electrical issues leading to blown fuses.
If the issue persists, contact an authorized service representative.
This answer is automatically generated
