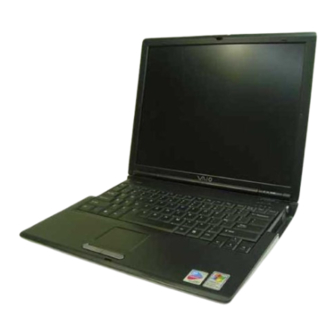

Sony VAIO VAIO VGNB100 Service Manual

Sony personal computer user manual
Hide thumbs

Advertisement

SERVICE MANUAL

Ver 5-2005D
Revision History
Area
Model
Lineup
Japanese
Japanese
VGN-B90PS∗
VGN-B100B∗
US/Canadian
American
VGN-B100∗
Latin
VGN-B150FP
VGN-B1XP
VGN-B1VP
European
AEP/UK
VGN-B3XP
VGN-B3VP
VGN-B88GP
International
VGN-B55G
Asian/
VGN-B88L
Korean
Oceania/
VGN-B55L
South Africa
VGN-B88C
Chinese
VGN-B55C
Taiwan
VGN-B55T
Thai
VGN-B55S
∗ : CTO model
9-876-389-05
VGN-B55C/B55G/B55L/B55S/B55T/B88C/B88GP/B88L
[MA]
3
[MA]
4
[MA]
4
[MA]
3
[MA]
3
[MA]
3
[MA]
3
[MA]
1
[MA]
1
[MA]
3
[MA]
3
VGN-B90PS
VGN-B100/B100B/B150FP
VGN-B1VP/B1XP/B3VP/B3XP
Design and specifications are subject to
change without notice.
PERSONAL COMPUTER

Advertisement

Table of Contents
loading

  Related Manuals for Sony VAIO VAIO VGNB100

  Summary of Contents for Sony VAIO VAIO VGNB100

  • Page 1: Service Manual

    SERVICE MANUAL Ver 5-2005D Revision History Area Model Lineup Japanese Japanese VGN-B90PS∗ VGN-B100B∗ US/Canadian American VGN-B100∗ Latin VGN-B150FP [MA] VGN-B1XP VGN-B1VP European AEP/UK VGN-B3XP [MA] [MA] VGN-B3VP VGN-B88GP [MA] International [MA] VGN-B55G Asian/ VGN-B88L [MA] Korean Oceania/ VGN-B55L [MA] South Africa VGN-B88C [MA] Chinese...
  • Page 2 Sony, VAIO and CLIE are trademarks or registered service instructions. trademarks of Sony. Microsoft, Windows, Windows Media, Outlook, Bookshelf and other Microsoft...
  • Page 3: Table Of Contents

    Section Title CHAPTER 1. SPECIFICATIONS 1-1. Specifications ... 1-1 1-2. CTO Information ... 1-2 CHAPTER 2. BLOCK DIAGRAM ... 2-1 CHAPTER 3. FRAME HARNESS DIAGRAM ... 3-1 CHAPTER 4. EXPLODED VIEWS AND PARTS LIST Palmrest P-1 ... 4-2 Main Board M-1 ...
  • Page 4: Chapter 1. Specifications

    1-1. Specifications VGN-B90PS∗ PM 755,745,725,CM350 ChipSet 855GME 14.1SXGA+, 14.1XGA 80GB,60GB,40GB MEMORY(On board) 512MB, 256MB MEMORY(Slot) - /512MB /1536MB QUANTITY[STANDARD/MAX] OPT-DRIVE DVD+-RW,Combo(24) AC adaptor VGP-AC16V8 Battery PCGA-BP2V Wireless-LAN Bluetooth XP Pro *1)512MB(On board)+1GB(slot) /512MB(On board)+512MB(slot) /512MB(On board)/256MB(On board) VGN-B88GP VGN-B88L PM715 PM715 ChipSet 855GME...
  • Page 5: Cto Information

    1-2. CTO Information 1. VGN-B90PS (Japanese Area) Model name:VGN-B90PS(Japanese Area) OS:Windows XP Pro Ver.1.0 MBX-123(M512) A-1090-871-A COMPLETED PWB MBX-123(M512) PM755 6-706-559-01 IC RH80536GC0412MSL7EM 80GB A-1068-138-A ASSY HDD 80GB (-21) (H,40) (S) 14.1SXGA+ A-8114-655-A LCD (UNIT) (14SXGA+) (S) 512MB Memory 6-705-096-01 IC HYS64D64020HBDL-6-C DVD+-RW Opt.Drive...
  • Page 6 2. VGN-B100B/B100 (American Area) Model name:VGN-B100B Model Number:PCG-5B1L(With W-LAN),PCG-5B2L(Without W-LAN) OS:Windows XP Pro Ver.1.0 MBX-123(M512) MBX-123(M256) A-1090-871-A A-1090-872-A COMPLETED PWB MBX-123(M512) COMPLETED PWB MBX-123(M256) PM755 PM745 6-706-559-01 6-600-306-01 IC RH80536GC0412MSL7EM IC RH80536GC0332MSL7EN 100GB 80GB A-1083-188-A A-1068-138-A HDD (MHU2100AT-100GB) (S) ASSY HDD 80GB (-21) (H,40) (S) 14.1SXGA+ 14.1XGA A-8114-655-A...
  • Page 7: Chapter 2. Block Diagram

    BLOCK DIAGRAM MBX-123 ATF0 Clock ADM1032 Gen. on board memory SO-DIMM 256Mbytes (333MHz) 512Mbytes (33MHz) Debug EEPROM (password) Brd.2 IFX-369 Configurable TouchPad Internal KeyBoard devices I/F connectors CHAPTER 2. 14 SXGA+ PentiumM / CeleronM 14 XGA (400MHz) CNX-281 LVDS GMCH 855GME HUB Link Ether...
  • Page 8: Chapter 3. Frame Harness Diagram

    FRAME HARNESS DIAGRAM Side L NETWORK MEMORY STICK Rear LCD UNIT ANL-55 INVERTER UNIT BOARD SIDE A AUDIO IN AUDIO OUT HARNESS CN5600 (WITH LAN CONNECTOR) LCD HARNESS FFC (ANL-MBX) iLINK MOUNT FFC (USB-MBX) CN2650 PC CARD PC CARD CONNECTOR FFC (IFX-MBX) KEYBOARD TOUCH PAD...
  • Page 9: Palmrest

    EXPLODED VIEWS AND PARTS LIST The parts list is compiled by blocks of a palmrest and bottom • etc.The sections of the parts list are different depending on the model.Please refer to list of ontents shown in the below. Section Page Palmrest P-1 ...
  • Page 10 P-1. Palmrest 28 ( 1) ( 2) W-LAN model only VGN-B100/B100B/B150FP (AM) VGN-B1VP/B1XP/B3VP/B3XP VGN-B55C/B55G/B55L/B55S/B55T/B88C/B88GP/B88L (AO) Confidential VGN-B90PS (J) (EU)
  • Page 11 P-1. Palmrest Ref.No. Part No. Description 2-176-357-01 HOLDER TOUCHPAD (HTA) 1-797-073-11 TOUCH PAD 1-829-803-11 FLEXIBLE FLAT CABLE (8PIN) 1-829-804-11 FLEXIBLE FLAT CABLE(12PIN) A-1090-581-A T/P SW BOARD(S) [CHG] X-2050-121-1 A-1090-607-A HOUSING PALMREST ASSY (HPA)(S) A-1090-580-A LED SW M/S BOARD(S) 1-962-037-11 HARNESS (RJ11) A-1082-151-A 1-829-805-11 FLEXIBLE FLAT CABLE(40PIN)
  • Page 12 M-1. Main Board 320 ( 1) W-LAN model only 28 ( 1) VGN-B100/B100B/B150FP (AM) VGN-B1VP/B1XP/B3VP/B3XP VGN-B55C/B55G/B55L/B55S/B55T/B88C/B88GP/B88L (AO) Confidential VGN-B90PS (J) (EU)
  • Page 13 M-1. Main Board Ref.No. Part No. Description FILAMENT TAPE(12x30) ( 1) 1-818-752-11 PCCARD CONNECTOR FRAME 2-176-480-01 INSULATOR PRCON (MB) 2-345-177-01 BRACKET PCMCIA(MB) 2-176-465-01 PLATE MEMO (MB) 2-176-471-01 SHEET THERMAL (MEMO) 1-787-244-11 FAN,DC 4-671-506-01 GASKET (FAN) 2-190-257-01 STAND OFF D 2-176-476-01 HEAT SINK (CPU) 4-668-785-02 THERMAL SHEET CPU...
  • Page 14 B-1. Bottom 28 ( 1) W-LAN model only 28 ( 1) 28 ( 1) QSI Model [MA] Pioneer Model VGN-B100/B100B/B150FP (AM) VGN-B1VP/B1XP/B3VP/B3XP VGN-B55C/B55G/B55L/B55S/B55T/B88C/B88GP/B88L (AO) Confidential VGN-B90PS (J) (EU)
  • Page 15 B-1. Bottom Ref.No. Part No. Description FILAMENT TAPE(12x30) ( 1) A-1090-572-A BASE DISPLAY(HBA)(S) 2-176-449-01 BRACKET DSUB (BTM) A-1090-874-A MOUNTED PWB CNX-281(S) 1-829-801-11 FLEXIBLE FLAT CABLE (14PIN) [CHG] 2-176-367-11 1-500-227-31 BEAD, FERRITE 2-345-848-01 BRACKET ETHER(BTM) 1-963-259-21 HARNESS,CONNECTOR WITH A-1090-873-A MOUNTED PWB ANL-55(S) 1-829-800-11 FLEXIBLE FLAT CABLE (12PIN) [CHG]...
  • Page 16 L-1. LCD 14.1-inch SXGA+ - Made by To - 1003 1005 1002 1004 1002 1020 1001 1005 1014 1007 1019 ( 1) 1018 ( 1) 1012 1006 28 ( 1) 1008 28 ( 1) 1009 1017 1015 1016 1013 W-LAN model only 1010 1011...
  • Page 17 L-1. LCD 14.1-inch SXGA+ - Made by To - Ref.No. Part No. Description FILAMENT TAPE(12x30) ( 1) 1001 X-2023-027-1 HOUSING BEZEL ASSY (HBEA) 1002 A-1090-605-A & CUSHION OVAL (HBEA)(S) 1003 A-1090-604-A LEVER LATCH (HBEA)(S) 1004 A-1090-606-A COIL SPRING, COMPRESSION(S) [CHG] 4-671-043-21 1005 2-176-460-01...
  • Page 18 L-2. LCD 14.1-inch XGA - Made by Hi - 1003 1005 1002 1002 1020 1001 1005 1014 1101 1019 ( 1) 1018 ( 1) 1012 1104 1004 28 ( 1) 1009 1017 B19 B20 4-10 1015 28 ( 1) 1016 1102 1013 1103...
  • Page 19 L-2. LCD 14.1-inch XGA - Made by Hi- Ref.No. Part No. Description FILAMENT TAPE(12x30) ( 1) 1001 X-2023-027-1 HOUSING BEZEL ASSY (HBEA) 1002 A-1090-605-A & CUSHION OVAL (HBEA)(S) 1003 A-1090-604-A LEVER LATCH (HBEA)(S) 1004 A-1090-606-A COIL SPRING, COMPRESSION(S) [CHG] 4-671-043-21 1005 2-176-460-01 &...
  • Page 20 L-3. LCD 14.1-inch XGA - Made by CPT - 1003 1005 1002 1004 1002 1020 1001 1005 1014 1201 1019 ( 1) 1018 ( 1) 1012 1204 28 ( 1) 1202 28 ( 1) 1009 1017 4-12 1015 1016 1013 W-LAN model only 1203...
  • Page 21 L-3. LCD 14.1-inch XGA - Made by CPT- Ref.No. Part No. Description FILAMENT TAPE(12x30) ( 1) 1001 X-2023-027-1 HOUSING BEZEL ASSY (HBEA) 1002 A-1090-605-A & CUSHION OVAL (HBEA)(S) 1003 A-1090-604-A LEVER LATCH (HBEA)(S) 1004 A-1090-606-A COIL SPRING, COMPRESSION(S) [CHG] 4-671-043-21 1005 2-176-460-01 &...
  • Page 22 A-1. Accessories 2001 2009 AC Adaptor Adaptor Conversion Plug 3P 2002 [MA] 2010 Battery Pack Power Cord 2003 [MA] Power Cord 2004 Power Cord 2005 Power Cord [MA] 2006 Power Cord [MA] 2007 Power Cord 2008 Power Cord Ref. No. Part No. Description 2001 1-478-860-21 $...
  • Page 23: Chapter 5. Others

    5-1. The Barcode Label The hatched portion of the barcode label is used as the repair data. [MBX-123 Board] (Side A) [LCD Unit] (Rear) CHAPTER 5. OTHERS [Keyboard Unit] (Rear) [Drive] (Top) [W-LAN Card] [MODEM Card] [HDD (HITACHI/IBM)] (Top) [HDD (TOSHIBA)] (Top) [HDD (FUJITSU)] (Top)
  • Page 24: Replacing The Cpu

    5-2. Replacing the CPU 1. How to remove the CPU 1 Rotate the lock with a flat-blade screwdriver toward the unlock position shown in the figure. 2 Remove up the CPU. lock position unlock position 2. How to install the CPU 1 Position the mark on the CPU to the mark on the CPU socket and put in all pins to the holes on the CPU socket.
  • Page 25 Sony Corporation -25- This manual and the constituent data may not be replicated, copied nor reprinted in whole or in part without prior written authorization of Sony Corporation. English / Japanese 2005D2700-1 © 2005 Sony Corporation Published by Sony EMCS NAGANO TEC...
  • Page 26: Revision History

    Revision History Suffix Ver. Date Ver. 1 2004.09.27 First Edition Ver. 2 2004.10.08 Front Page (Model Lineup), Page 1-1, Page 4-1, Page 4-3, Page 4-5, Page 4-7, Page 4-14, Back Cover Ver. 3 2004.10.25 Front Page, Page 4-3, Page 4-7, Page 4-9, Page 4-11, Page 4-13, Back Cover Ver.
